Home >> Mercury >> 2005 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> RH Puddle Lamp Without Memory Mirrors C622

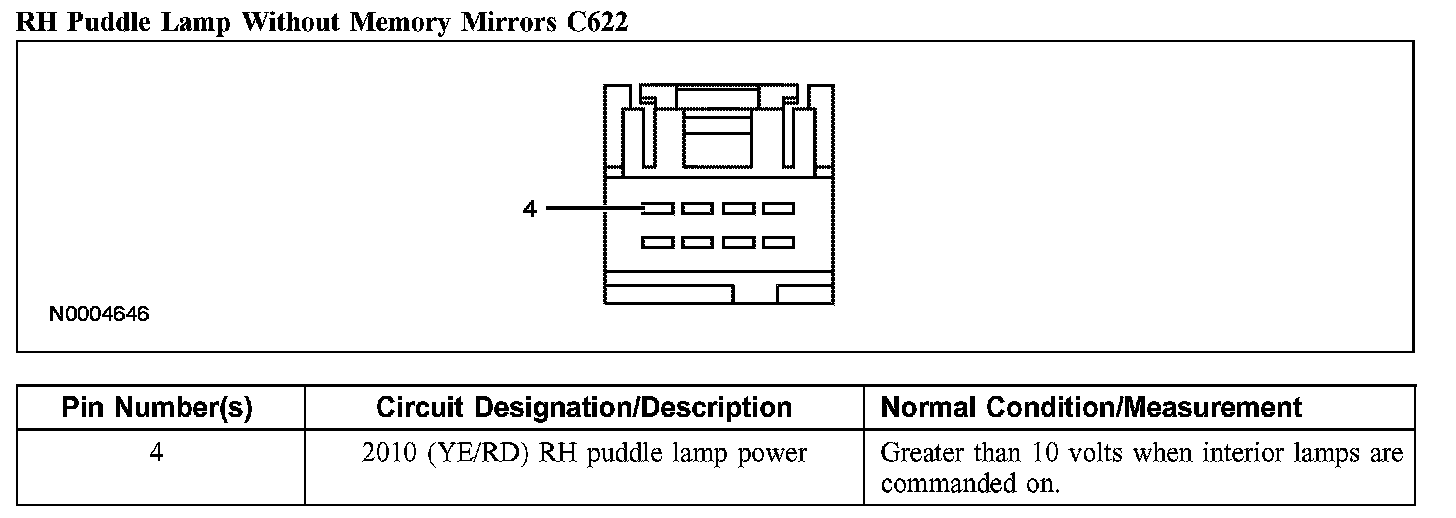

RH Puddle Lamp Without Memory Mirrors C622

RH Puddle Lamp Without Memory Mirrors C622:
