Home >> Mercury >> 2005 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Overhead Console With Roof Opening Panel C930

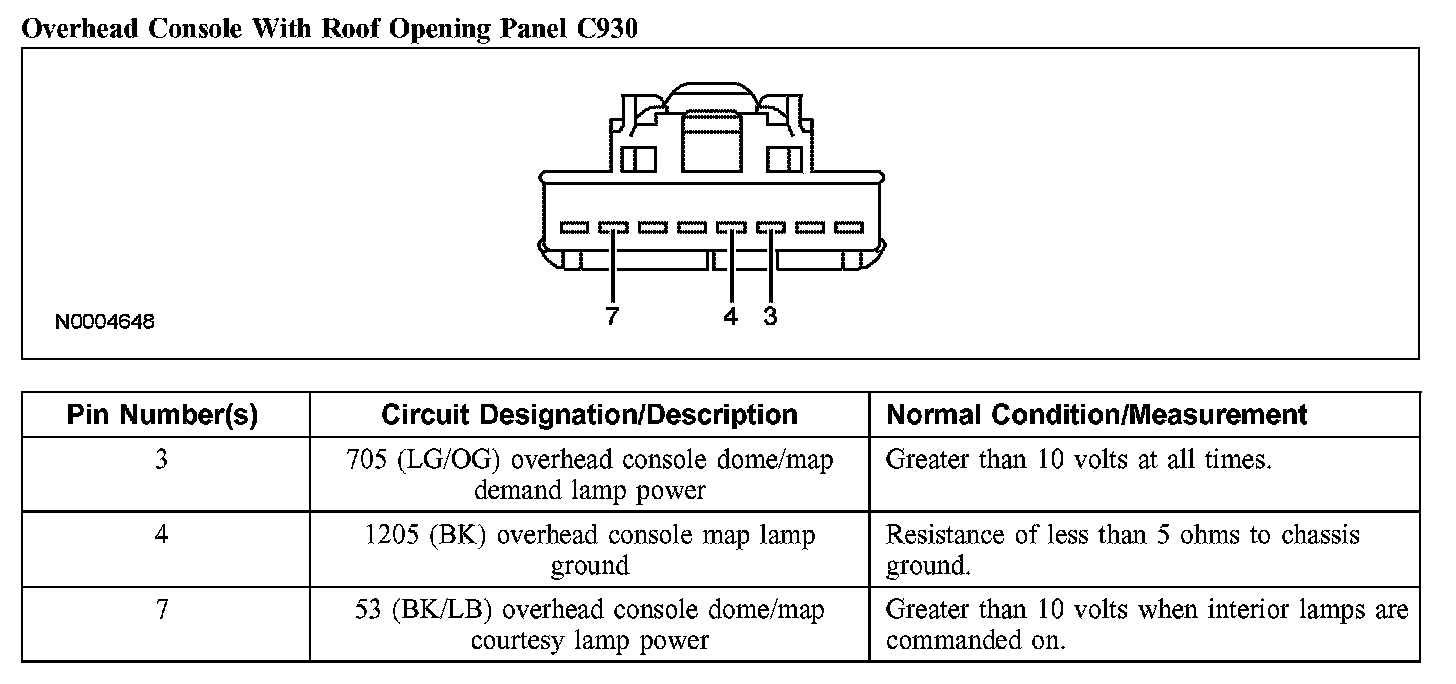

Overhead Console With Roof Opening Panel C930

Overhead Console With Roof Opening Panel C930:
