Home >> Mercury >> 2005 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> LH Rear Door Ajar Switch C715

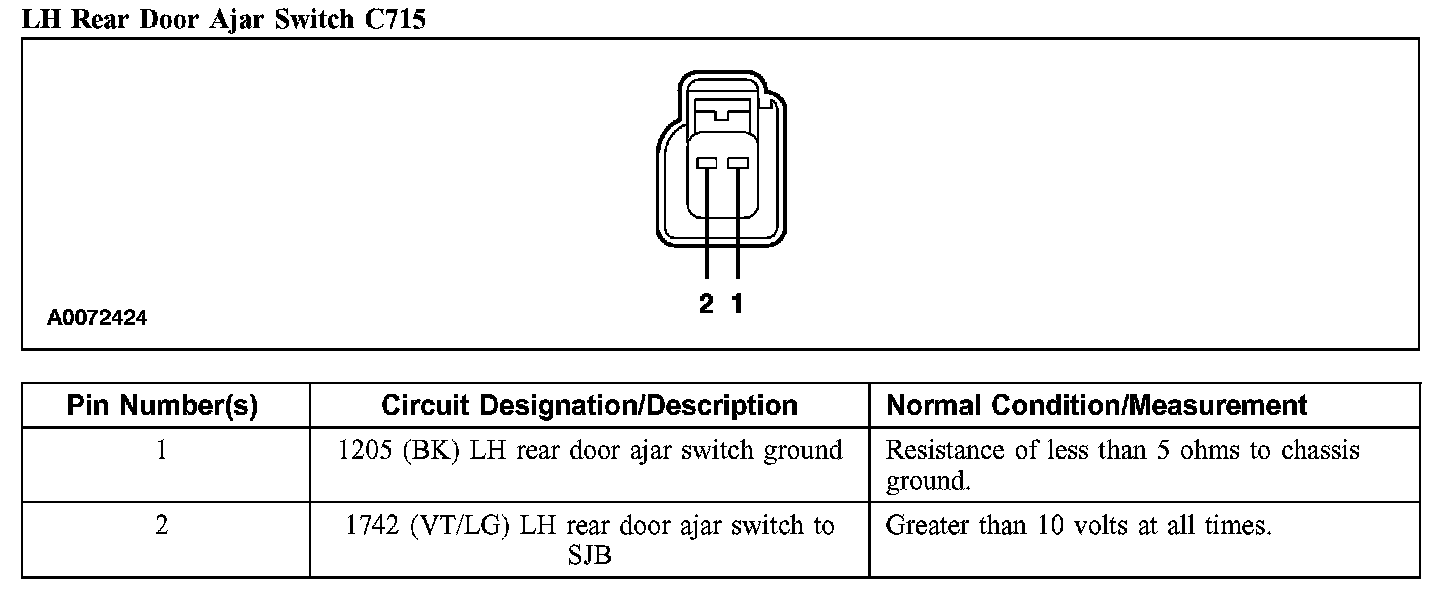

LH Rear Door Ajar Switch C715

LH Rear Door Ajar Switch C715:
