Home >> Mercury >> 2005 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Decklid Ajar Switch C4302

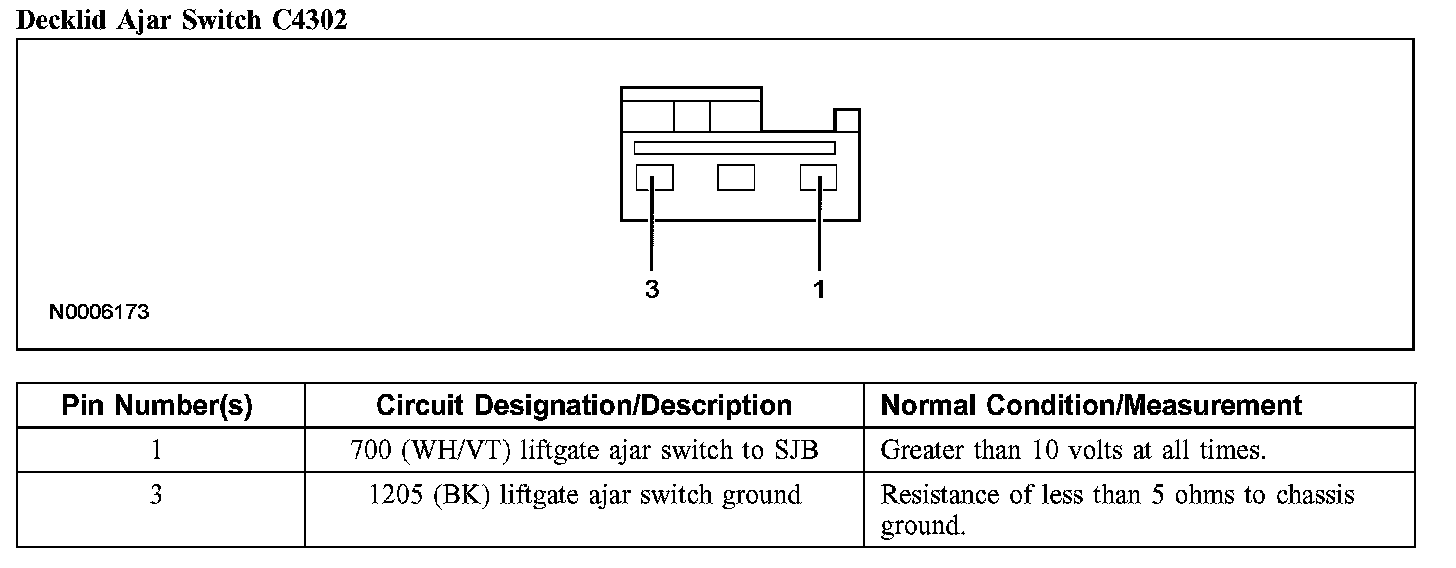

Decklid Ajar Switch C4302

Decklid Ajar Switch C4302:
