Center Mounted Brake Lamp: Service and Repair

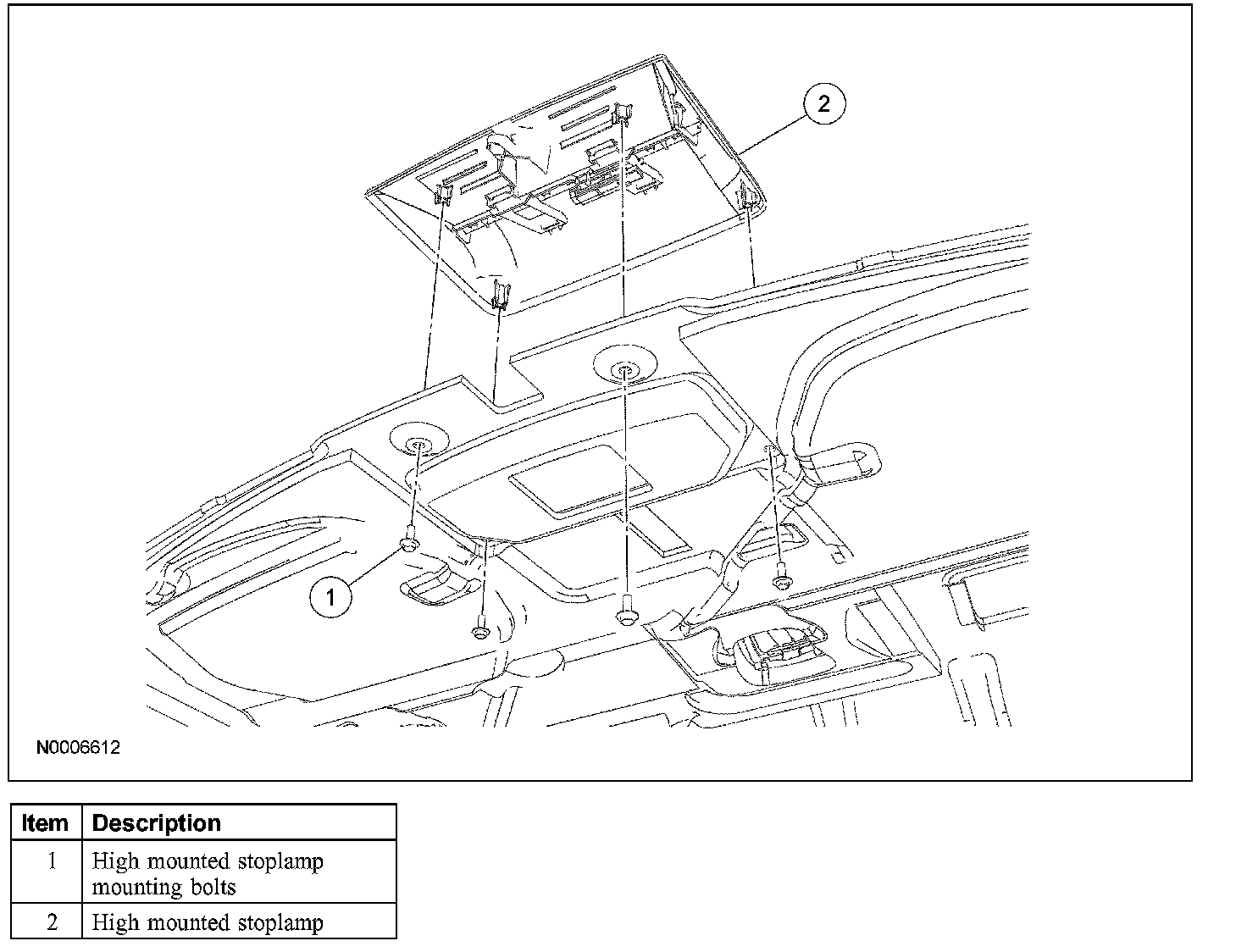

HIGH MOUNTED STOPLAMP







Removal and Installation
1. Remove the parcel shelf.
2. Remove the 4 high mounted stoplamp mounting screws.
3. Remove the high mounted stoplamp.
4. To install, reverse the removal procedure.
