Test C: Incorrect Temperature Gauge Indication

PINPOINT TEST C: INCORRECT TEMPERATURE GAUGE INDICATION

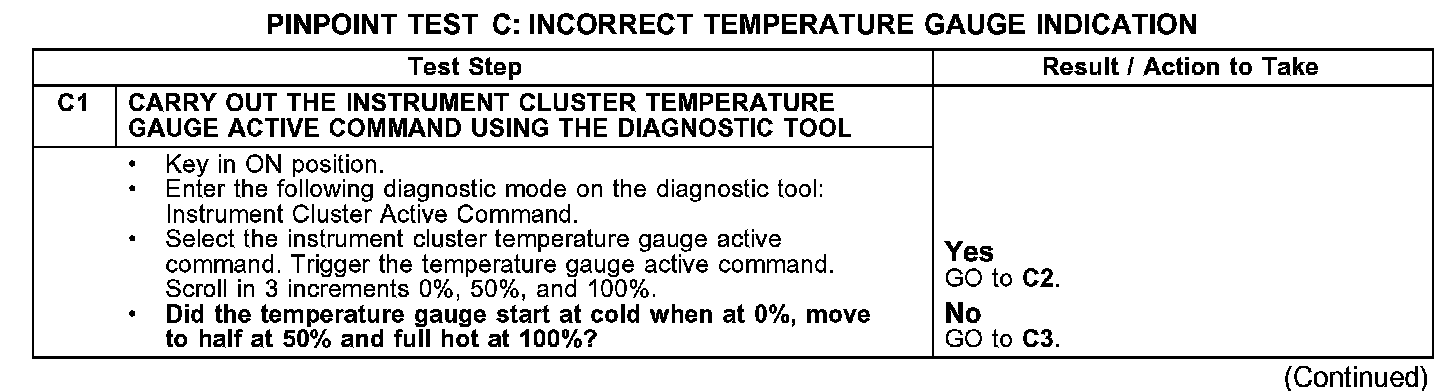

C1:

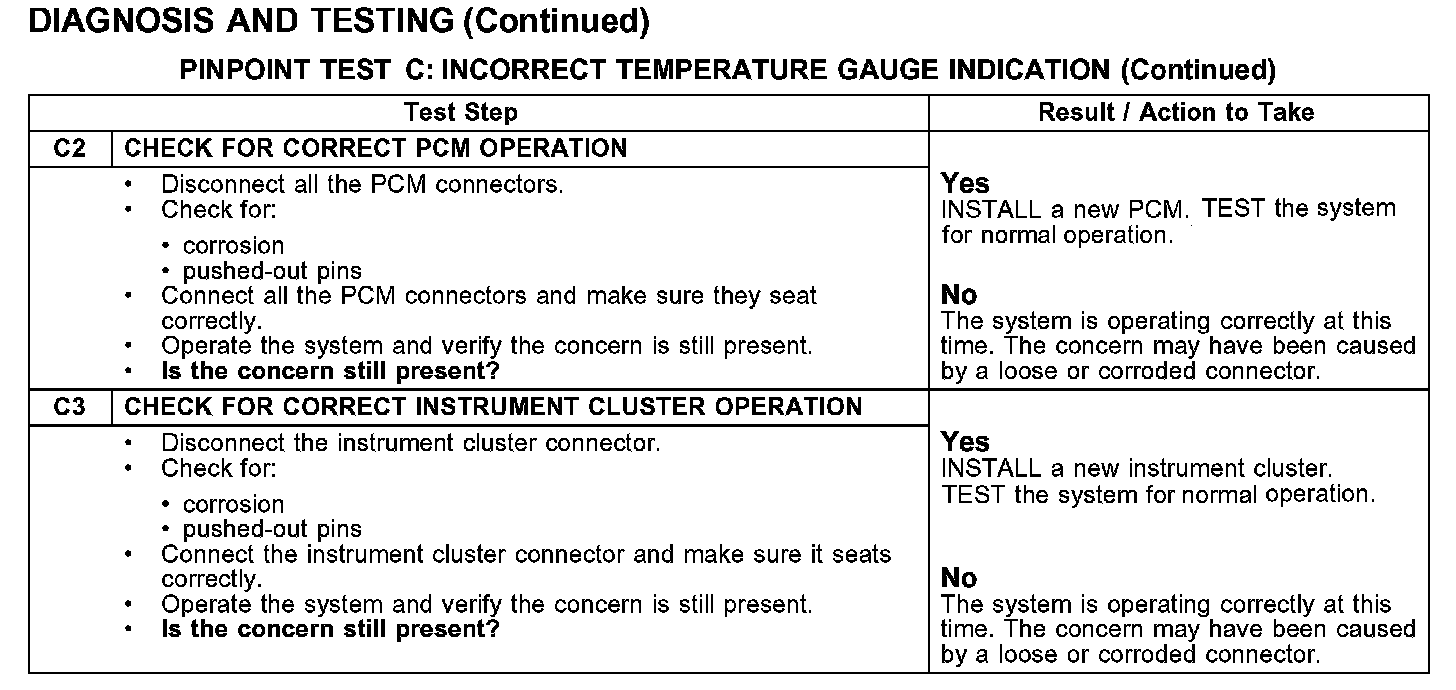

C2-C3:

Normal Operation
Normal engine operating temperature is 60°C (140°F) to 120°C (248°F). The engine coolant temperature (ECT) sensor unit monitors the coolant temperature and is hardwired directly to the powertrain control module (PCM). The status of the engine coolant temperature is sent from the PCM to the instrument cluster over the communication network.

Possible Causes
- PCM
- instrument cluster
