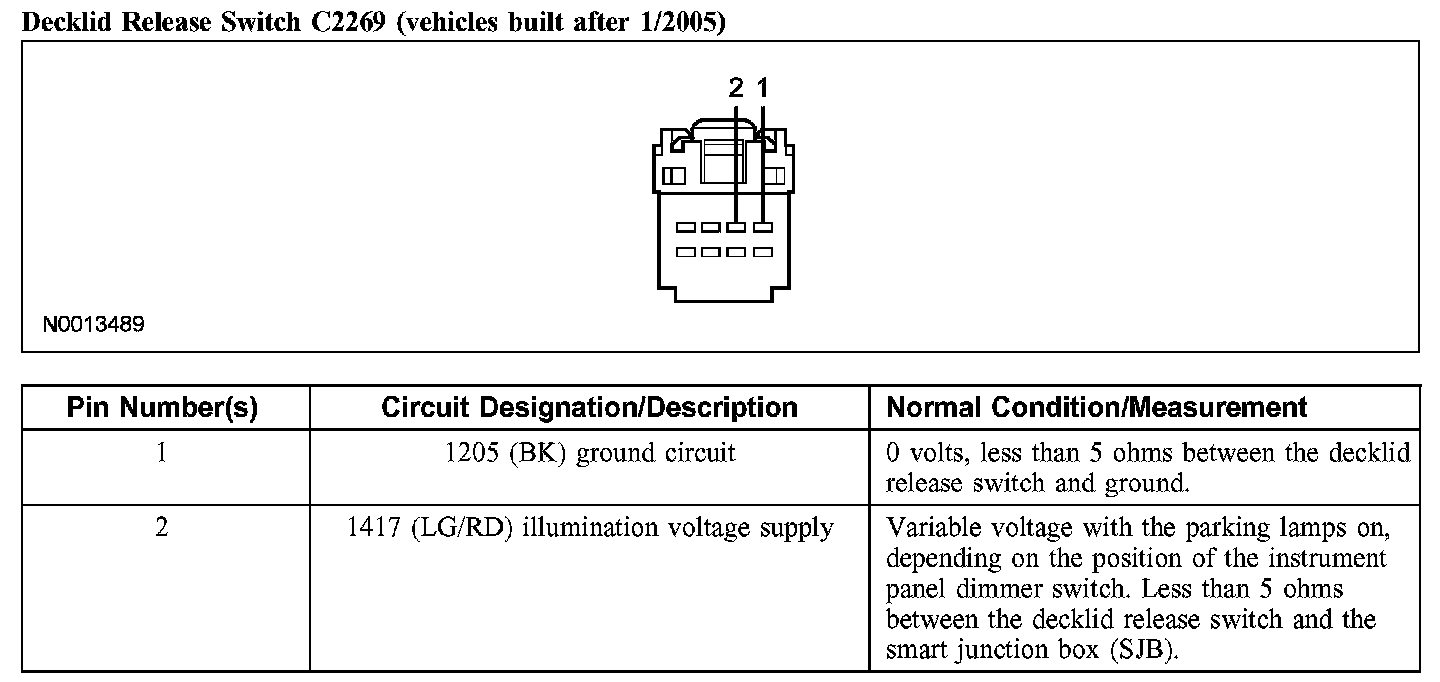

Decklid Release Switch C2269 (Vehicles Built After 1/2005)

Decklid Release Switch C2269 (Vehicles Built After 1/2005):
