Compass Sensor Module C909

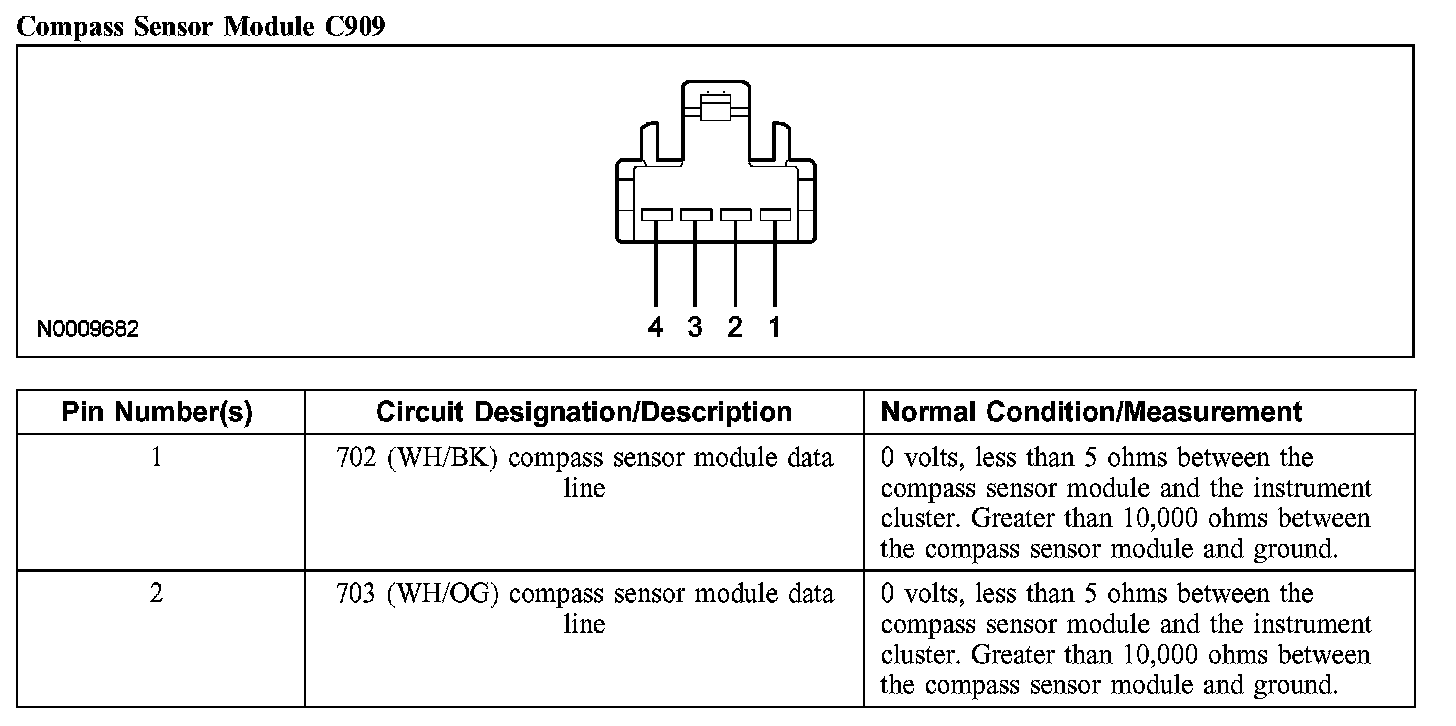

Compass Sensor Module C909 (Part 1):



Compass Sensor Module C909 (Part 2):
