Home >> Mercury >> 2005 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Solar Radiation Sensor C286

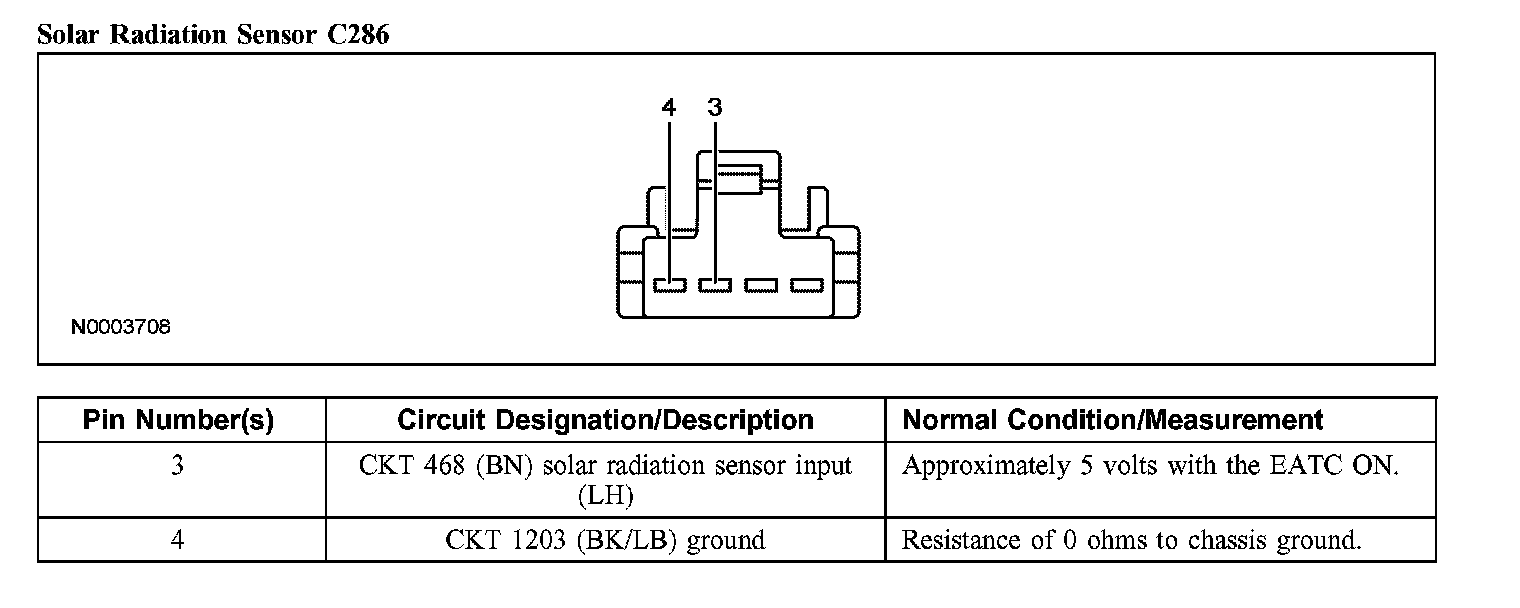

Solar Radiation Sensor C286

Solar Radiation Sensor C286:
