Heating and Ventilation

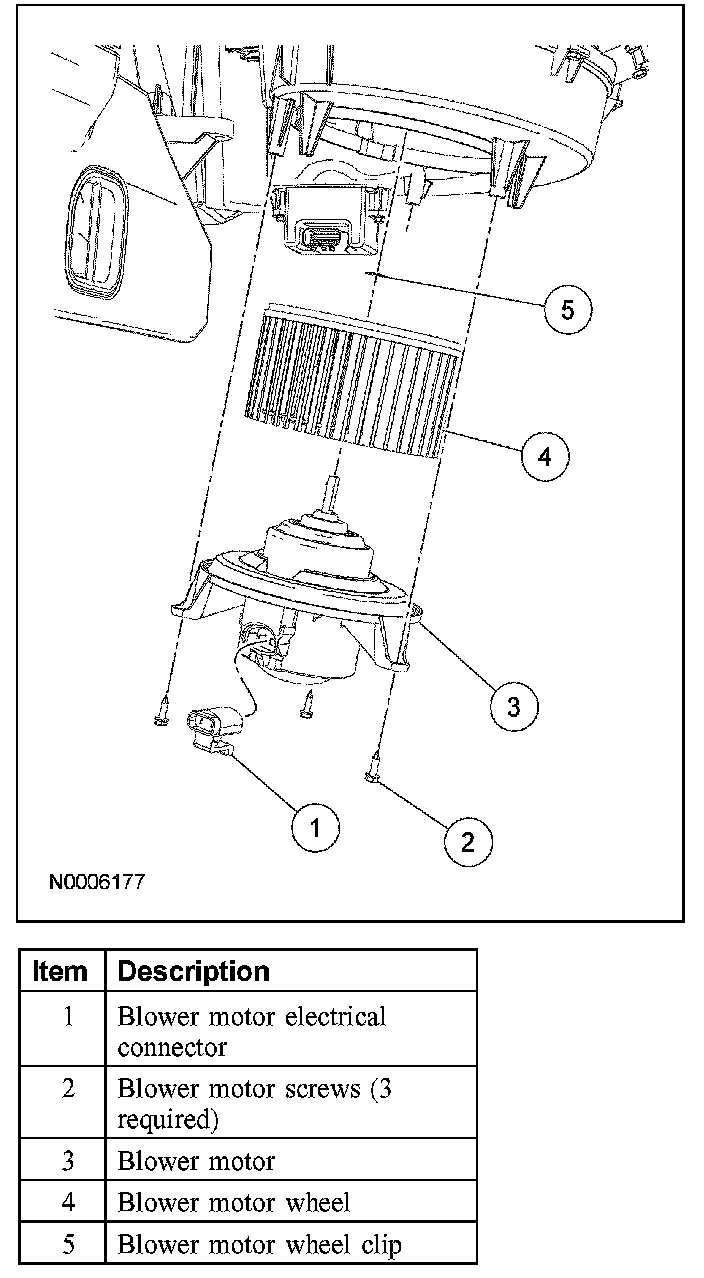

BLOWER MOTOR







Removal and Installation
1. Remove the RH lower instrument panel insulator.
2. Disconnect the blower motor electrical connector.
3. Remove the 3 blower motor screws.
4. Remove the blower motor.
5. Remove the blower motor wheel clip.
6. Remove the blower motor wheel.
7. To install, reverse the removal procedure.
