Valve and Valve Seat

Valve Stem Diameter

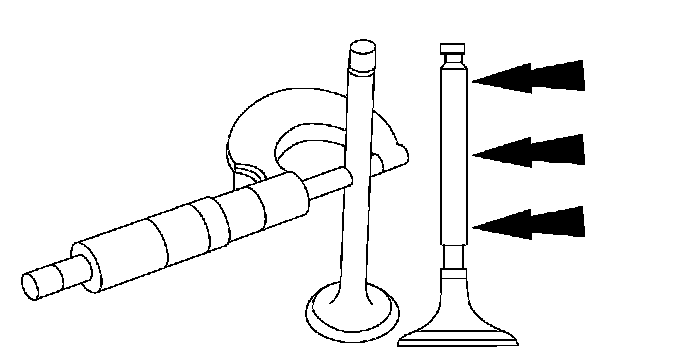

1. Measure the diameter of each intake and exhaust valve stem at the points shown. Verify the diameter is within specification.
^ If out of specification, install new components as necessary.

Valve Inspection

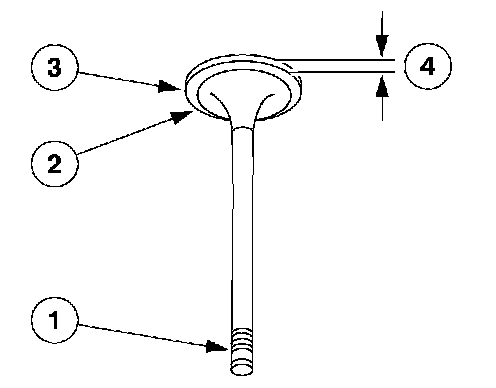

1. Inspect the following valve areas:
1 The end of the stem for grooves or scoring
2 The valve face and the edge for pits, grooves or scores
3 The valve head for signs of burning, erosion, warpage and cracking
4 The valve margin for wear

Valve Seat Inspection

Valve and Seat Refacing Measurements

CAUTION: After grinding valves or valve seats, check valve clearance.





1. Check the valve head and seat.
^ Check valve angles.
^ Check margin width.
^ Be sure margin width is within specification.
2. Inspect for abnormalities on the valve face and seat. Install a new cylinder head assembly if abnormalities are found.
