Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

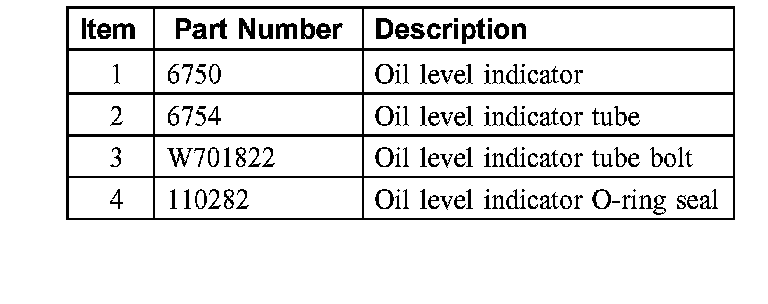

Oil Level Indicator and TubeMaterial:
Material

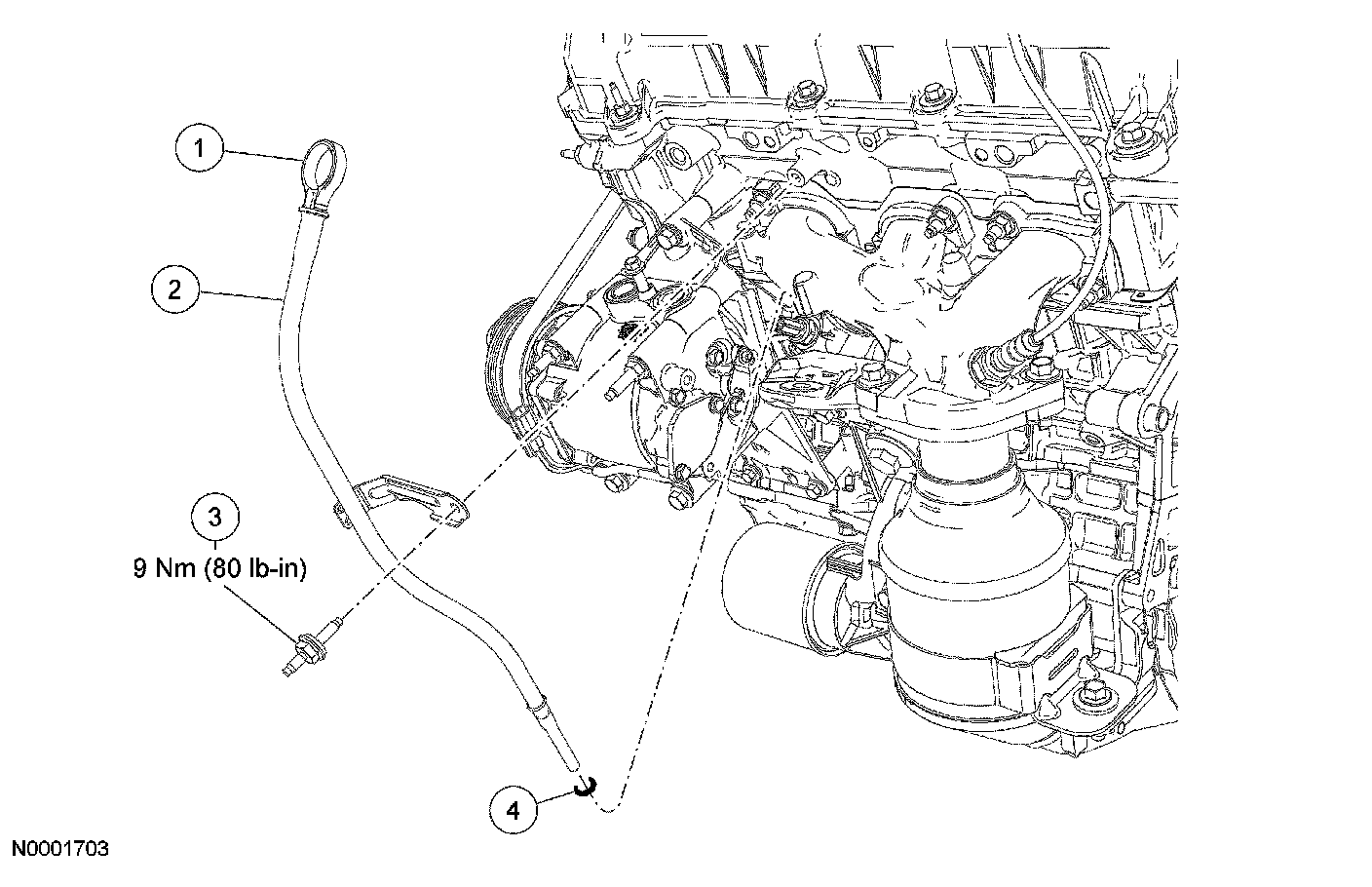

Removal and Installation
1. Remove the oil level indicator.
2. Remove the stud bolt and the oil level indicator tube.
^ Remove and discard the O-ring seal.
^ To install, tighten to 10 Nm (89 inch lbs.).
3. NOTE: Install a new O-ring seal and lubricate with clean engine oil.
To install reverse the removal procedure.
