Disassembly and Assembly of Subassemblies

Cylinder Head

Special Tools And Equipment:

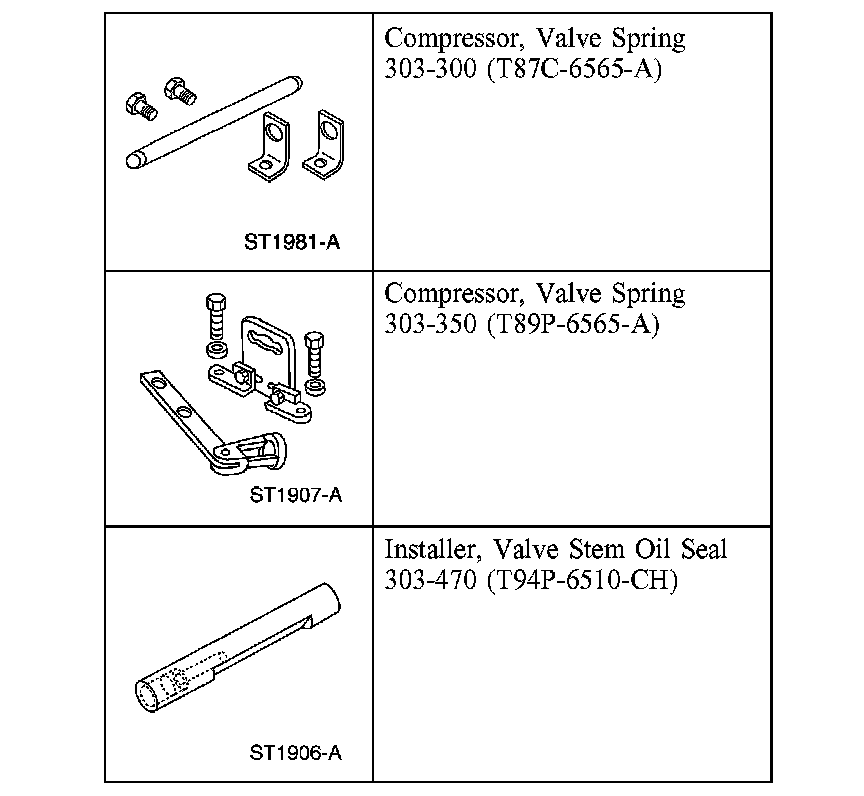

Special Tool(s)

Material:

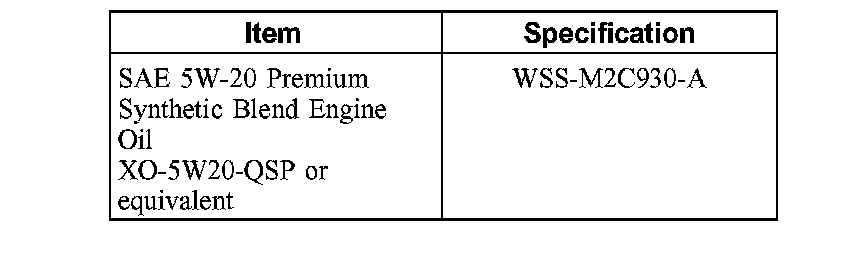

Material








Cylinder Head

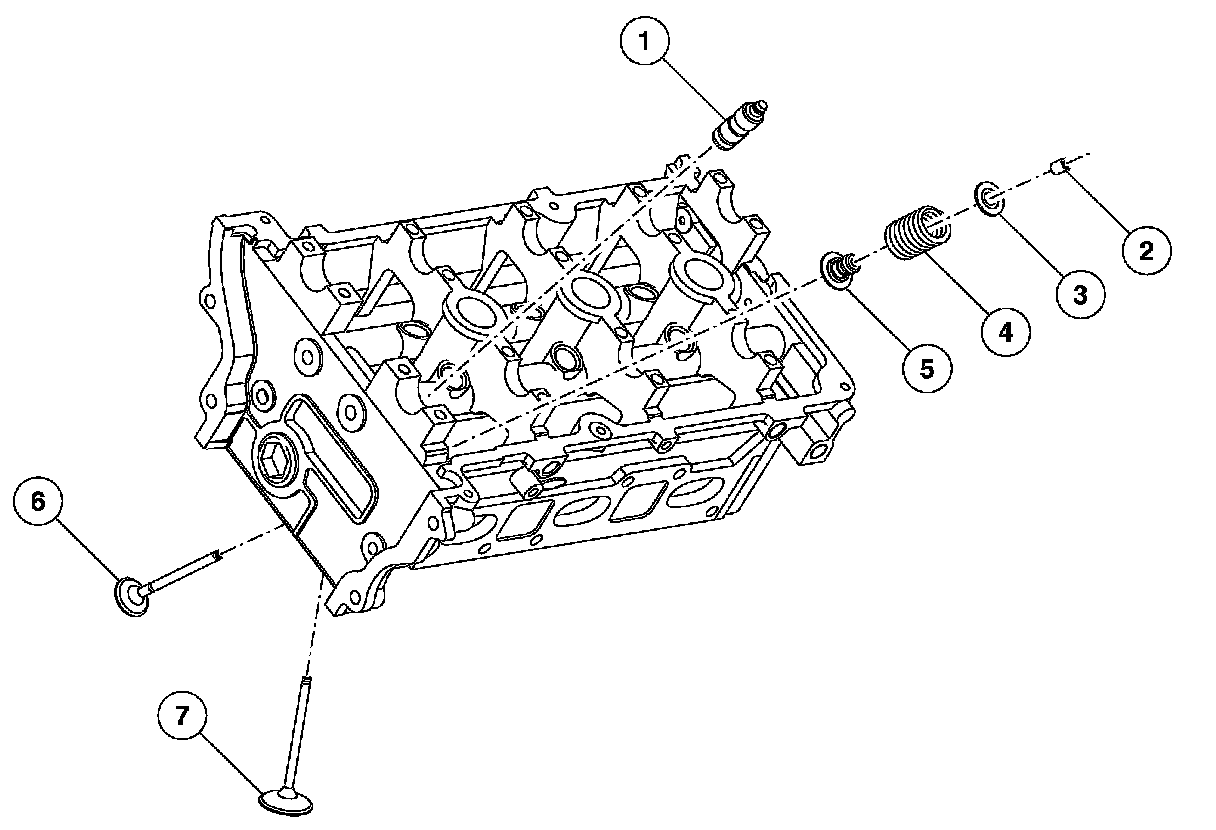

Disassembly

CAUTION: If the components are to be reinstalled, they must be installed in the same positions. Mark the locations of the components removed.

1. Remove the hydraulic lash adjusters.

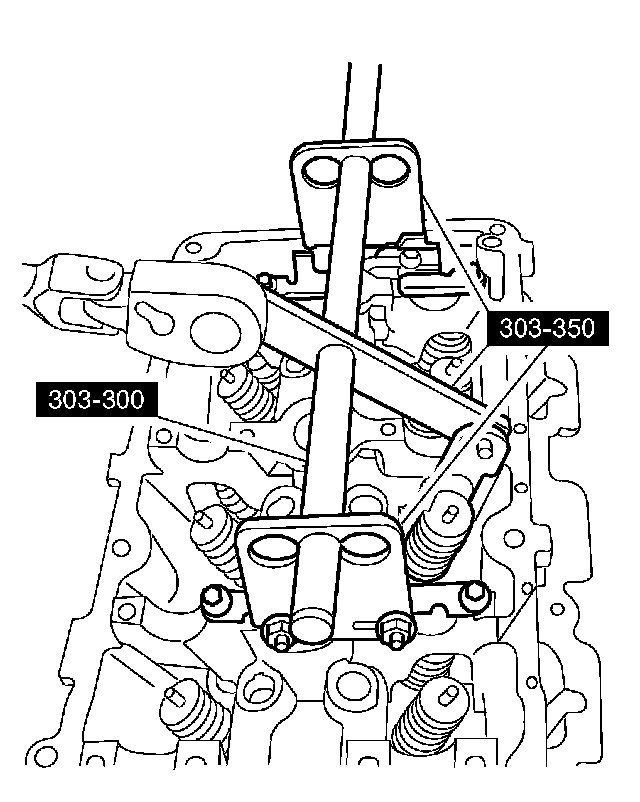

2. Using the special tools, remove the keys, retainer and spring.
3. Remove the valve from the cylinder head.
4. Remove the valve stem seal.

Assembly

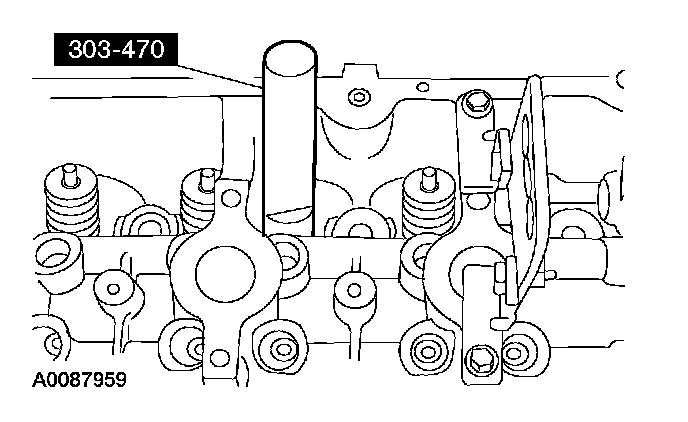

1. Using the special tool, install the valve stem seal.
2. Install the valve.

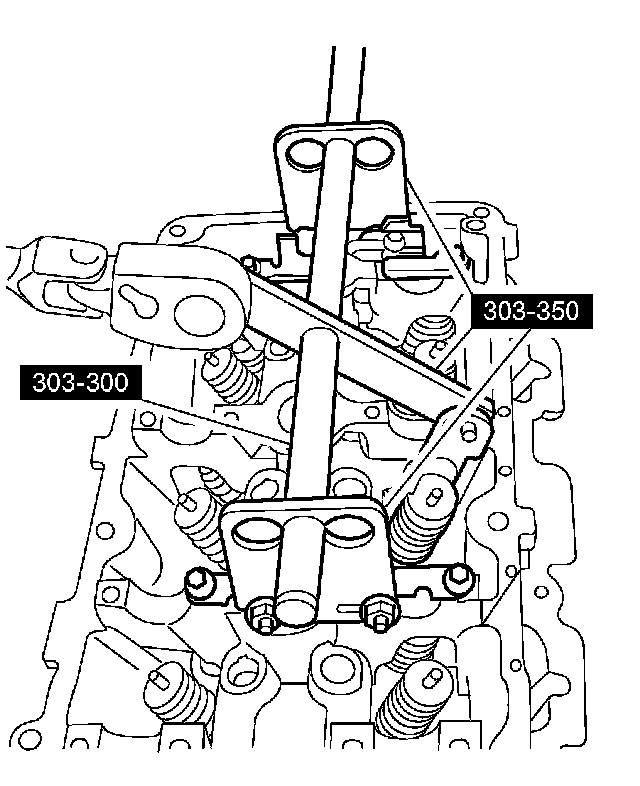

3. Using the special tools, install the valve spring, retainer and key.
4. Install the hydraulic lash adjusters.
