Radiator Cooling Fan Motor: Service and Repair

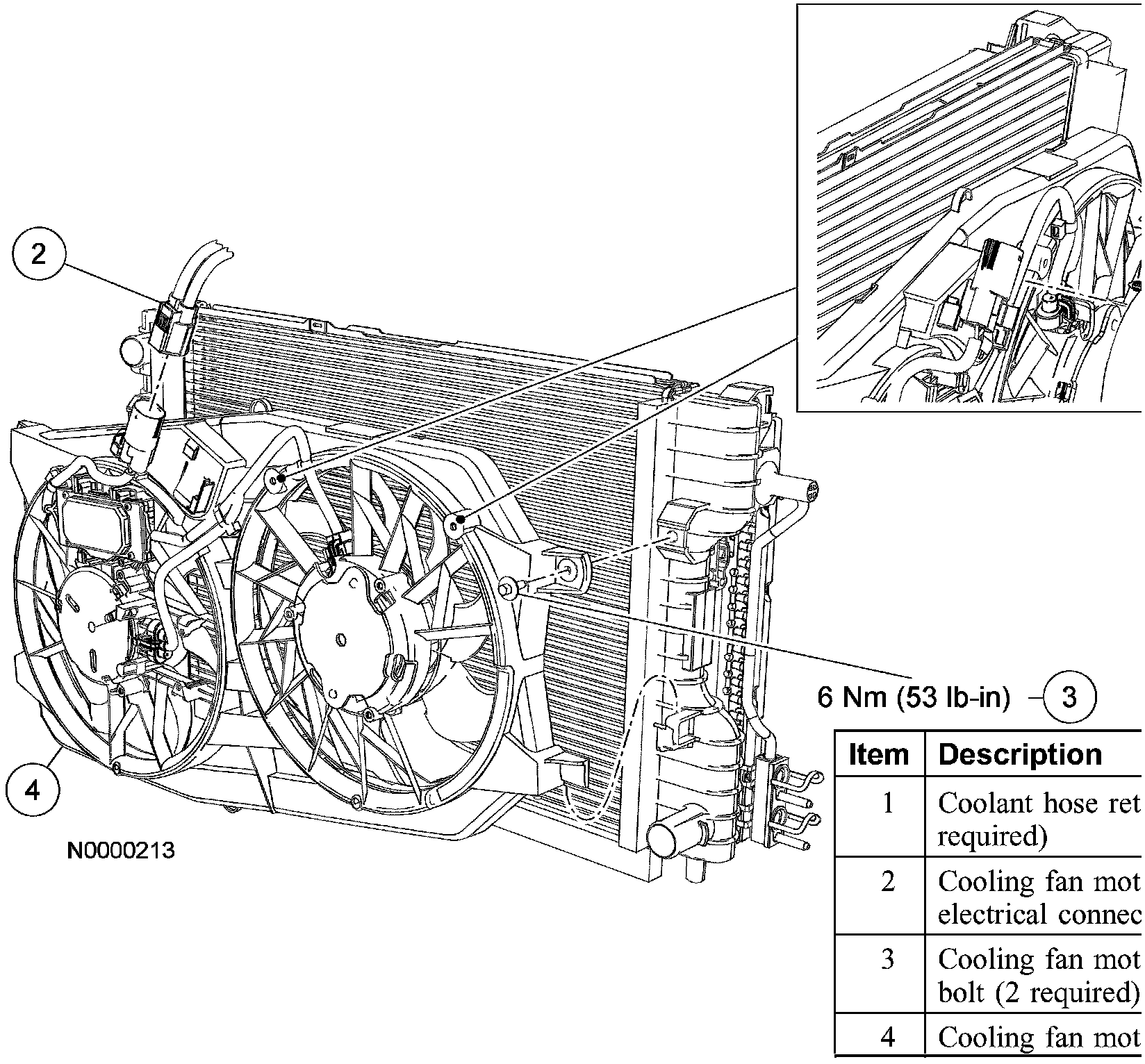

Cooling Fan Motor and Shroud

vA� :

Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the 2 coolant hose retainers from the fan shroud and position aside.
3. Disconnect the cooling fan motor electrical connector.
4. Remove the 2 cooling fan motor and shroud bolts and release the cooling fan motor and shroud from the lower brackets.
^ To install, tighten to 6 Nm (53 inch lbs.).
5. To install, reverse the removal procedure.
