Test B: Vibration When Brakes Are Applied
Test B: Vibration When Brakes Are Applied
Pinpoint Test B: Vibration When The Brakes Are Applied

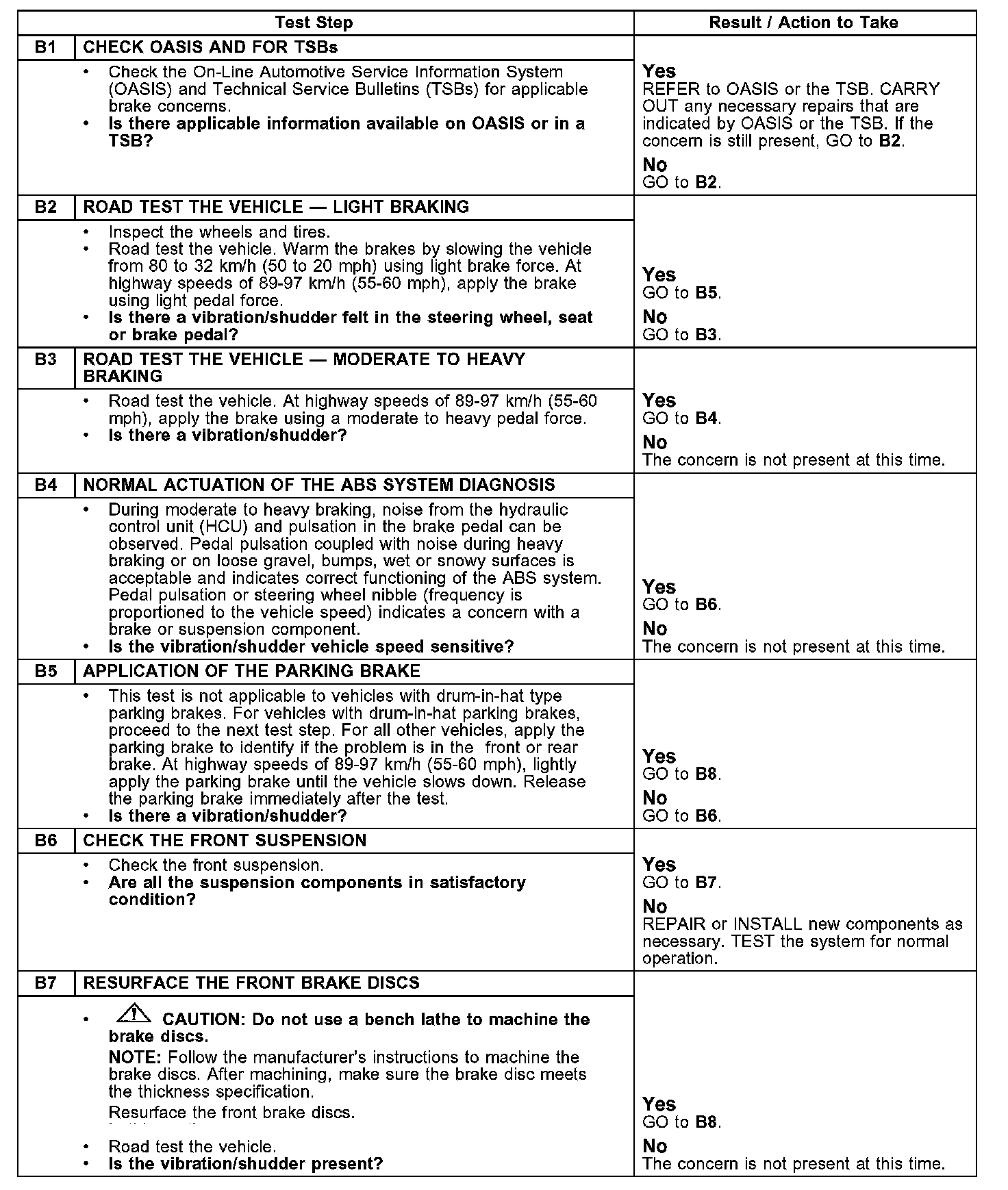

Tests B1 - B7:

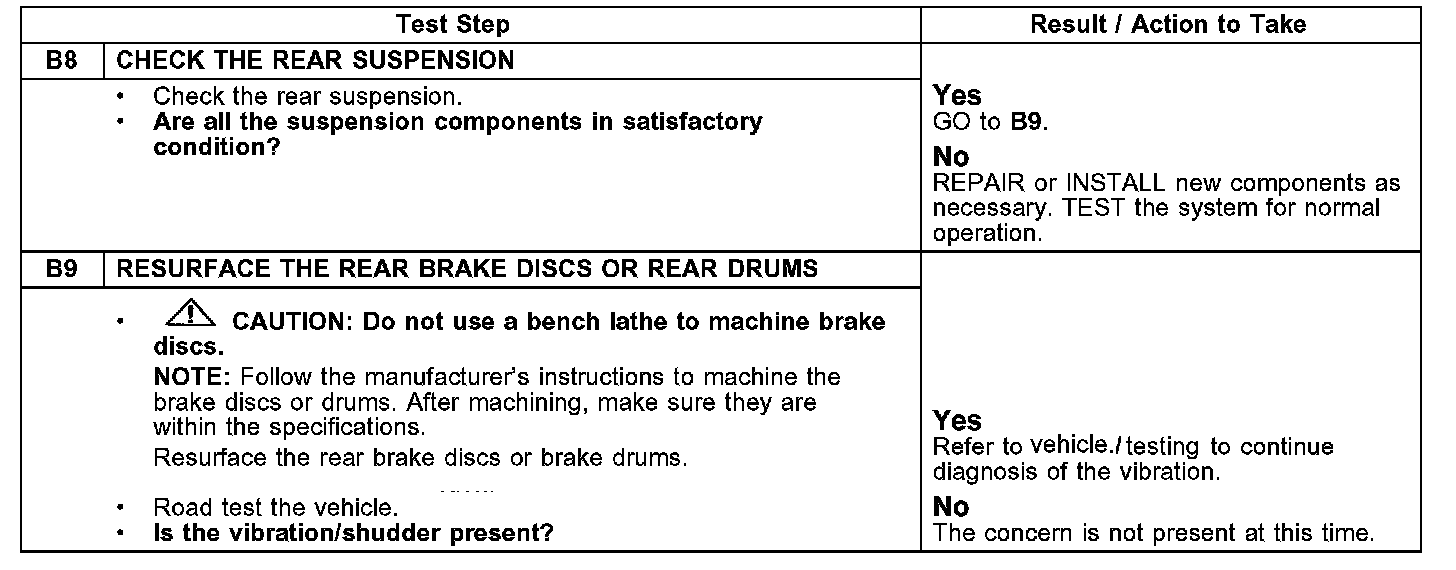

Tests B8 - B9:
PINPOINT TEST B: VIBRATION WHEN THE BRAKES ARE APPLIED
