Home >> Mercury >> 2005 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Brakes and Traction Control >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Adjustable Pedal Switch C2089 (Vehicles Built Before 1/2005)

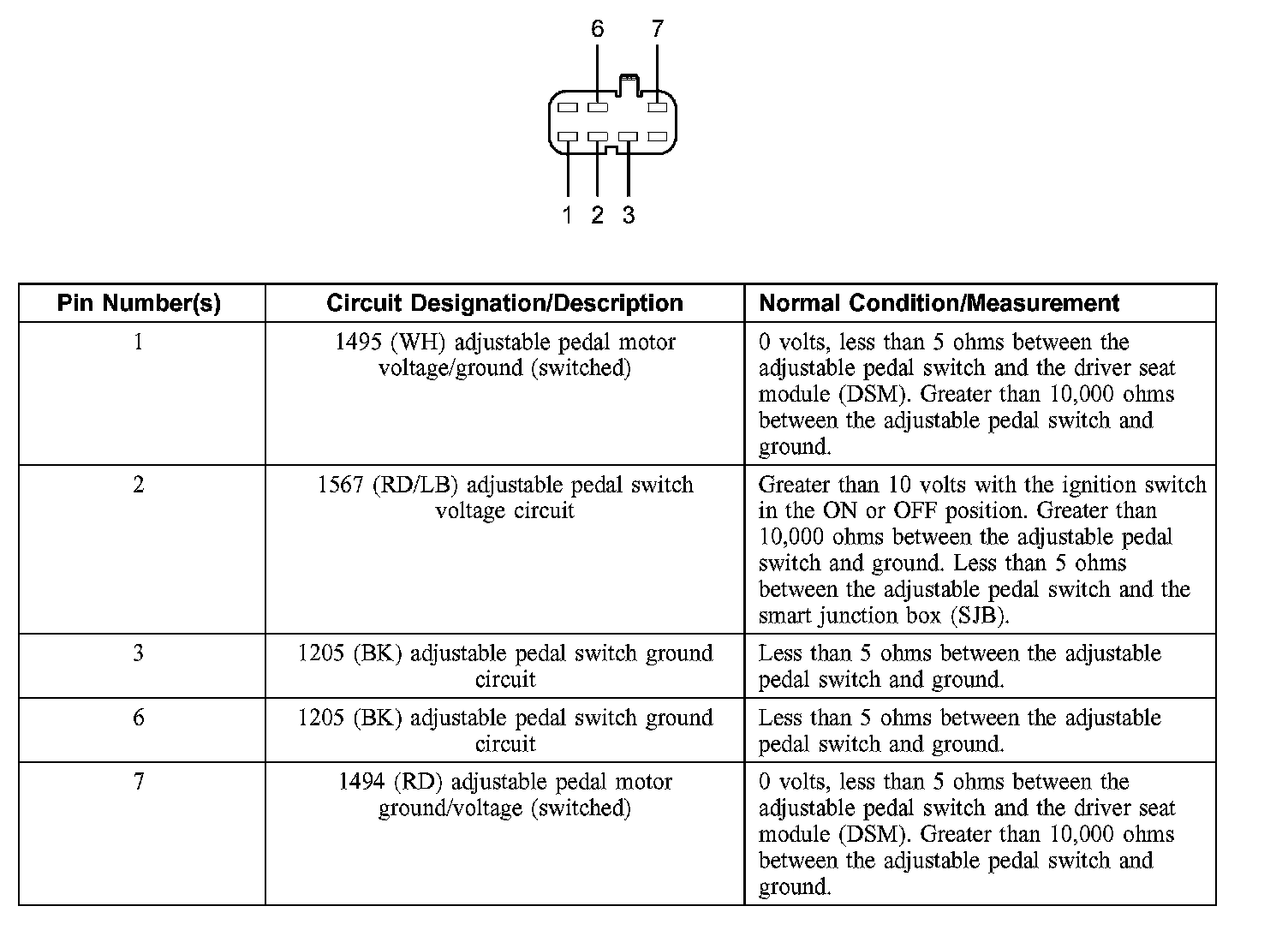

Adjustable Pedal Switch C2089 (Vehicles Built Before 1/2005)
