Parking Brake System: Service and Repair

Parking Brake Control

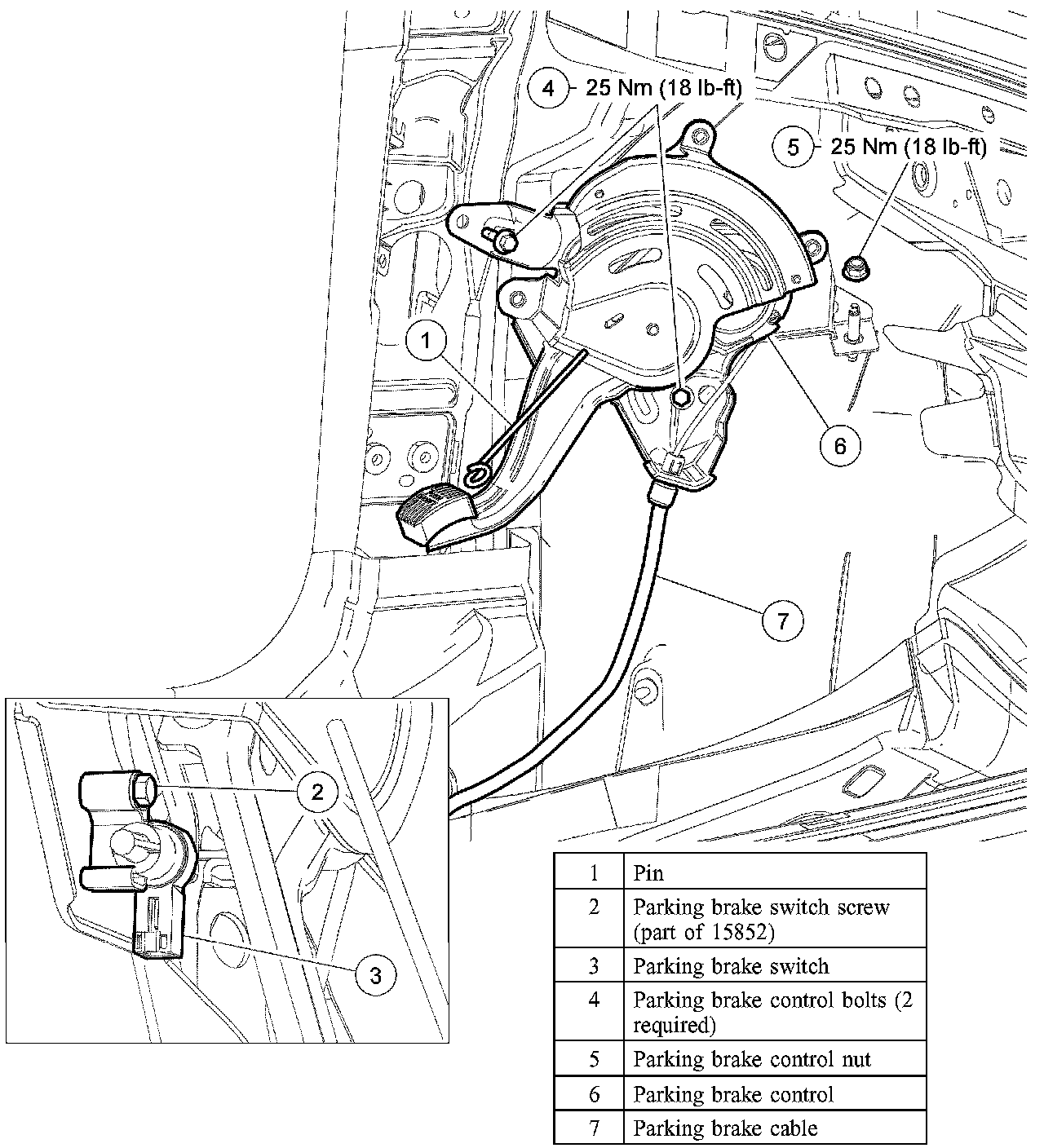

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Release the tension on the parking brake cable.
3. Remove the smart junction box (SJB) and bracket.
4. Disconnect the parking brake switch electrical connector.
5. Remove the nut and 2 bolts from the parking brake control.
^ To install, tighten to 25 Nm (18 inch lbs.).
6. Position the carpet aside and position the cable conduit grommet through the floor.
7. Remove the parking brake control from the vehicle.
8. To install, reverse the removal procedure.
^ Inspect the parking brake system for correct operation.
