Home >> Mercury >> 2005 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> LH Front Wheel Speed Sensor C150, RH Front Wheel Speed Sensor C160, LH Rear Wheel Speed Sensor C3117

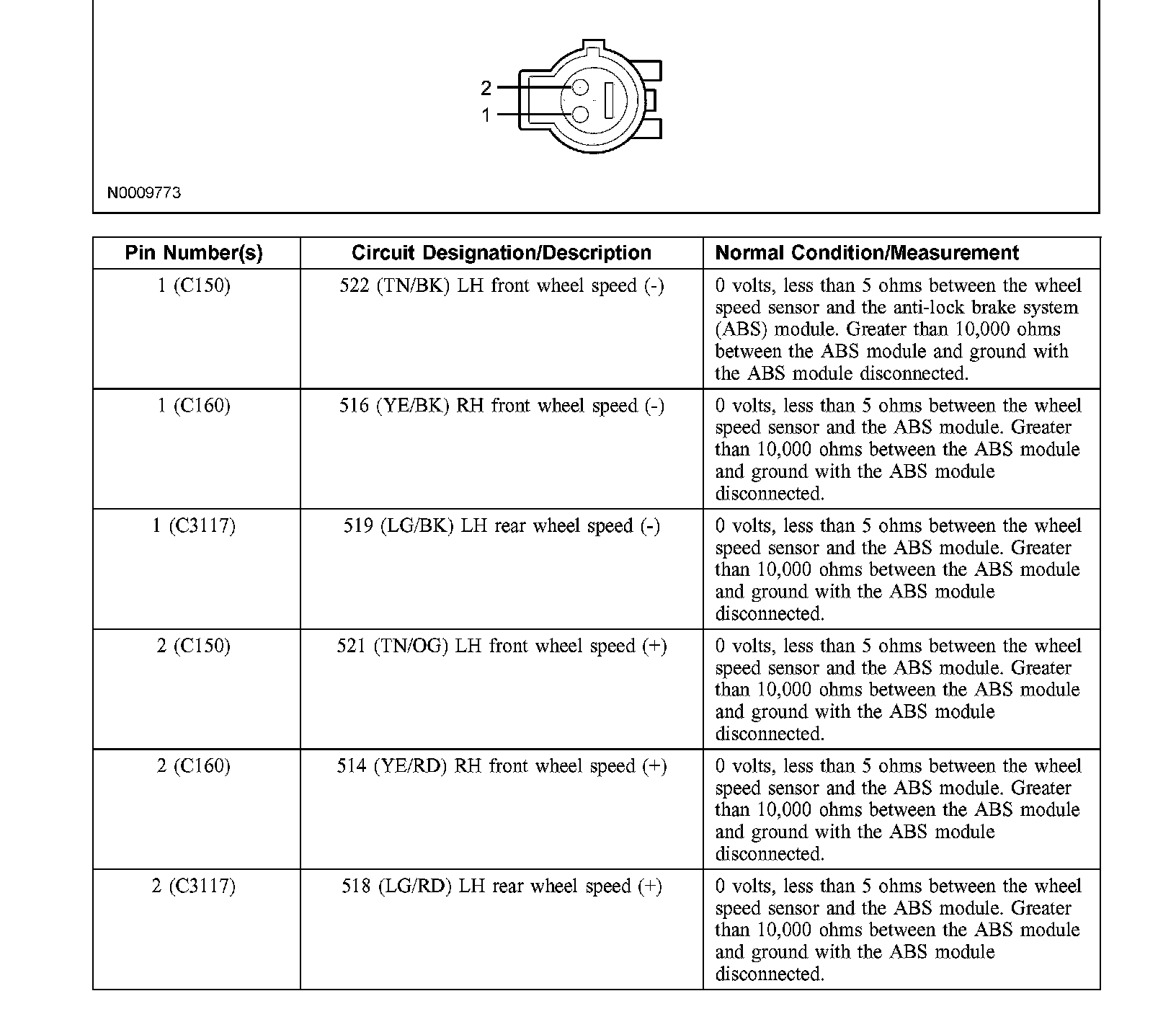

LH Front Wheel Speed Sensor C150, RH Front Wheel Speed Sensor C160, LH Rear Wheel Speed Sensor C3117
