Home >> Mercury >> 2005 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Instrument Cluster C220

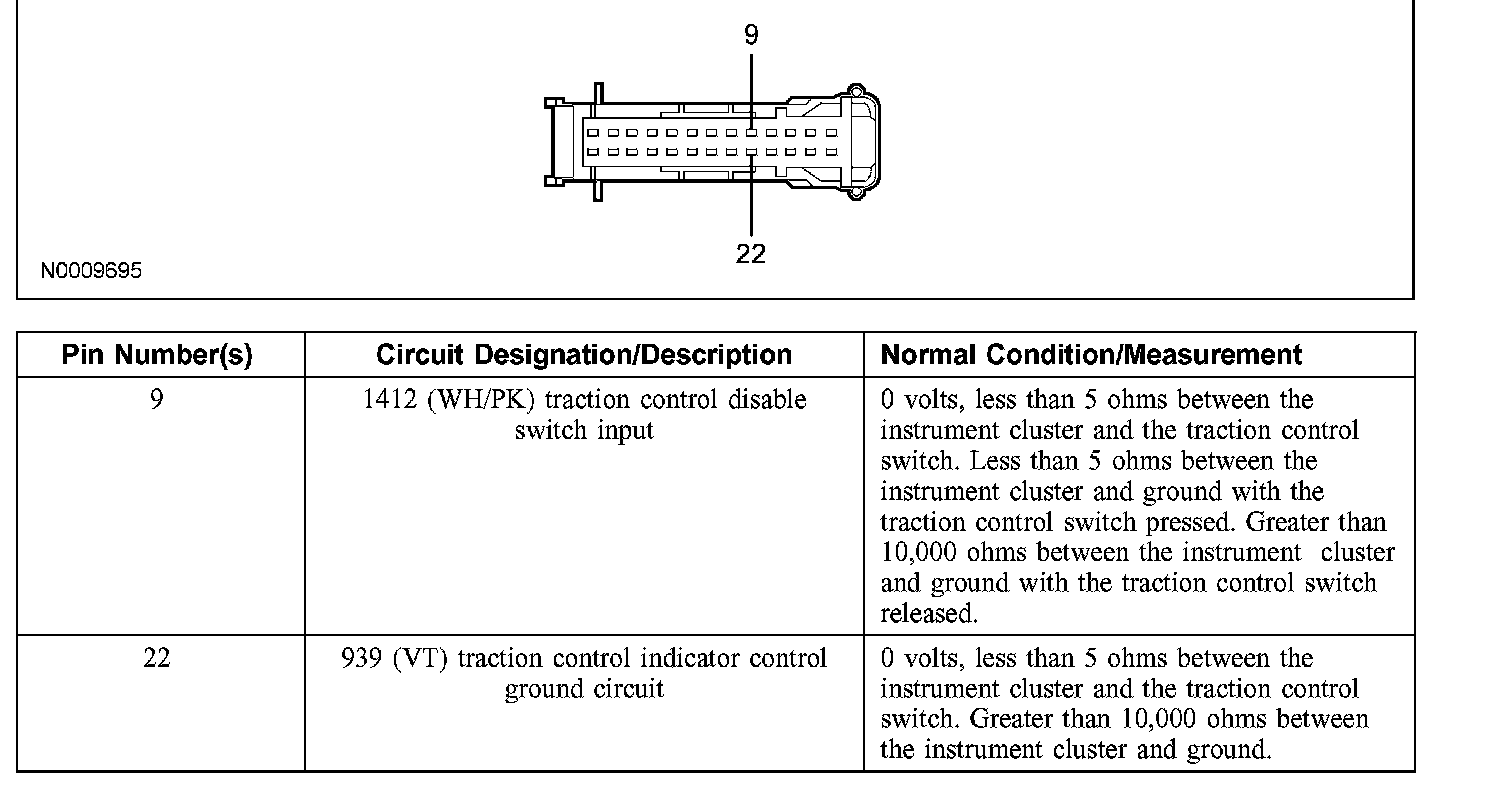

Instrument Cluster C220
