Home >> Mercury >> 2005 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit References >> Passenger Seat Control Switch - Without Recline C3190

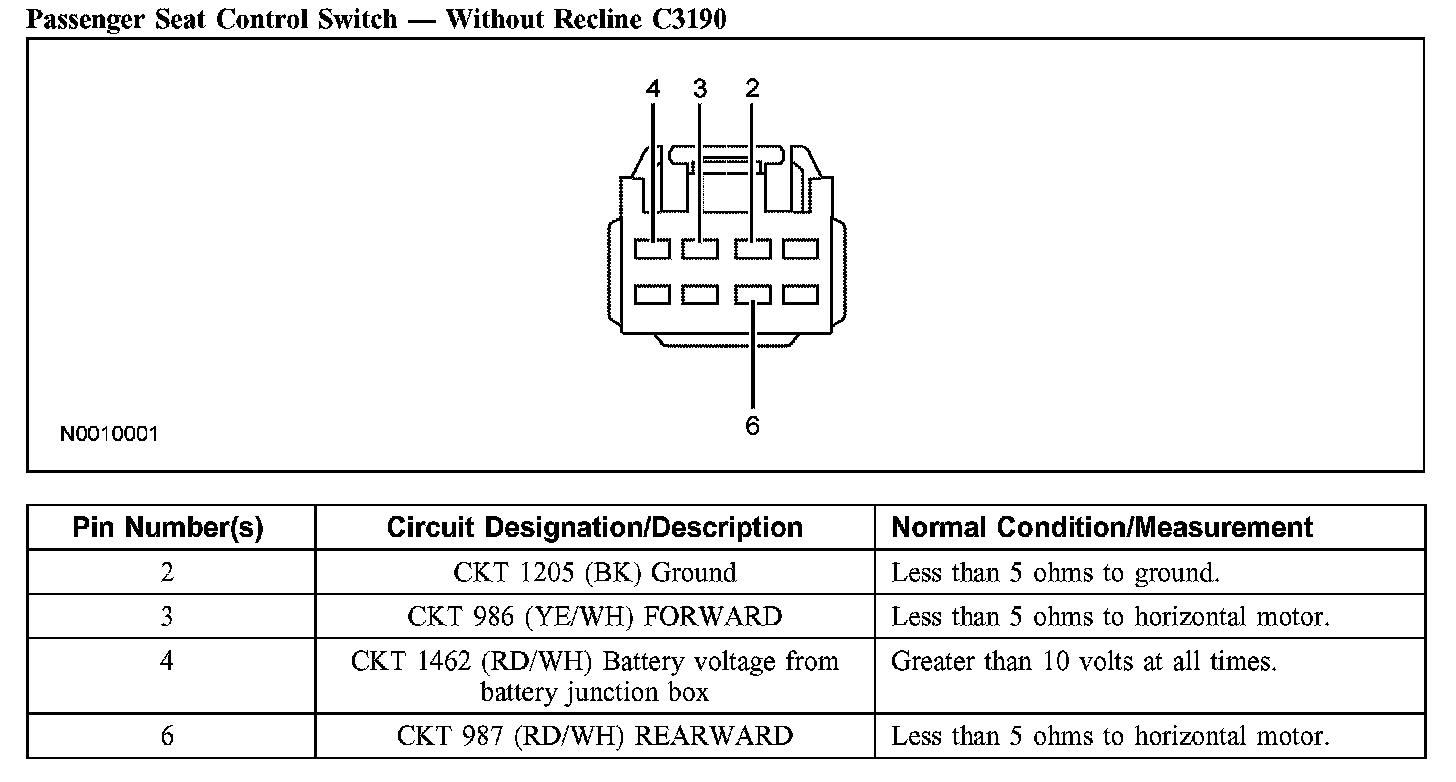

Passenger Seat Control Switch - Without Recline C3190

Passenger Seat Control Switch - Without Recline C3190:
