Passenger Seat Control Switch - With Recline C330

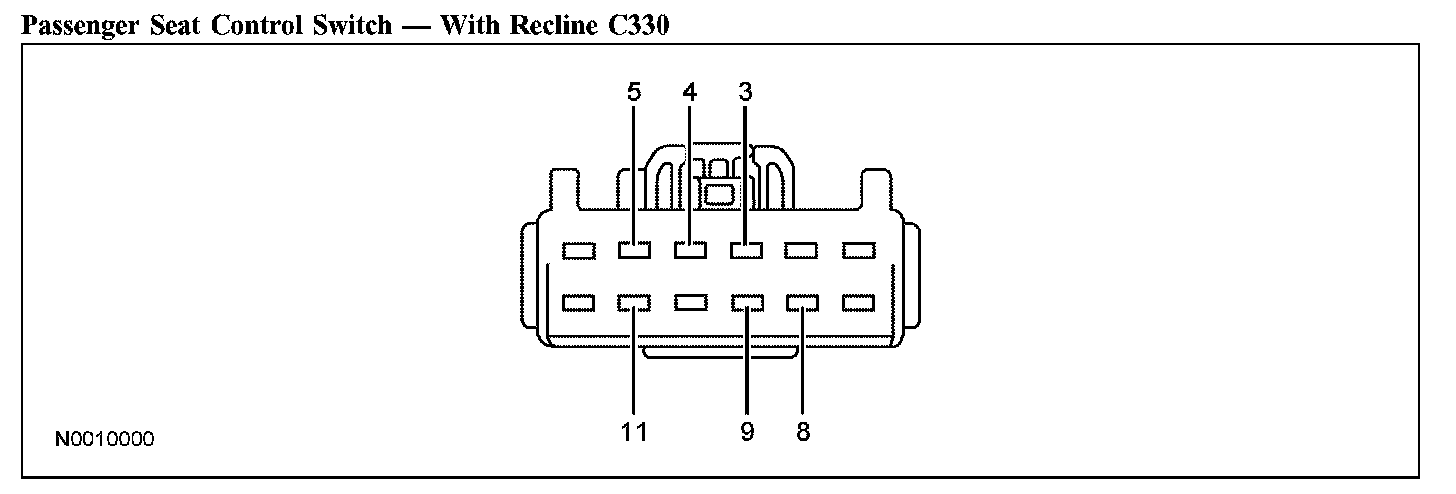

Passenger Seat Control Switch - With Recline C330

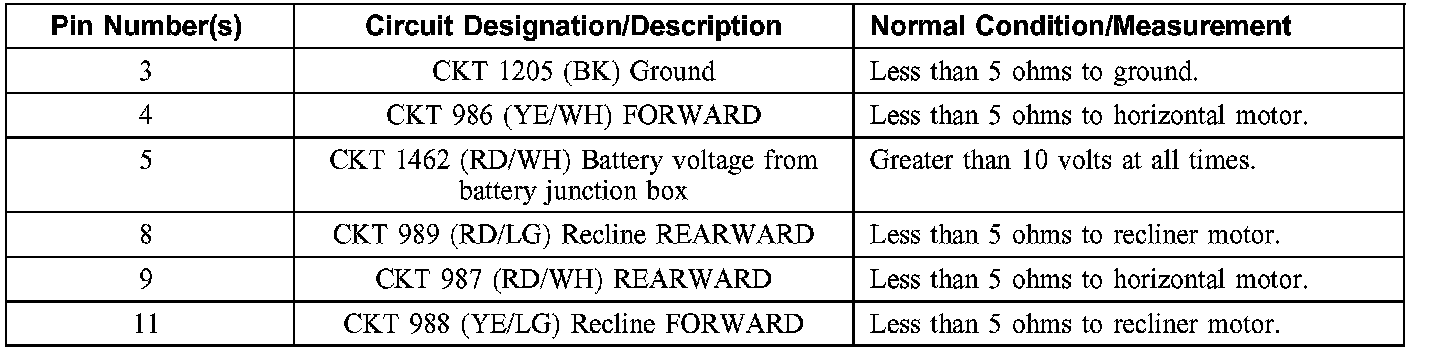

Passenger Seat Control Switch - With Recline C330 (Part 1):
Passenger Seat Control Switch - With Recline C330 (Part 2):
