Mercury
>>
2005
>>
Montego AWD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit References
>>
Driver Seat Recliner Motor - With Memory C3187
Driver Seat Recliner Motor - With Memory C3187

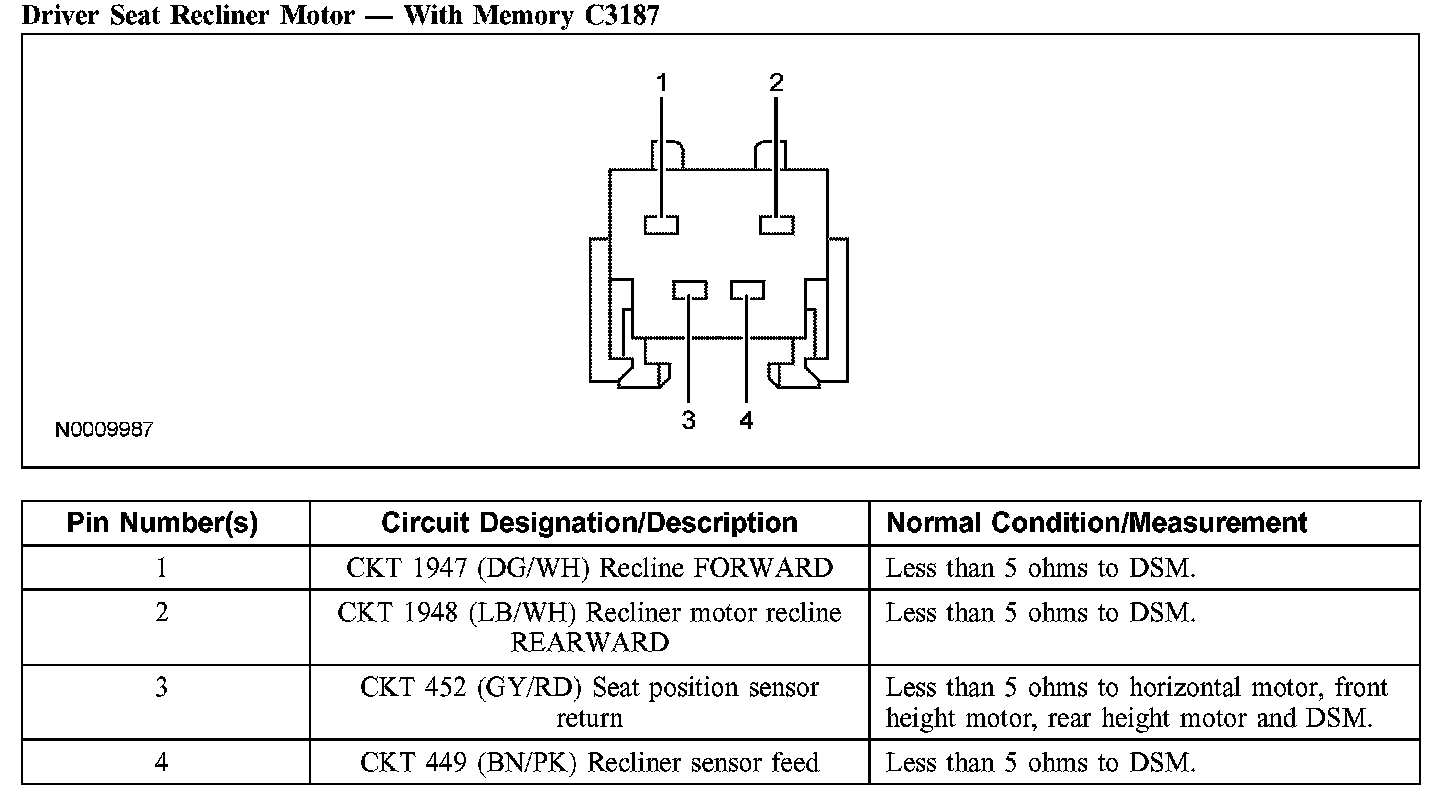

Driver Seat Recliner Motor - With Memory C3187:
