Seat - Exploded View, Third Row

SEAT - EXPLODED VIEW, THIRD ROW

Removal and Installation

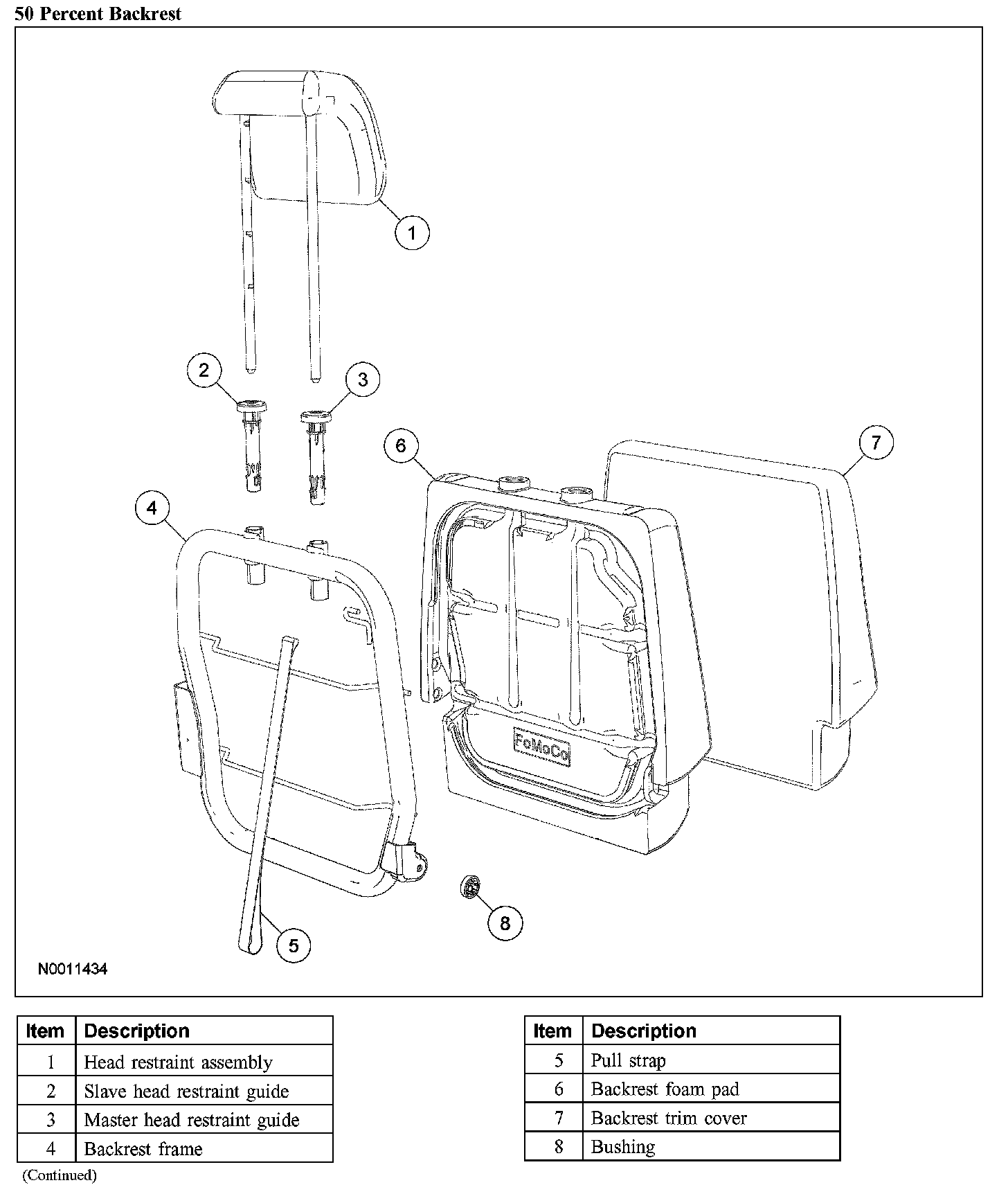

50 Percent Backrest:

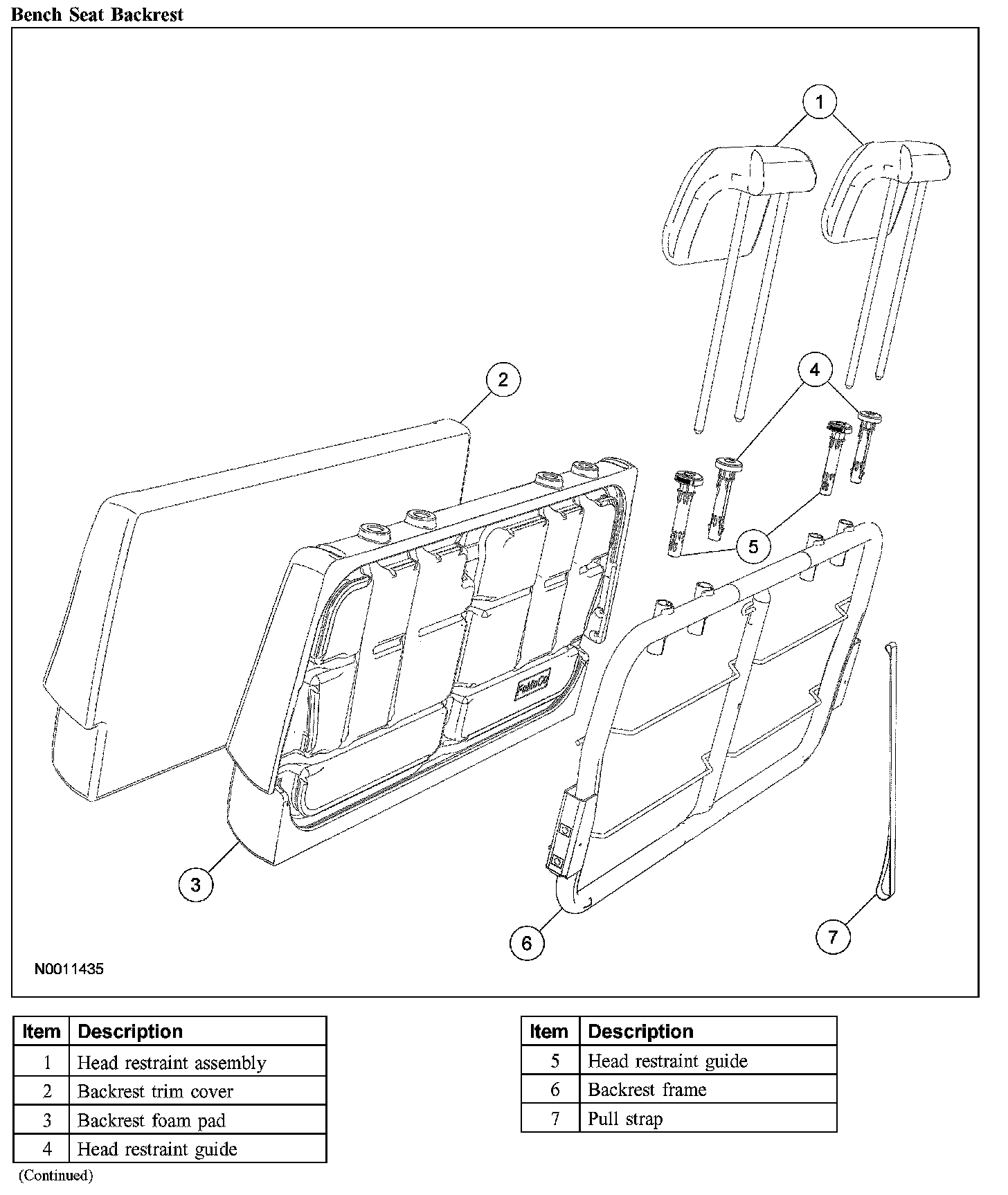

Bench Seat Backrest:

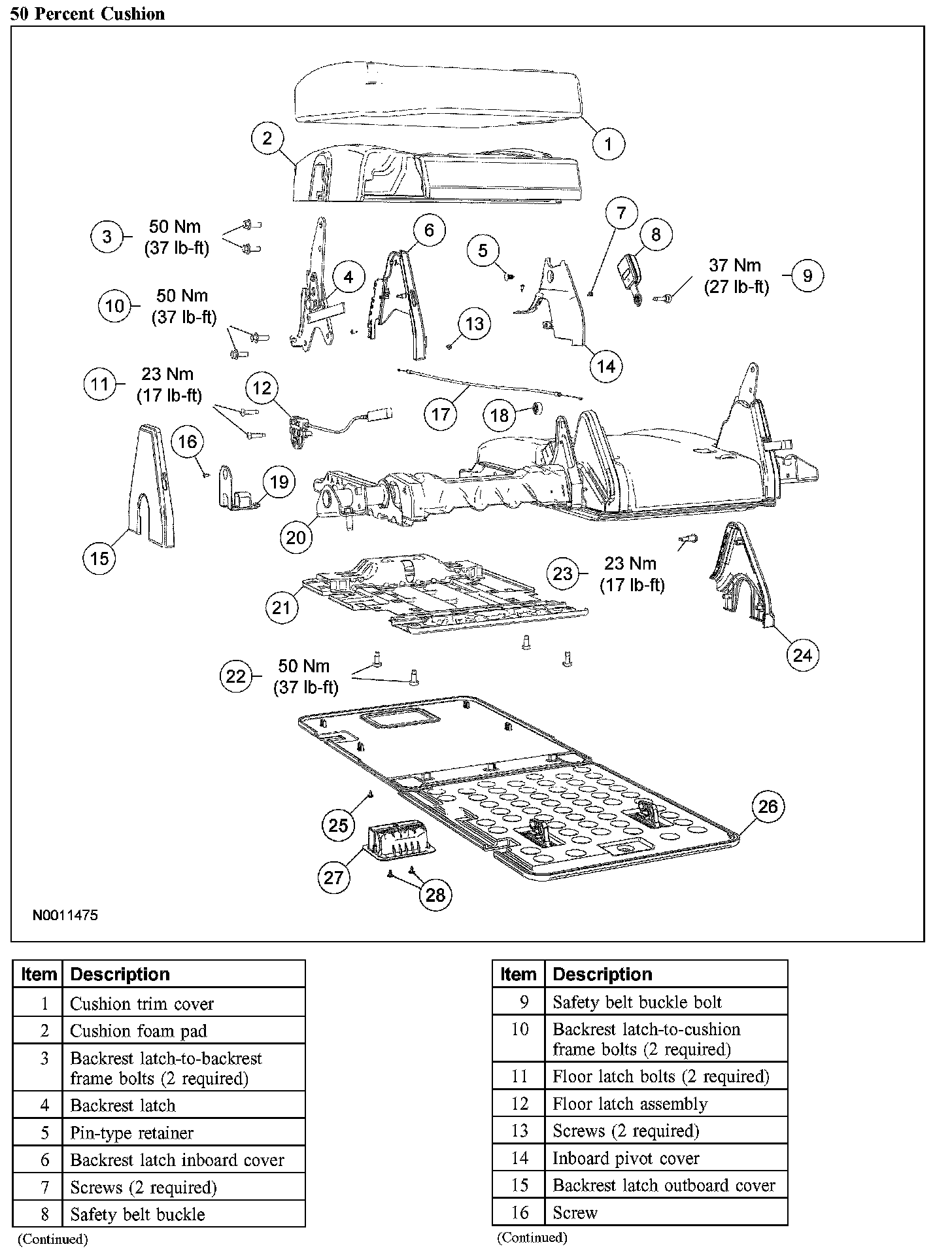

50 Percent Cushion (Part 1):

50 Percent Cushion (Part 2):

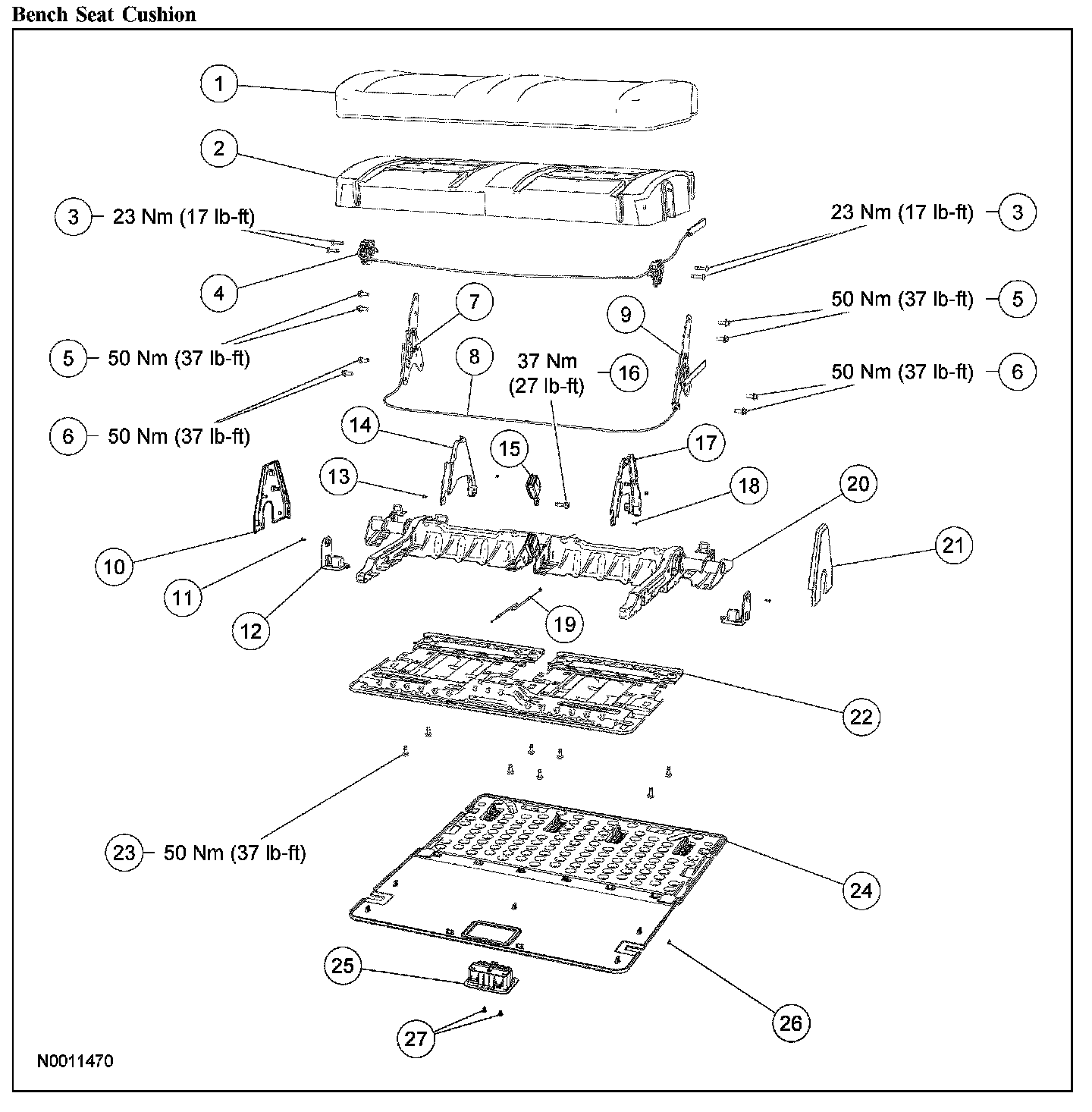

Bench Seat Cushion (Part 1):

Bench Seat Cushion (Part 2):

1. For additional information, refer to the procedures.
