Seat - Exploded View, Front

SEAT - EXPLODED VIEW, FRONT

Removal and Installation

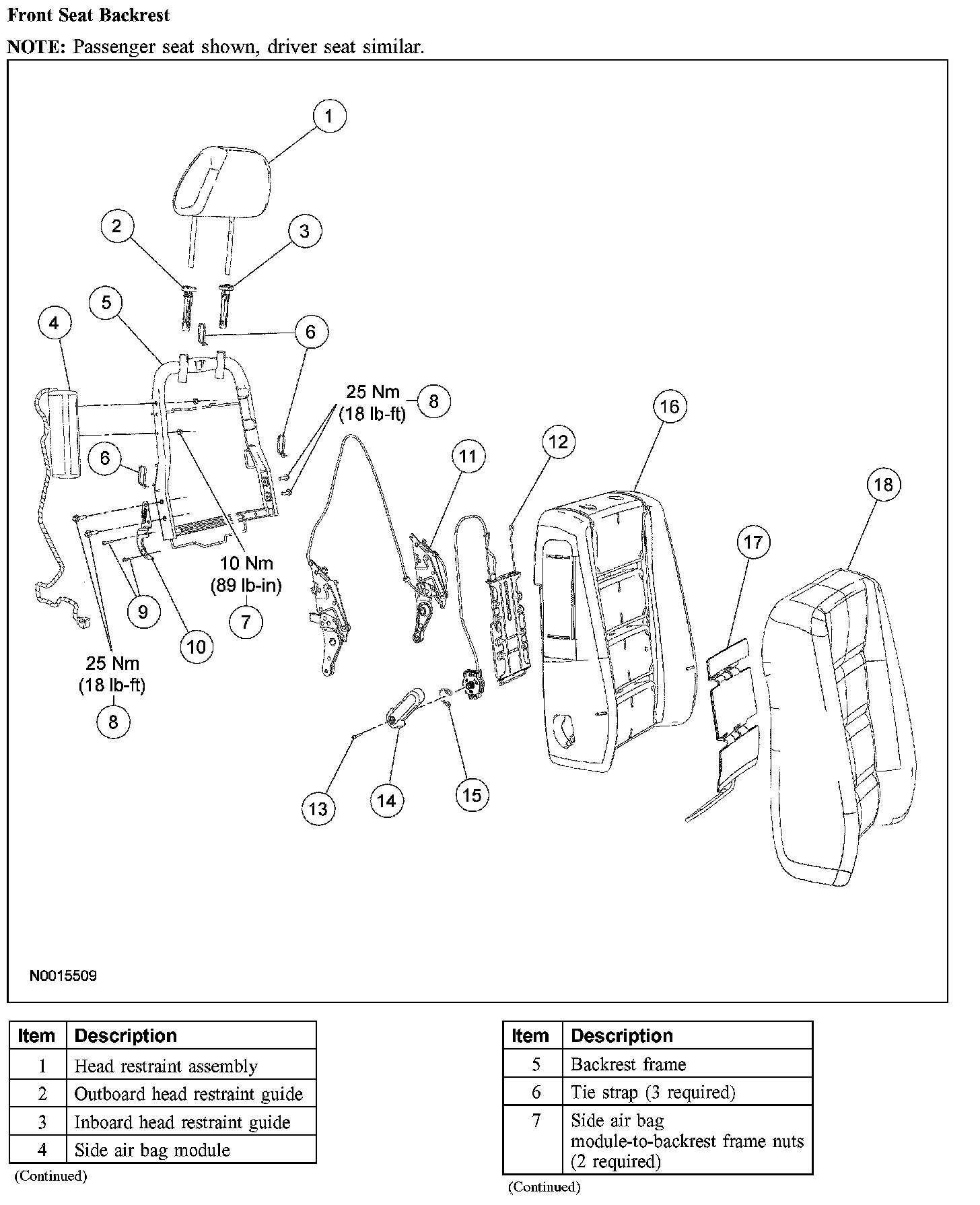

Front Seat Backrest (Part 1):

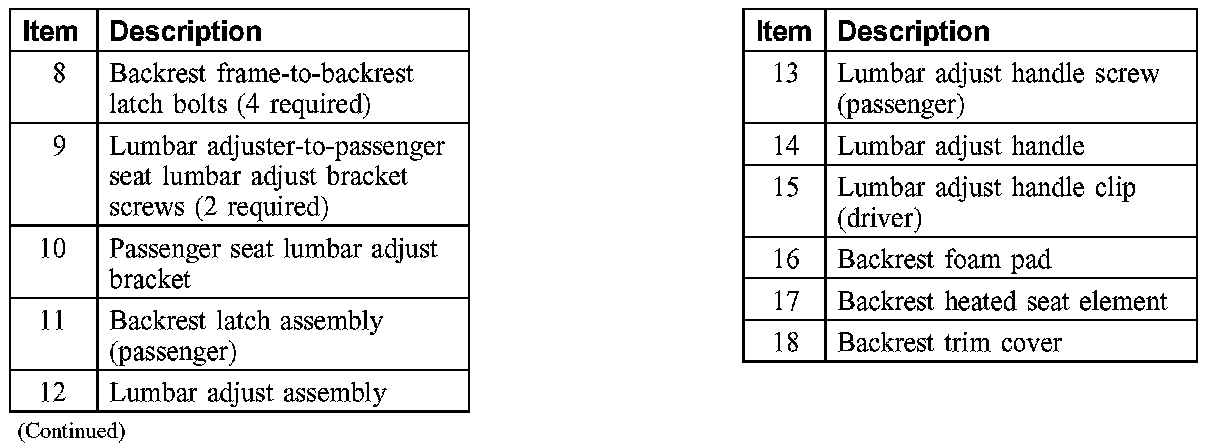

Front Seat Backrest (Part 2):

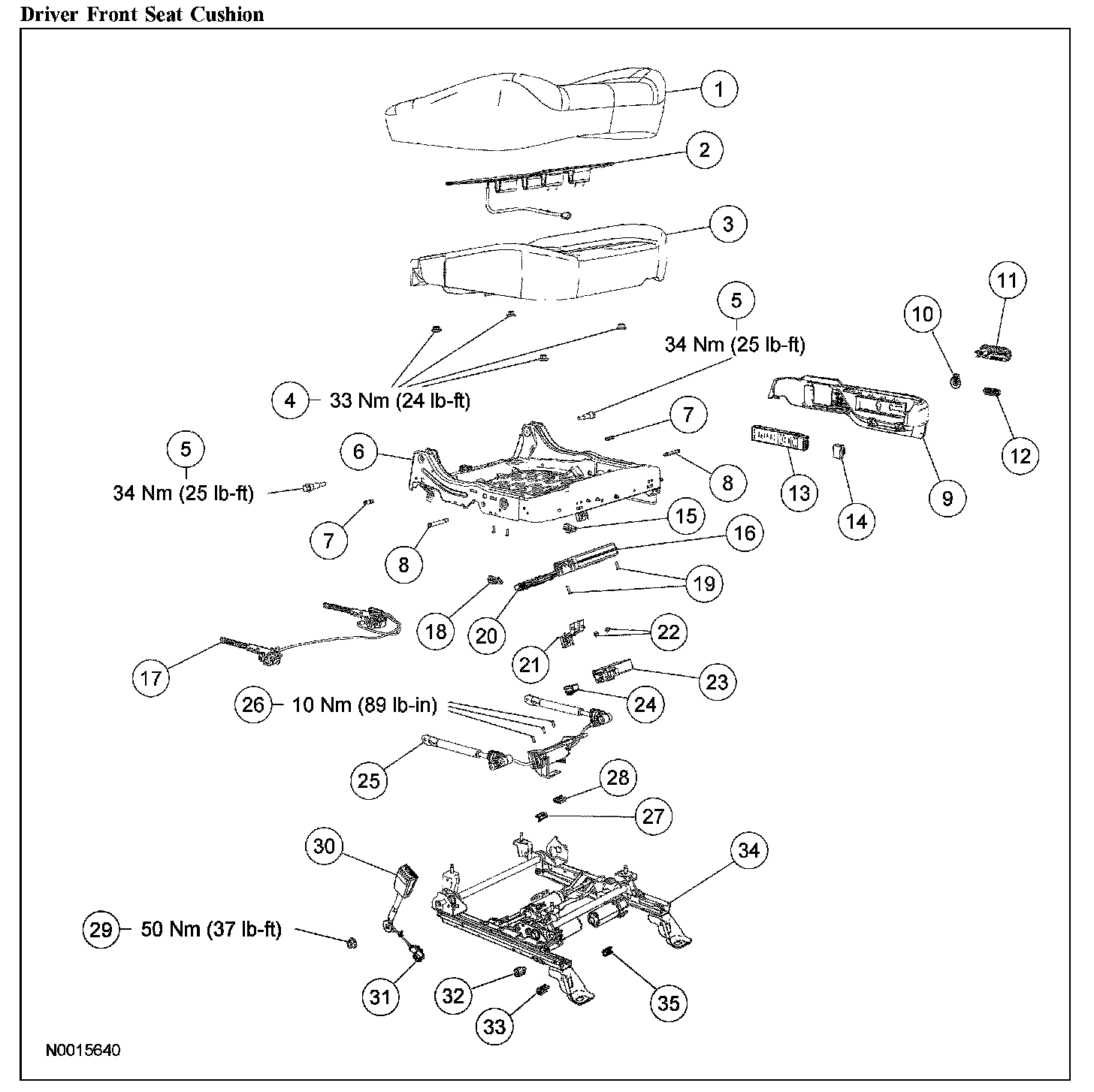

Driver Front Seat Cushion (Part 1):

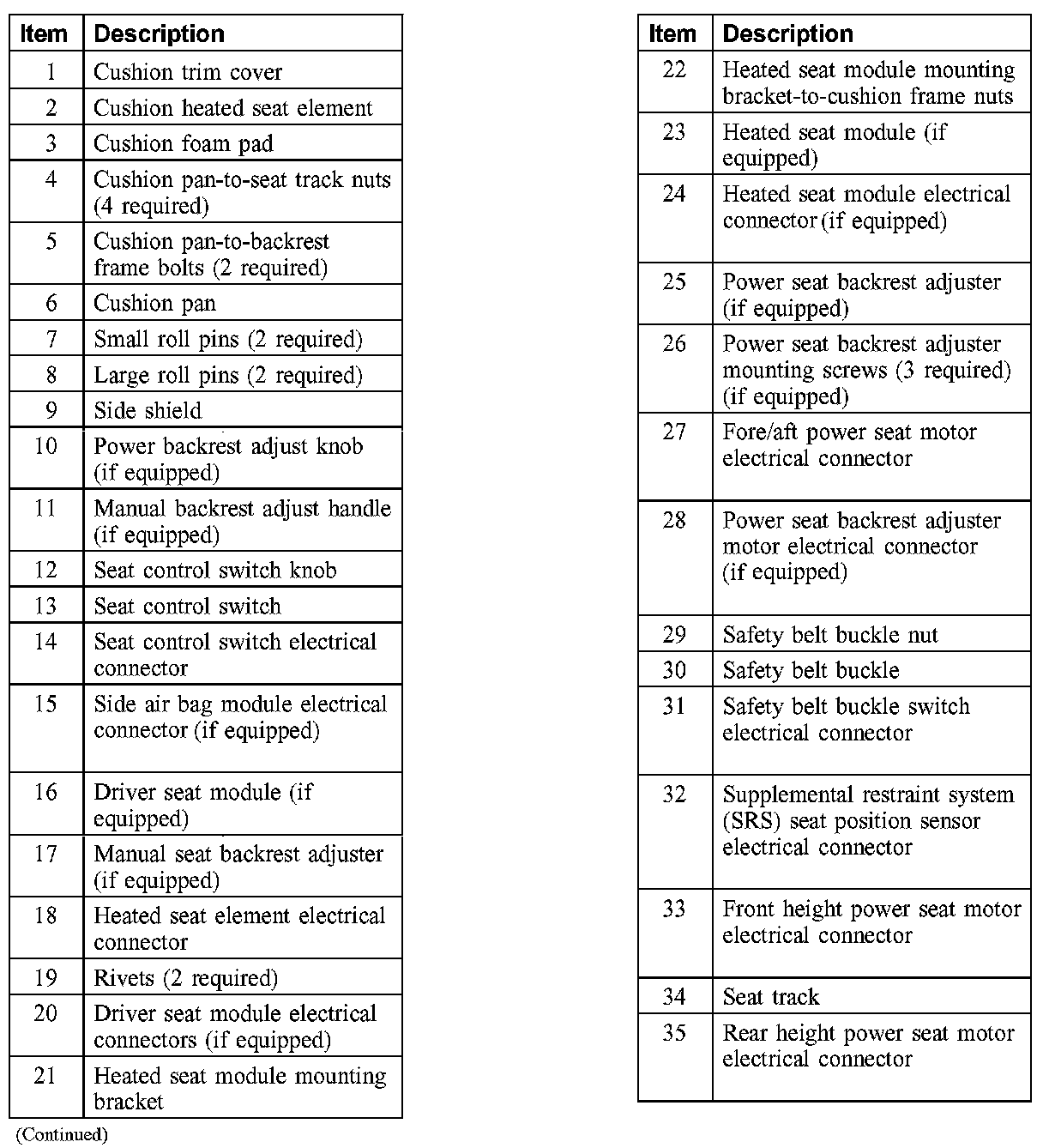

Driver Front Seat Cushion (Part 2):

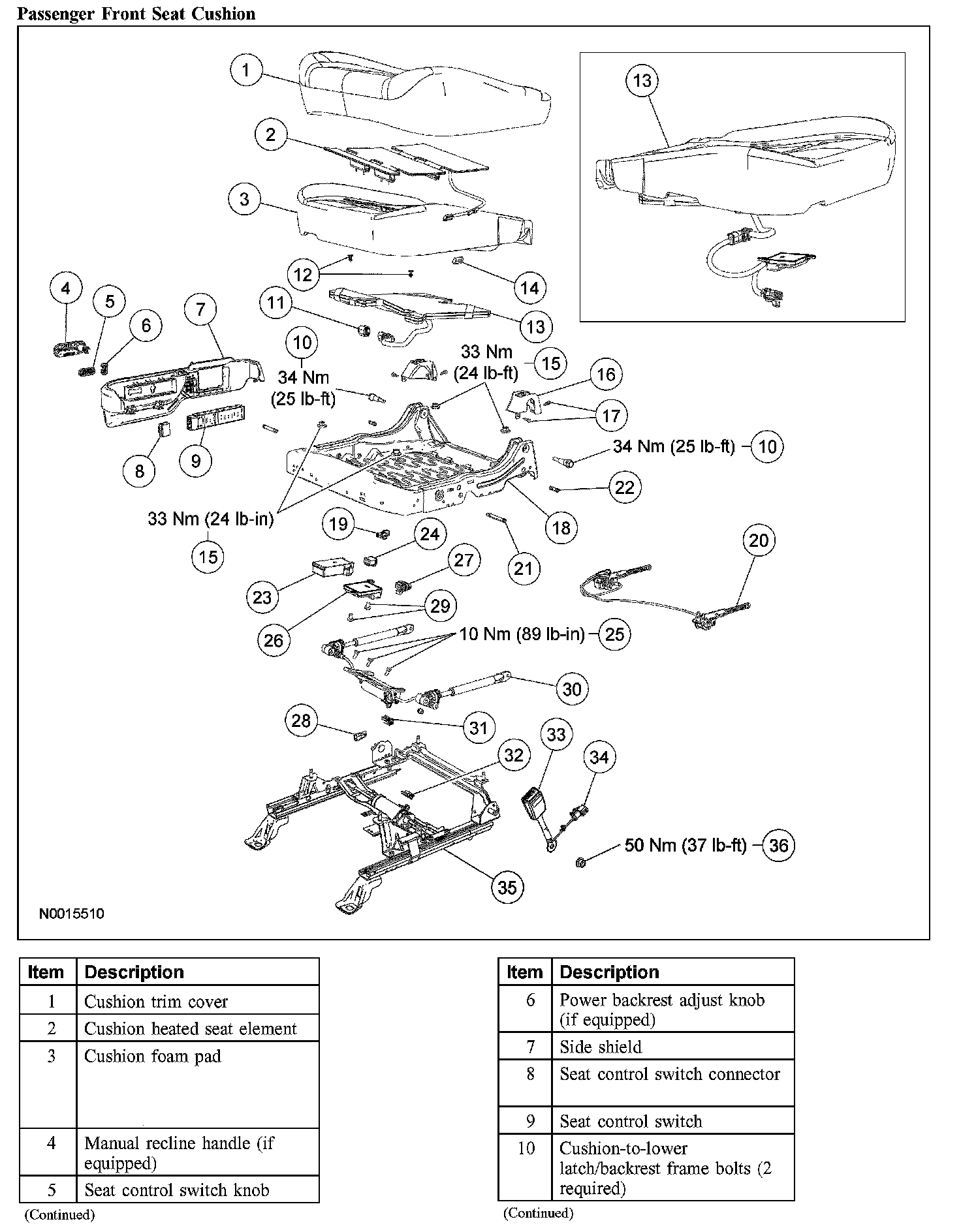

Passenger Front Seat Cushion (Part 1):

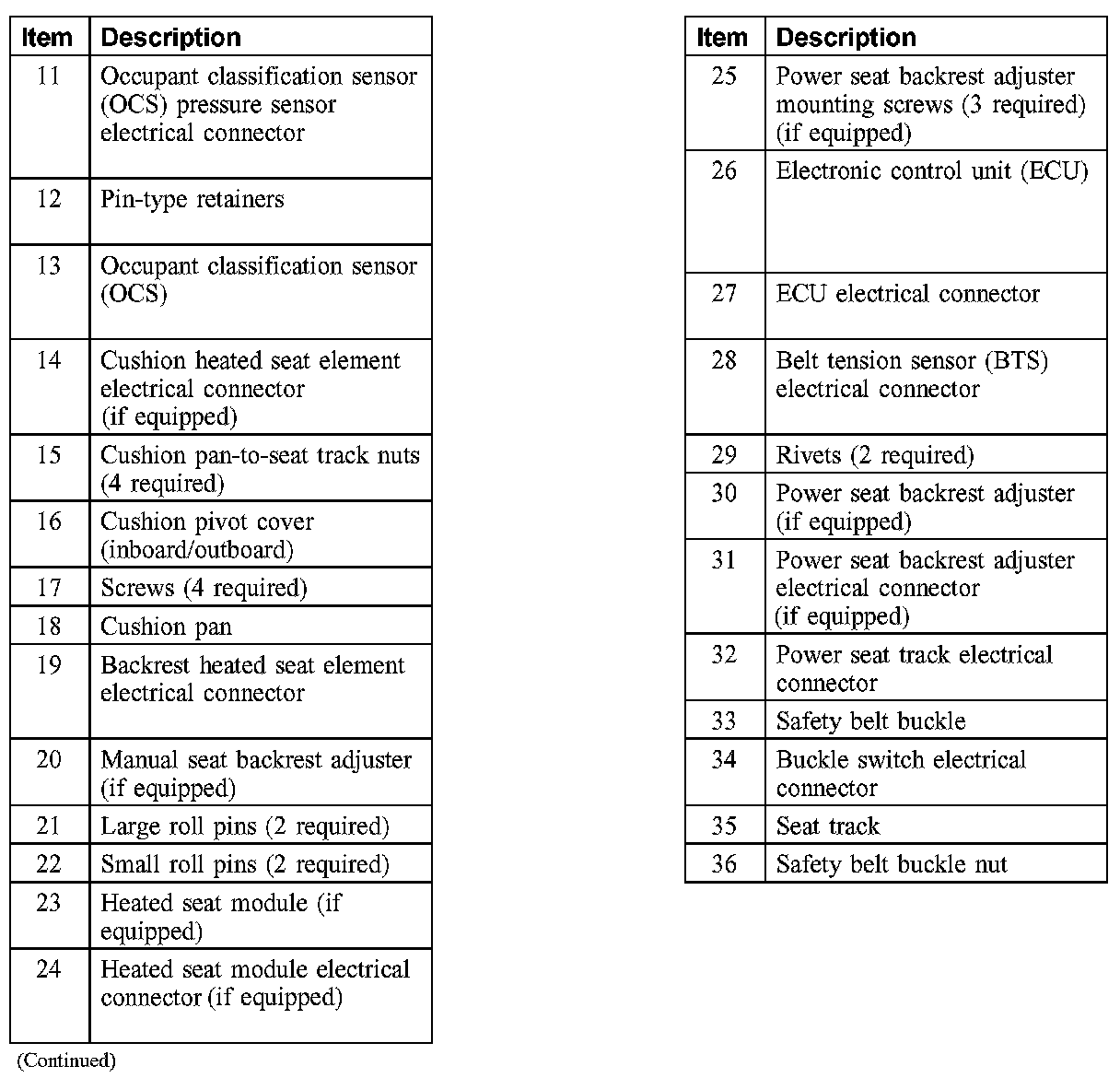

Passenger Front Seat Cushion (Part 2):

1. For additional information, refer to the procedures.
