REAR SEAT CUSHION COVER - THIRD ROWRemoval and Installation
1. NOTE: If damaged when removed, install new plastic rivets.

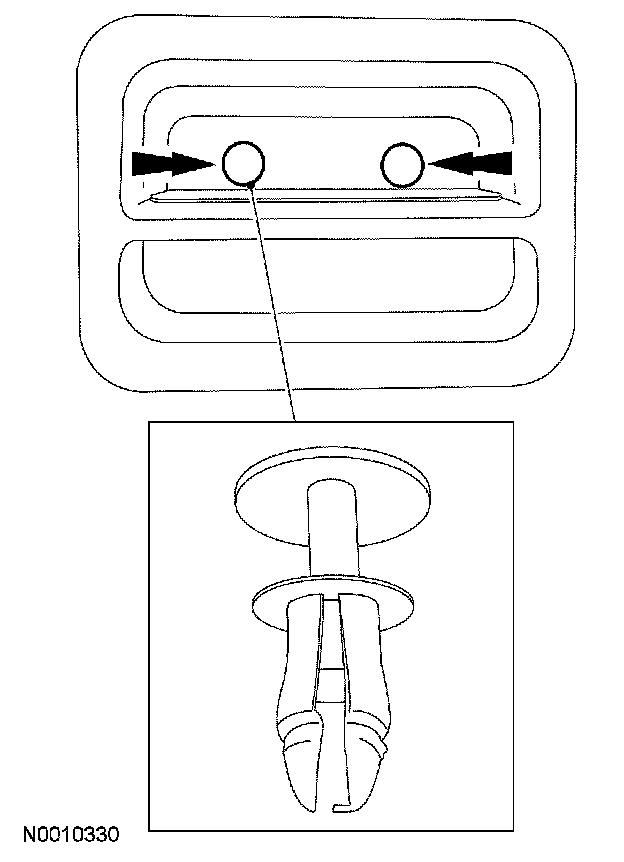

Remove the 2 rivets and pull the cushion handle out of the pocket.
- Using an appropriate tool, from under the rivet head, pry the rivet up.
- When removing the plastic rivet, make sure not to get under the insert or the rivet will not come out.
- Another method that can be used to remove the plastic rivets is to drive a screw partially into the rivet head and pull the screw and rivet head out. This will require new plastic rivets to be installed.
2. Separate the pivot release cable and casing and remove the pivot release handle.
3. Remove the 2 screws on each side at the bottom of the load floor panel.

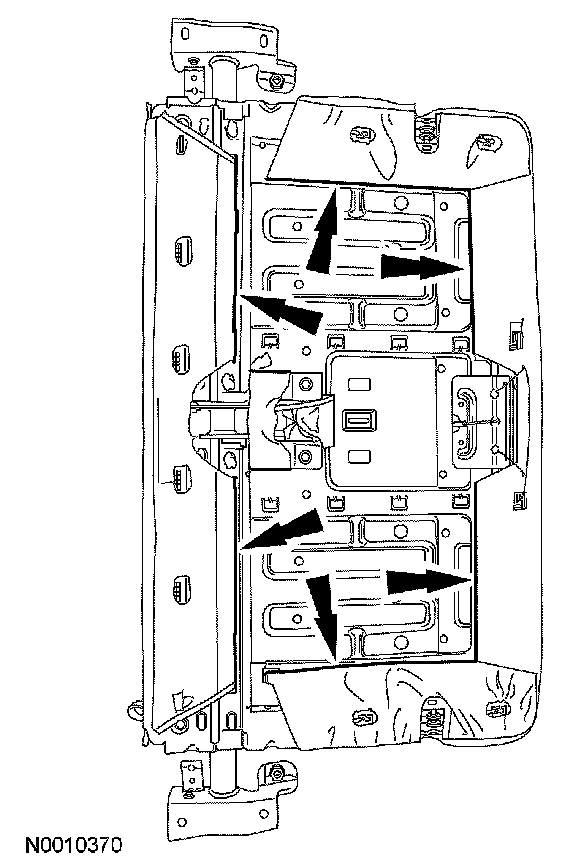

4. Pull out to release the retainers and remove the load floor panel.
- Use a suitable tool (pin-type retainer tool, etc.) to disengage the load floor from the seat.
5. Remove the screw, release the tab and remove the floor latch cover.
- For bench seats, remove 2 floor latch covers.
6. CAUTION: Use care when separating the seat back trim cover from the hook and loop strip, or the hook and loop strip can be torn from the seat back foam.
NOTE: Bench seat shown, 50/50 seat similar.
Release the cushion trim cover retainers from the cushion frame and remove the cushion trim cover.
- On assembly, the LATCH and child safety seat tether anchor must be accessible through the trim cover.
7. To install, reverse the removal procedure.
