Home >> Mercury >> 2005 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Roof Opening Panel Motor/Module Assembly C921

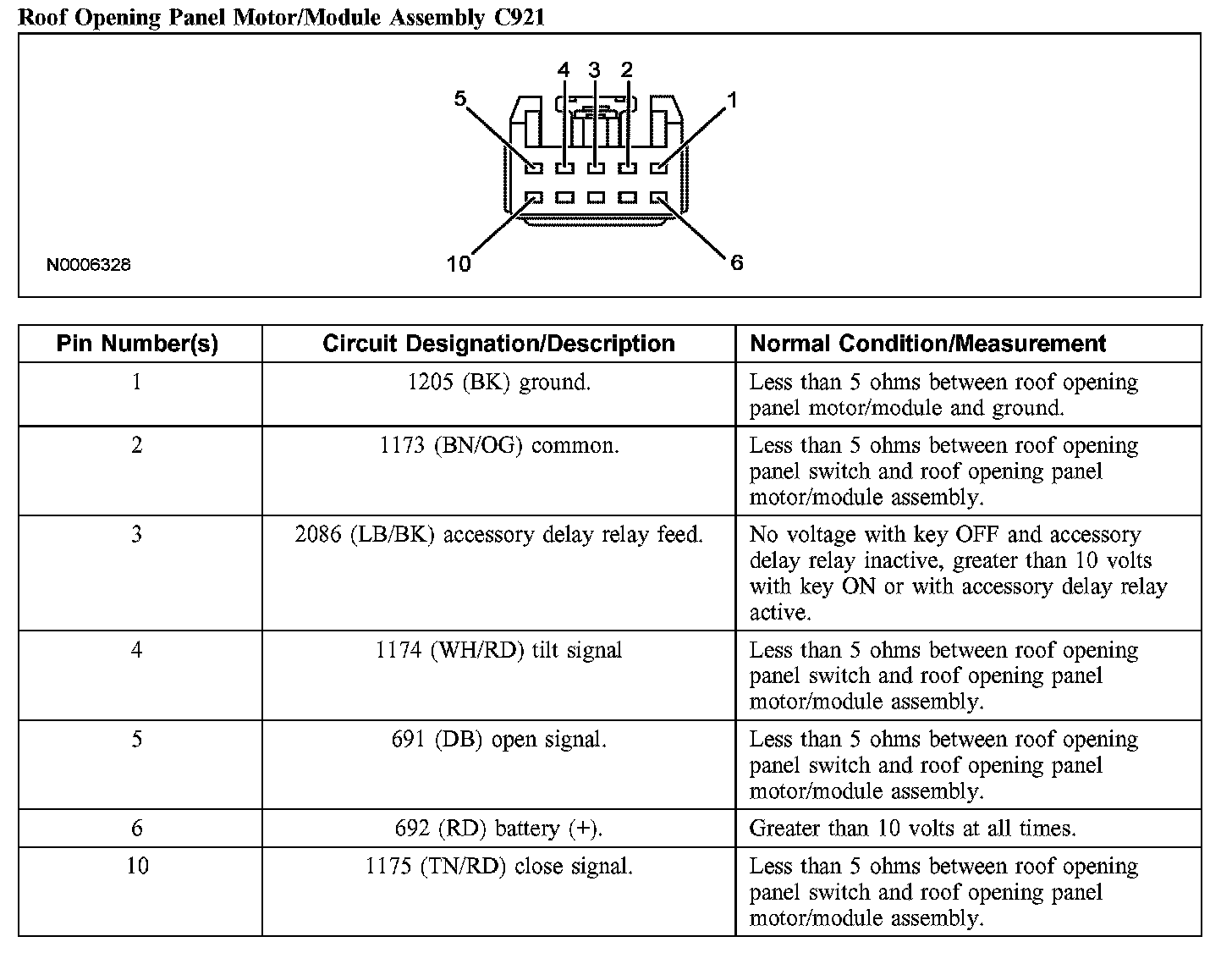

Roof Opening Panel Motor/Module Assembly C921

Roof Opening Panel Motor/Module Assembly C921:
