Roof Opening Panel Shield
ROOF OPENING PANEL SHIELDRemoval and Installation
1. Remove the headliner.

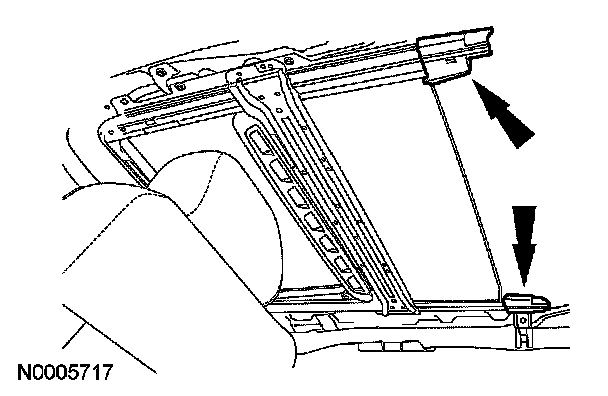

2. Remove the roof opening panel end caps.
3. NOTE: The 4 roof opening panel shield slides come as an assembly with the roof opening panel shield.
Slide the roof opening panel shield rearward to remove from the roof opening panel frame.
- To install, be sure that the 4 roof opening panel slides are installed on the roof opening panel shield before installing into the roof opening panel frame.
4. To install, reverse the removal procedure.
