Home >> Mercury >> 2005 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Auto-Dimming Mirror C911

Auto-Dimming Mirror C911

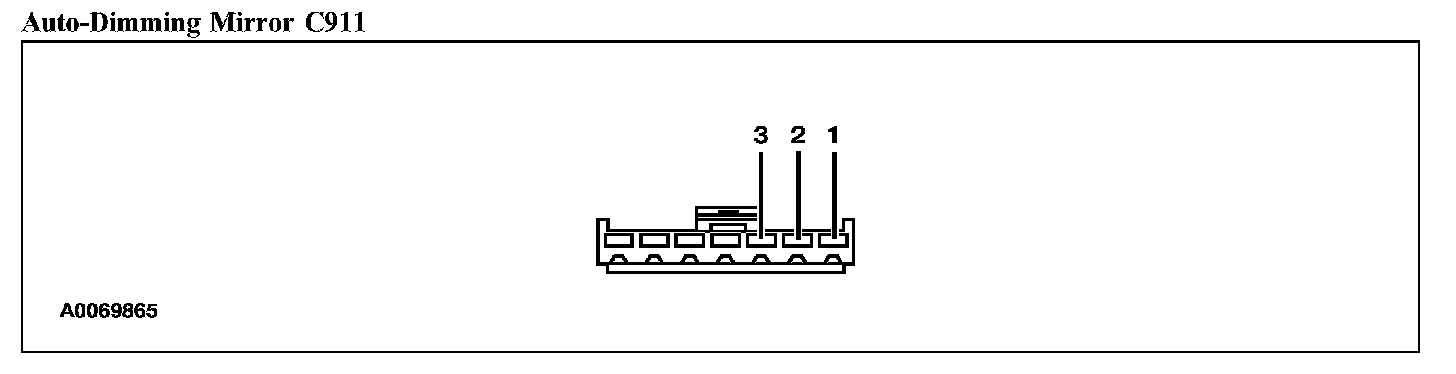

Auto-Dimming Mirror C911 (Part 1):

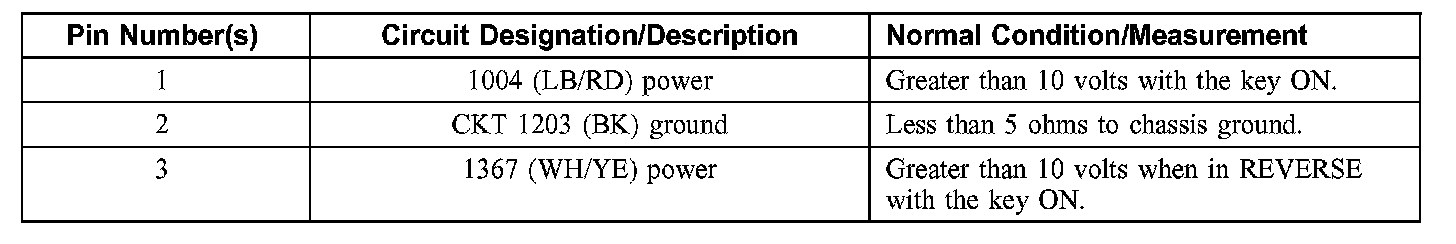

Auto-Dimming Mirror C911 (Part 2):
