Exterior Mirror Cover

EXTERIOR MIRROR COVER

Removal and Installation
1. Remove the exterior mirror glass.

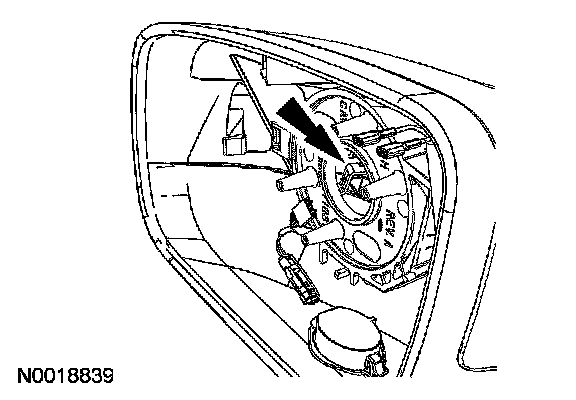

2. Remove the exterior mirror motor.

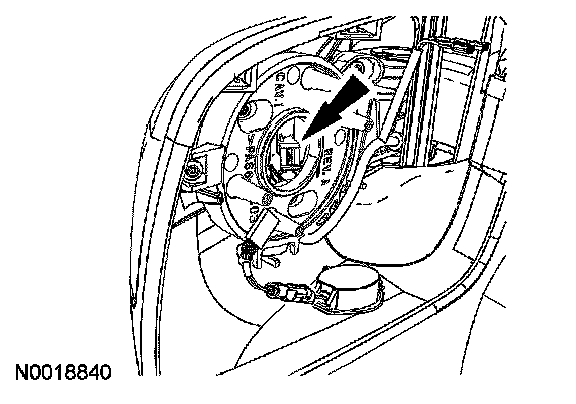

3. Disconnect the lower outboard locking tab.







4. Disconnect the lower inboard locking tab.

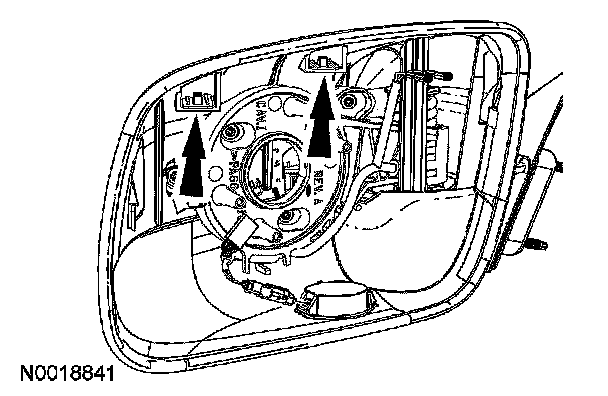

5. Disconnect the 2 upper locking tabs and remove the exterior mirror cover.
6. To install, reverse the removal procedure.
