Test F: The Doors Do Not Lock/Unlock Using The Remote Keyless Entry (RKE) Transmitter

PINPOINT TEST F: THE DOORS DO NOT LOCK/UNLOCK USING THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER

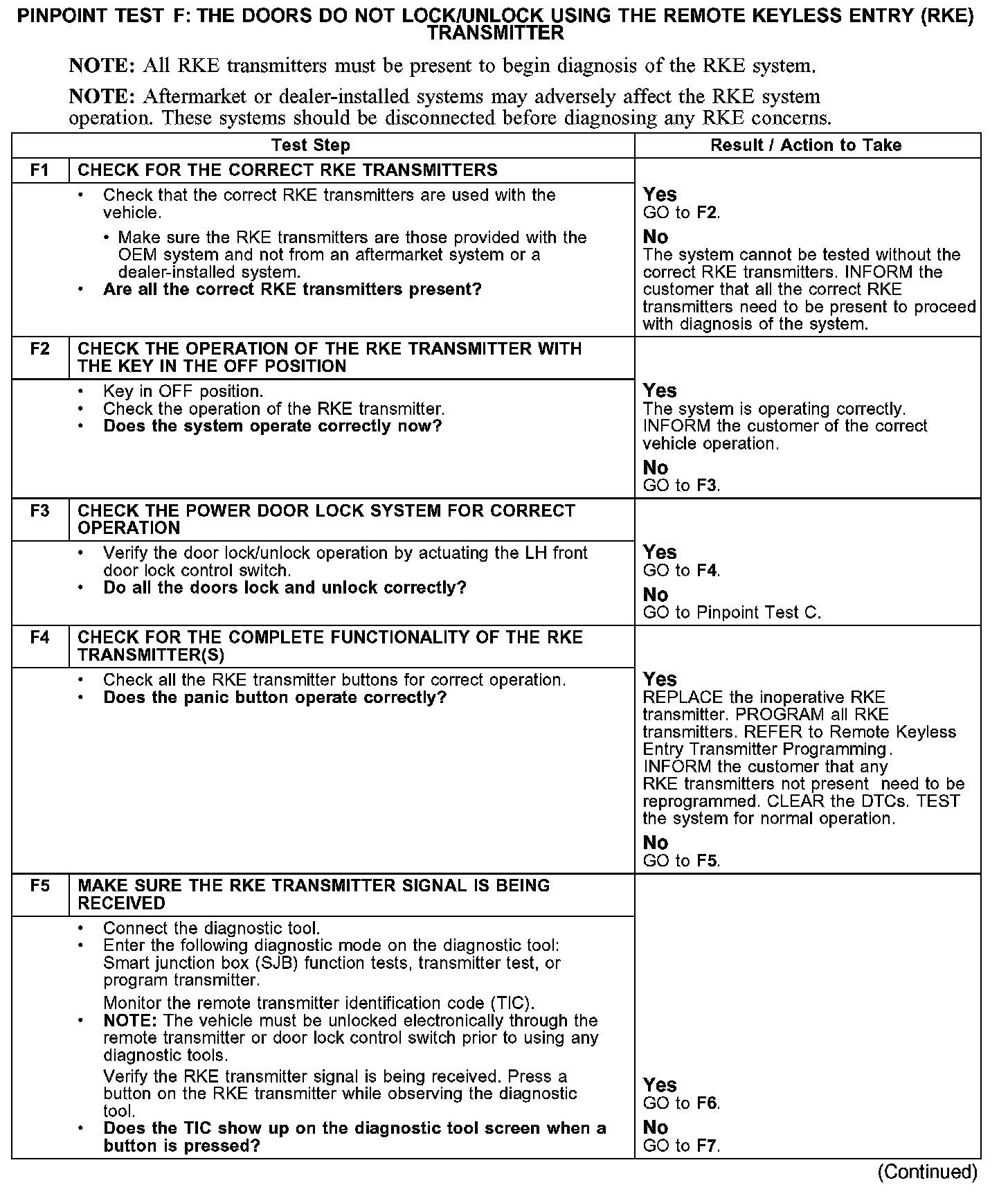

F1-F5:

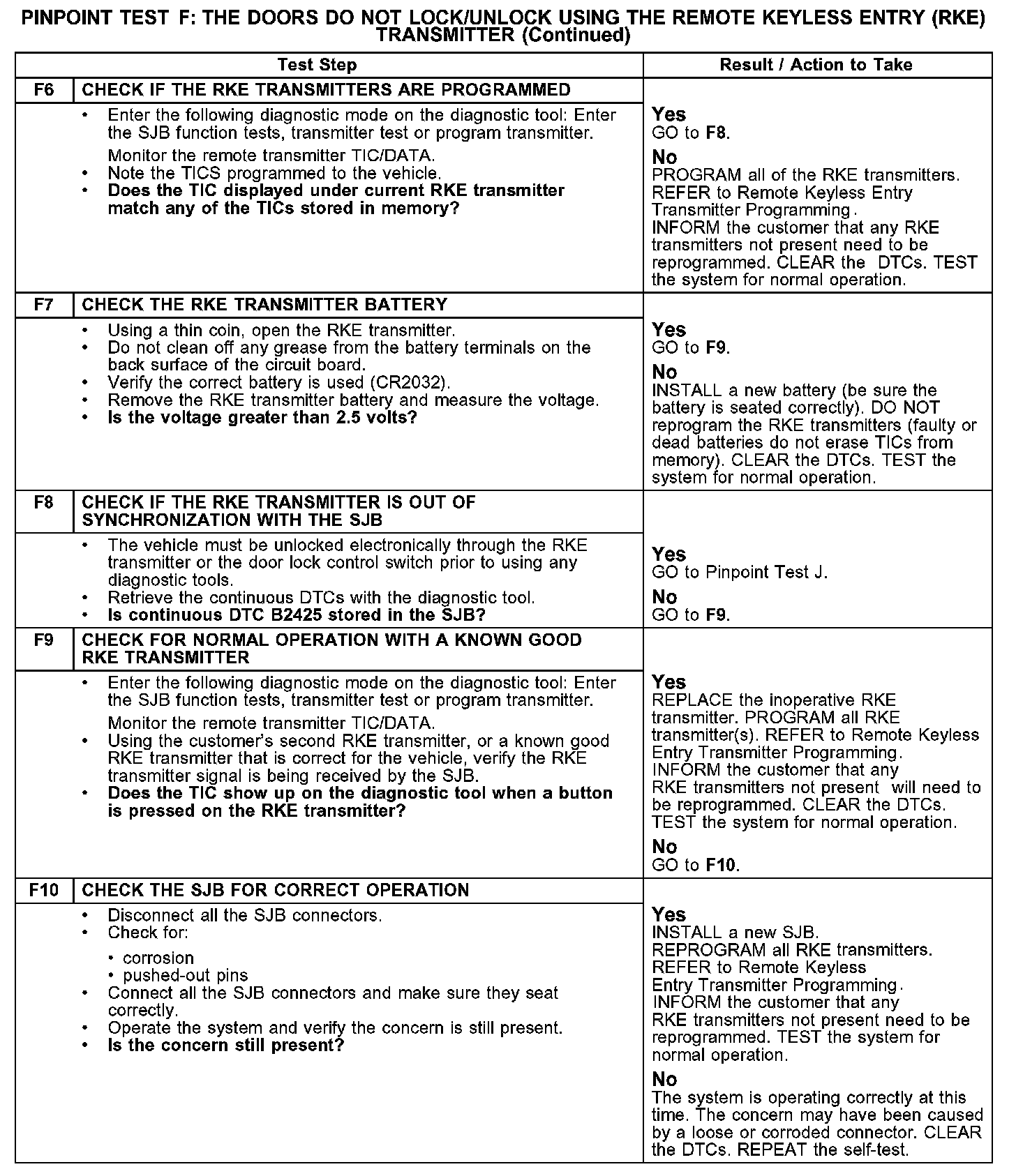

F6-F10:

Normal Operation
The smart junction box (SJB) receives voltage for the power locks on circuit 906 (RD/OG). The door lock actuators are powered through the SJB through fuse 3 (25A). The SJB energizes the lock or unlock relays based upon input from the remote keyless entry (RKE) keypad. If the SJB energizes circuit 1088 (PK/WH) the door lock actuators will unlock the doors and the liftgate (wagon). If the SJB energizes circuit 1763 (PK/BK) the door lock actuators will lock the doors and the liftgate (wagon).

Possible Causes
- RKE transmitter
- SJB
