Home
>>
Mercury
>>
2005
>>
Montego AWD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>

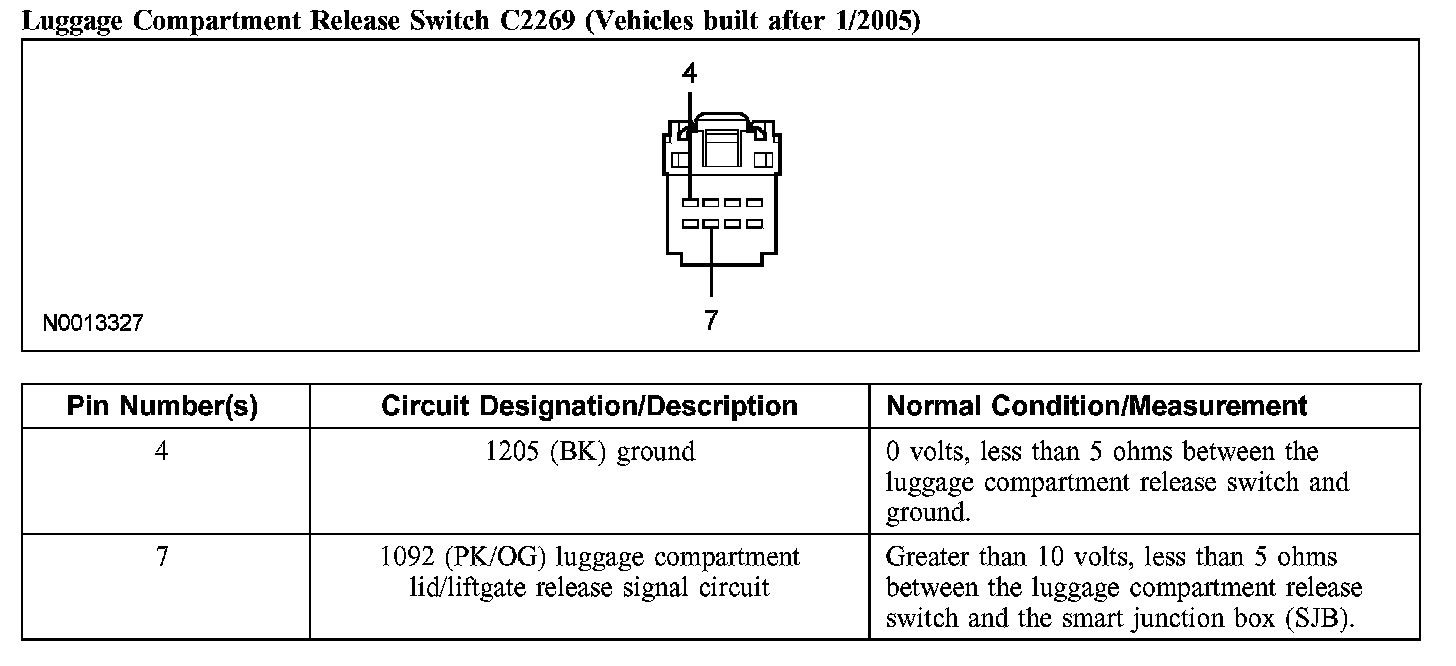

Luggage Compartment Release Switch C2269 (Vehicles Built After 1/2005)
Luggage Compartment Release Switch C2269 (Vehicles Built After 1/2005)
Luggage Compartment Release Switch C2269 (Vehicles Built After 1/2005):
