Mercury
>>
2005
>>
Montego AWD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>

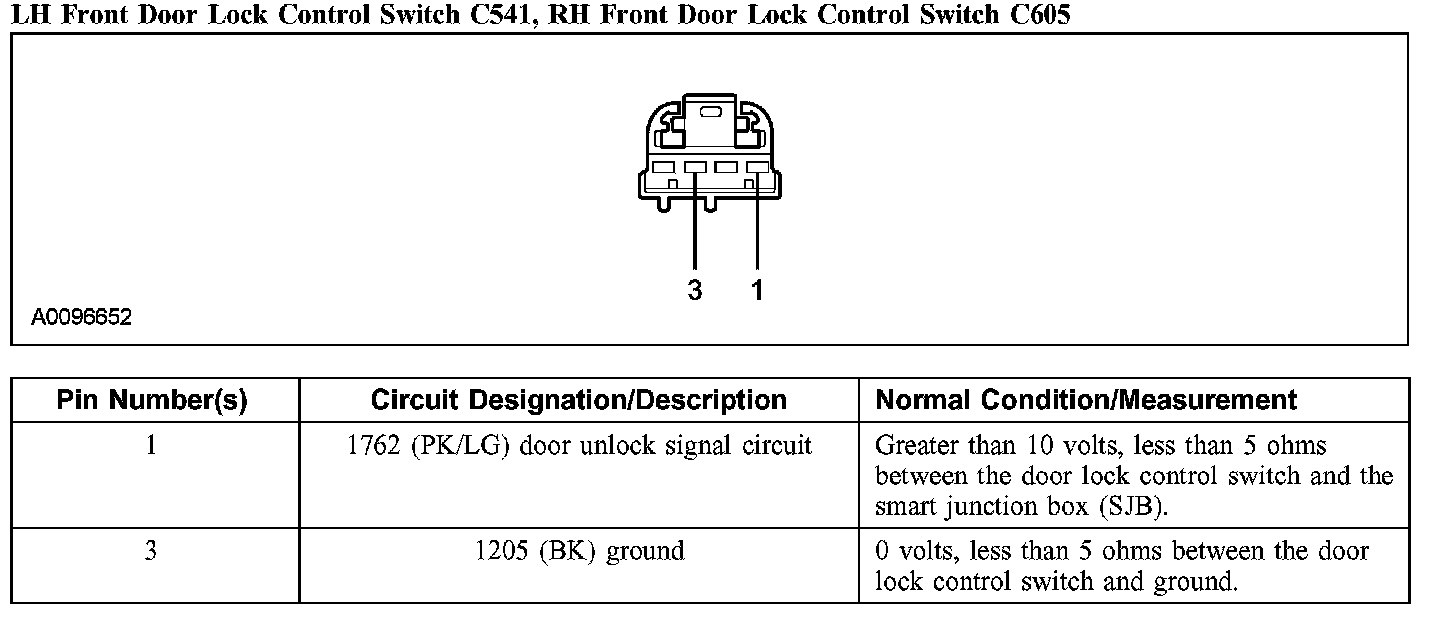

LH Front Door Lock Control Switch C541, RH Front Door Lock Control Switch C605
LH Front Door Lock Control Switch C541, RH Front Door Lock Control Switch C605
LH Front Door Lock Control Switch C541, RH Front Door Lock Control Switch C605:
