Rear Shelf: Service and Repair

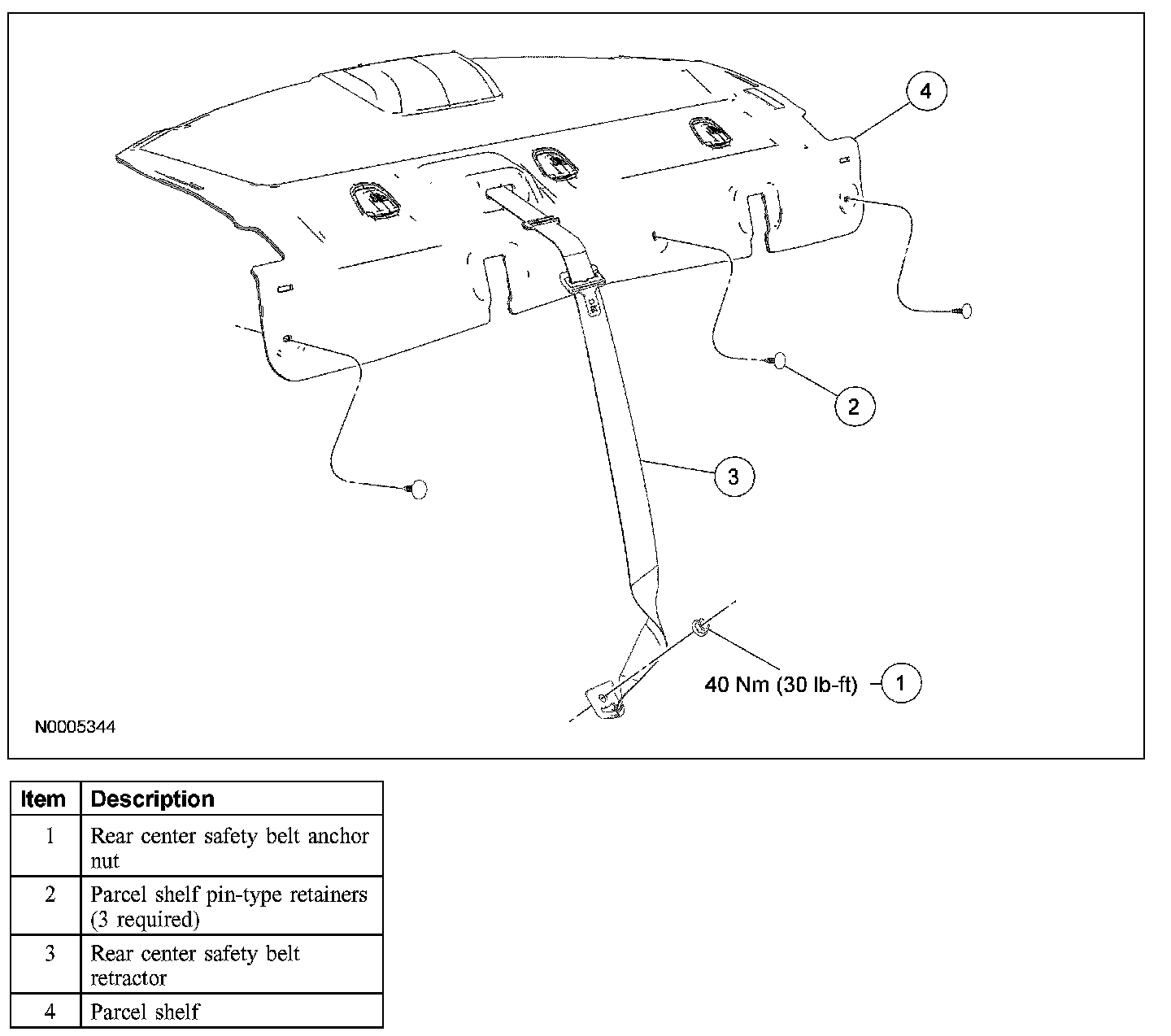

PARCEL SHELF







Removal and Installation
1. Remove the rear seat cushion.
2. Remove the rear seat bolsters.
3. Remove the C-pillar trim panel.
4. Remove the rear center safety belt anchor nut.
- To install, tighten to 40 Nm (30 lb-ft).

5. Disconnect the high-mounted stop lamp electrical connector.
6. Remove the 3 parcel tray pin-type retainers.
7. Pull the parcel tray toward the front of the vehicle to remove.
8. To install, reverse the removal procedure.
