Floor Console - Front

FLOOR CONSOLE - FRONT







Removal and Installation
1. Remove the floor shifter trim ring.
2. Remove the floor console center finish panel.
- To install, apply 110 Nm (81 lb-ft) of force to the Dylock area in the front of the panel.

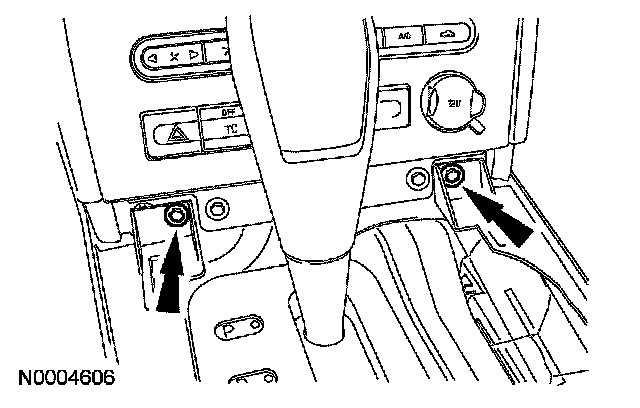

3. NOTE: Five Hundred, Montego shown; Freestyle similar.

Remove the 2 floor console front screws.

4. Remove the front floor console storage bin.
5. Unscrew the floor shifter knob.
6. Remove the floor shifter trim ring.
7. Remove the floor console center finish panel.

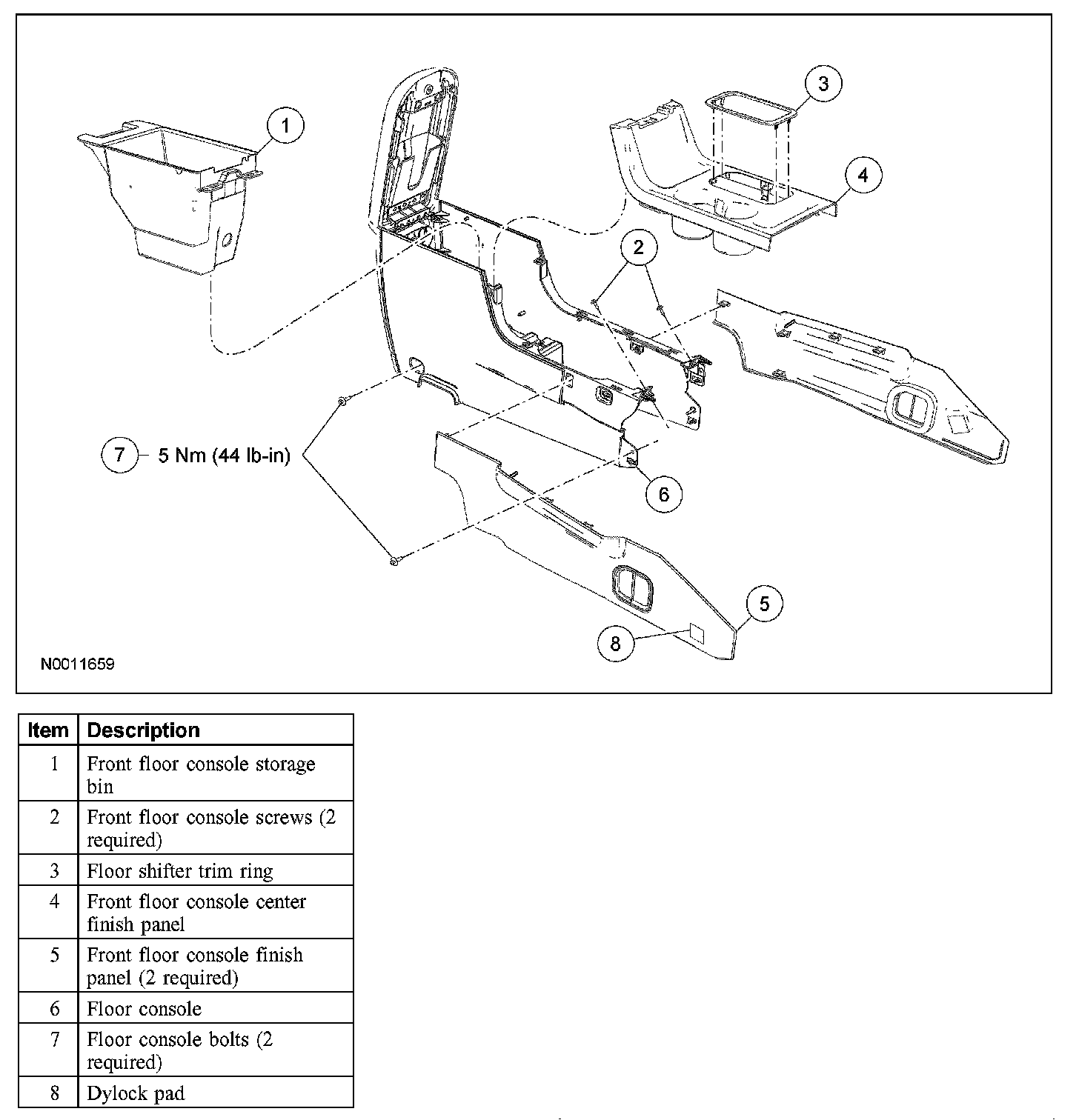

8. Remove the 4 front floor console bolts.
- To install, tighten to 5 Nm (44 lb-in).

9. Remove the floor console.
10. To install, reverse the removal procedure.
