Body - Trunk Lid Hard to Close

TSB 05-19-7

10/03/05

TRUNK LID HARD TO CLOSE

FORD:
2005 Five Hundred

MERCURY:
2005 Montego

ISSUE
Some 2005 Five Hundred/Montego vehicles may exhibit a trunk lid that is hard to close.

ACTION
Trim the appearance seal from around the latch.

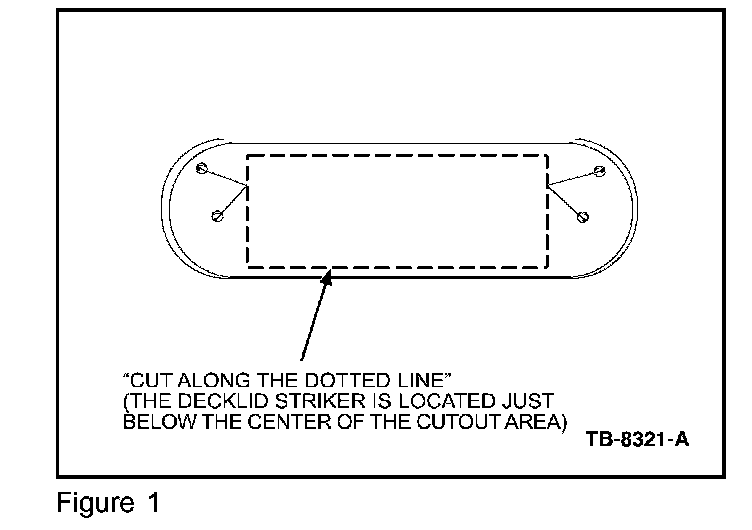

Open the trunk lid, cut and remove approximately 3 inches (75 mm) as outlined in Figure 1.

WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage

OPERATION DESCRIPTION TIME

051907A 2005 Montego/Five 0.2 Hr.
Hundred: Trim The
Appearance Seal From
Around The Latch

DEALER CODING
CONDITION
BASIC PART NO. CODE
7040110 42

OASIS CODES: 111000, 112000
