Luggage Compartment Lid Latch

LUGGAGE COMPARTMENT LID LATCH







Removal and Installation
1. Remove the luggage compartment lid trim cover.

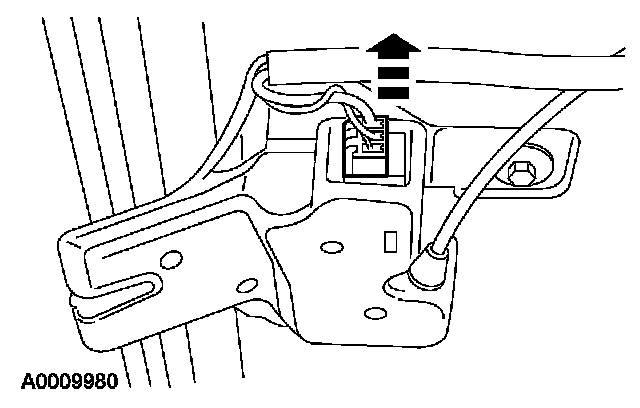

2. Disconnect the luggage compartment lid latch electrical connector.

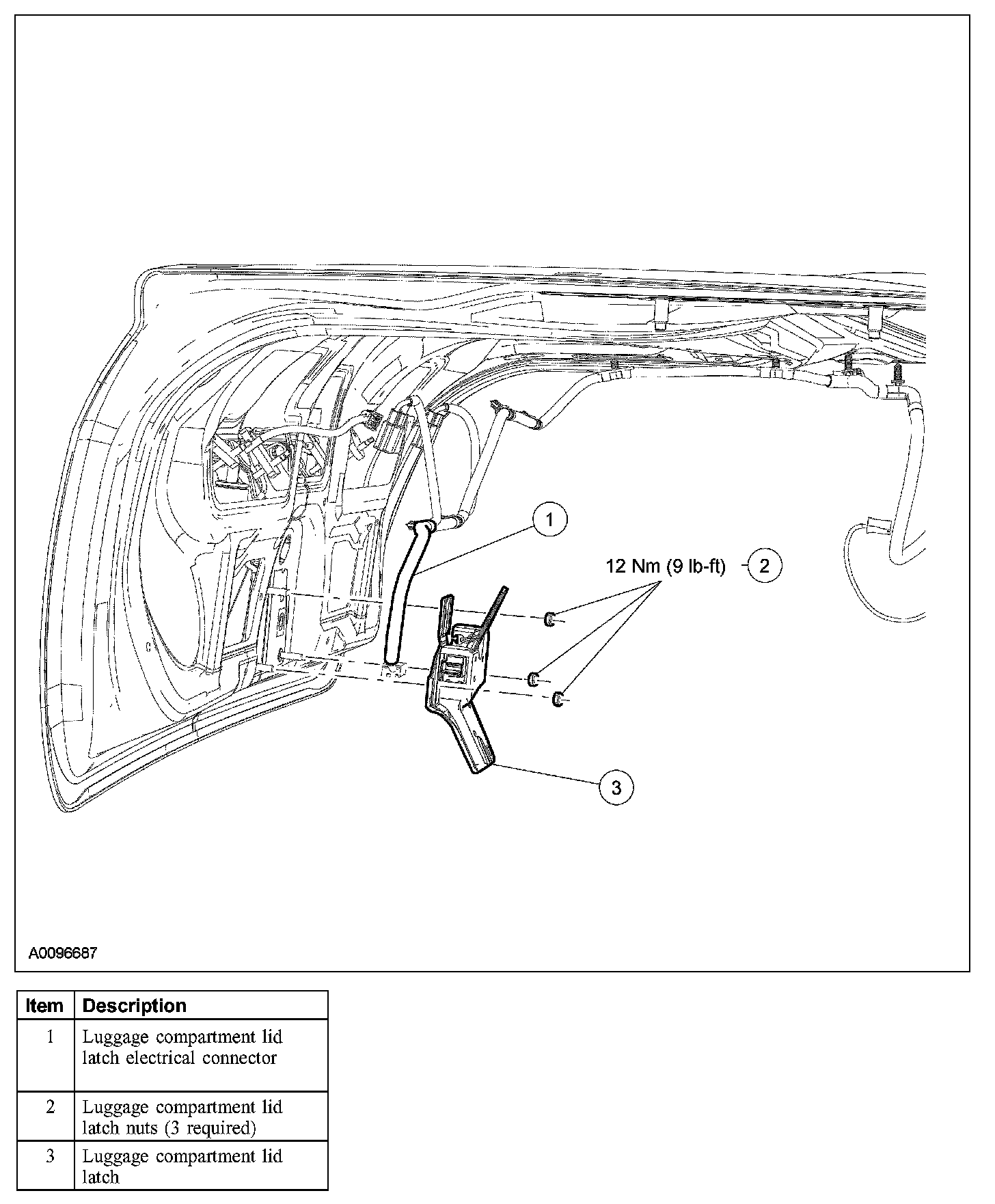

3. Remove the 3 nuts and the luggage compartment lid latch.
- To install, tighten to 12 Nm (9 lb-ft).

4. To install, reverse the removal procedure.
