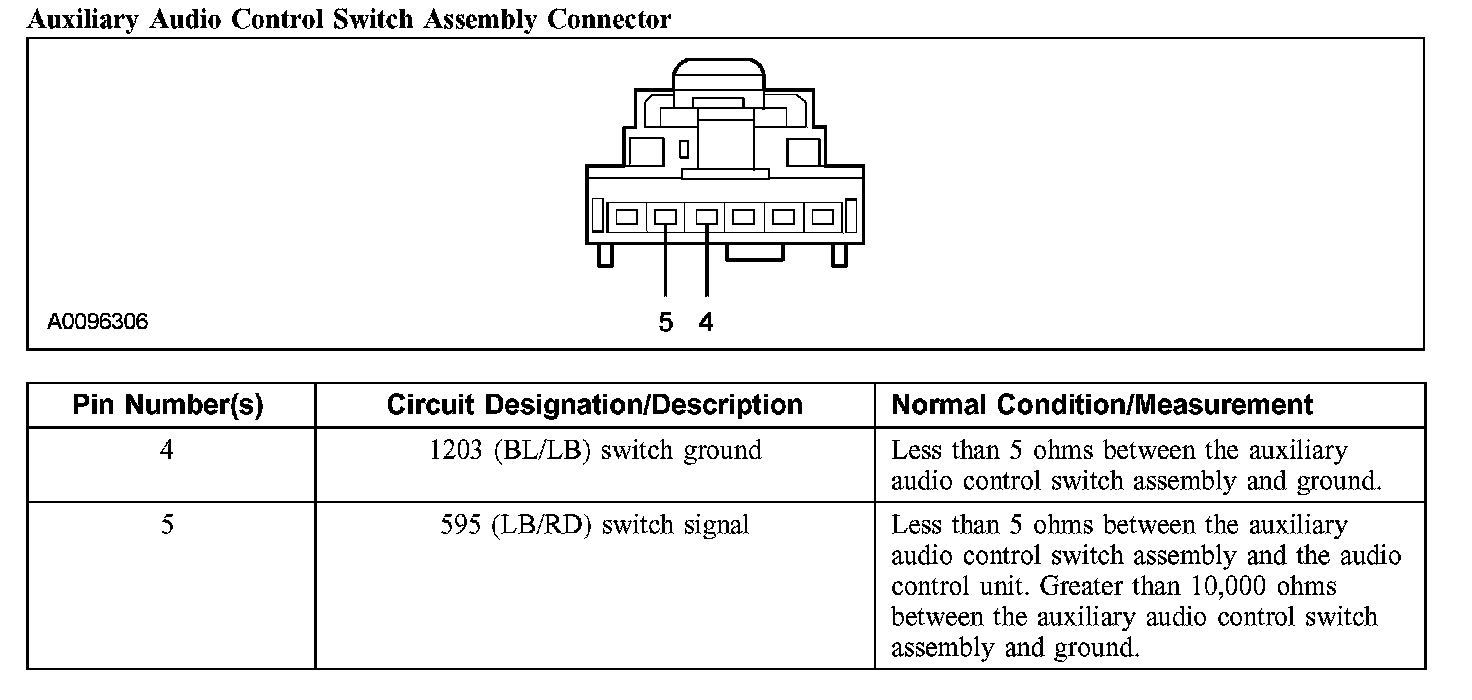

Auxiliary Audio Control Switch Assembly Connector

Auxiliary Audio Control Switch Assembly Connector:
