Amplifier: Service and Repair

SUBWOOFER AMPLIFIER












Removal and Installation

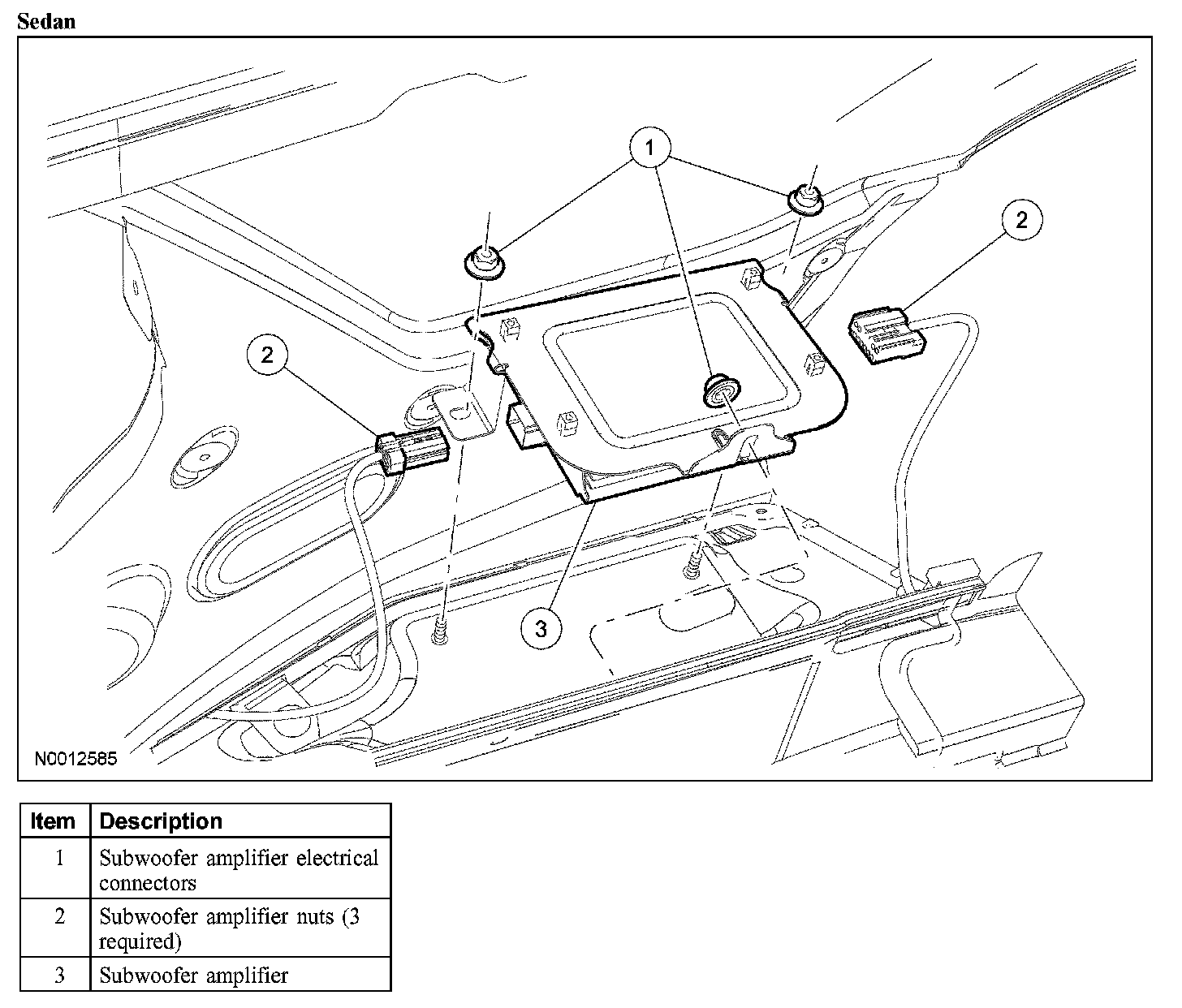

Sedan
1. Remove the LH rear trunk trim.
2. Remove the 3 nuts and the subwoofer amplifier.
- Disconnect the electrical connectors.

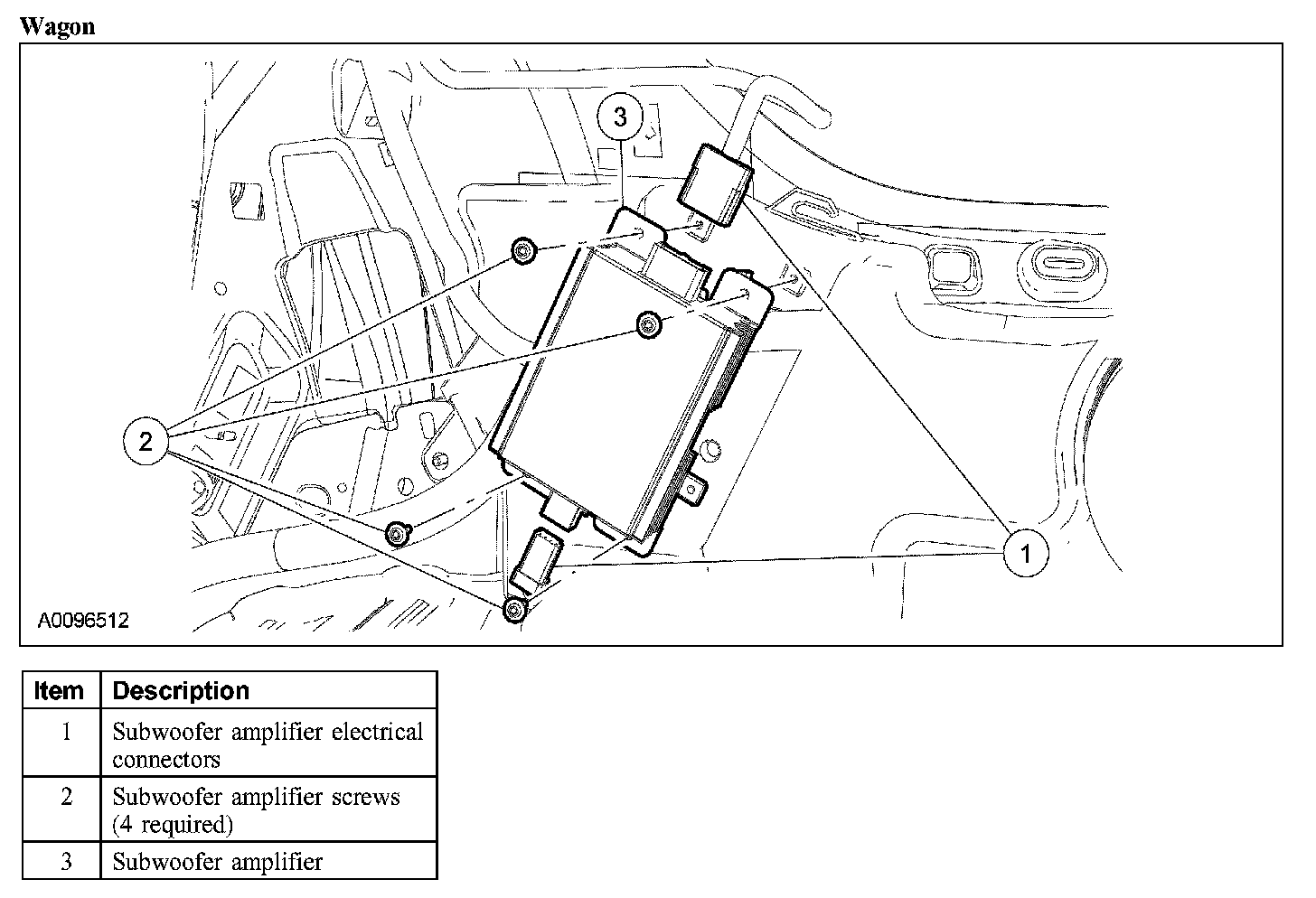

Wagon
3. Remove the RH rear quarter trim panel.
4. Remove the 4 screws and the subwoofer amplifier.
- Disconnect the electrical connectors.

All Vehicles
5. To install, reverse the removal procedure.
