Parking Aid Sensor LH Outer C4009, LH Inner C4010, RH Outer C4011, RH Inner C4012

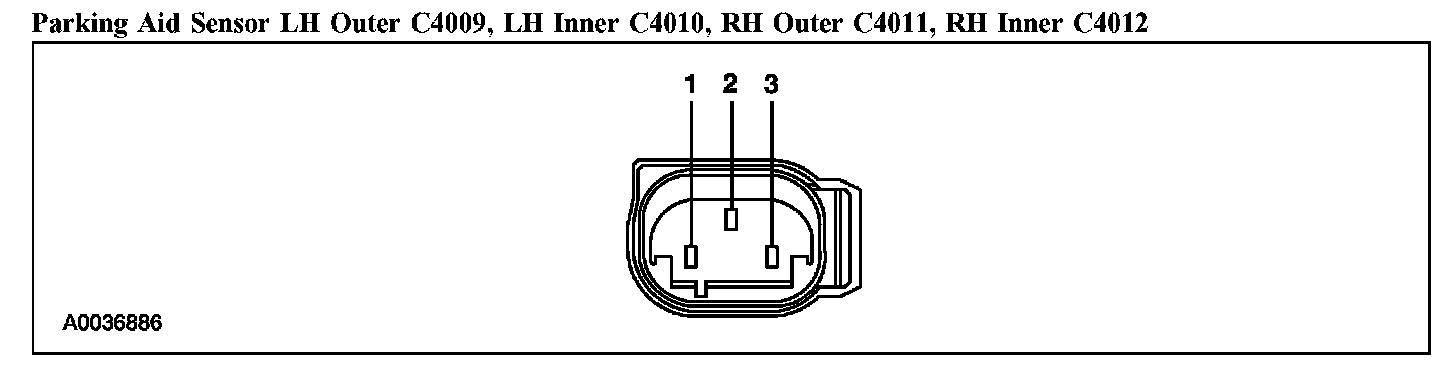

Parking Aid Sensor LH Outer C4009, LH Inner C4010, RH Outer C4011, RH Inner C4012

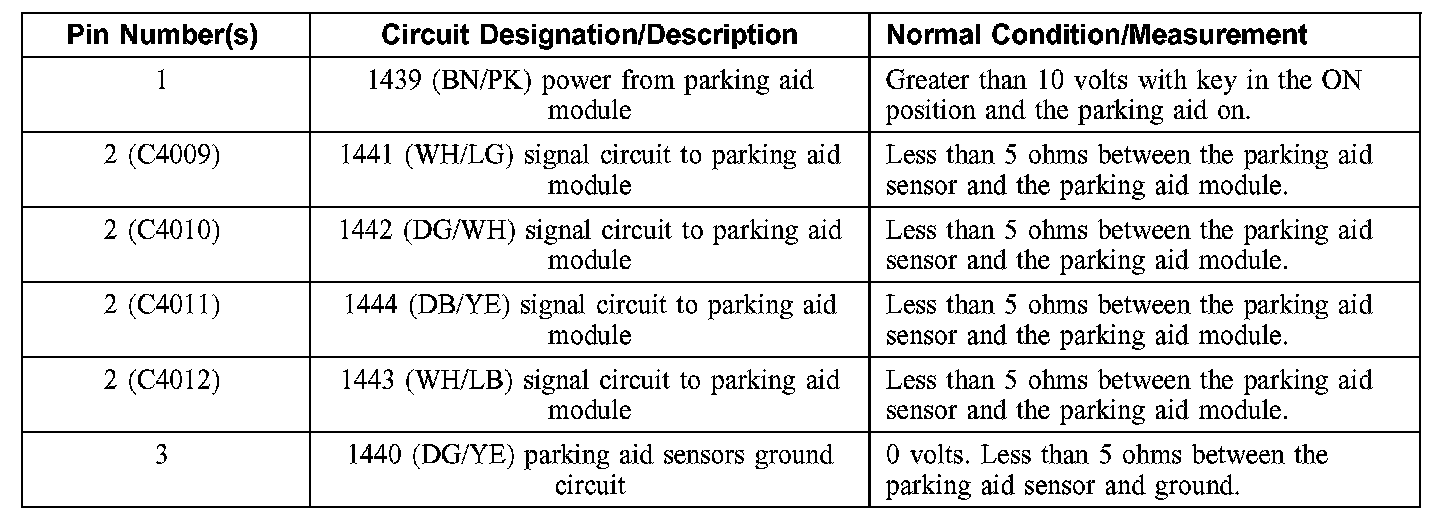

Parking Aid Sensor LH Outer C4009, LH Inner C4010, RH Inner C4012 (Part 1):
Parking Aid Sensor LH Outer C4009, LH Inner C4010, RH Inner C4012 (Part 2):
