Alarm System Transponder: Service and Repair

PASSIVE ANTI-THEFT SYSTEM (PATS) TRANSCEIVER







Removal and Installation

1. CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

Disconnect the battery.

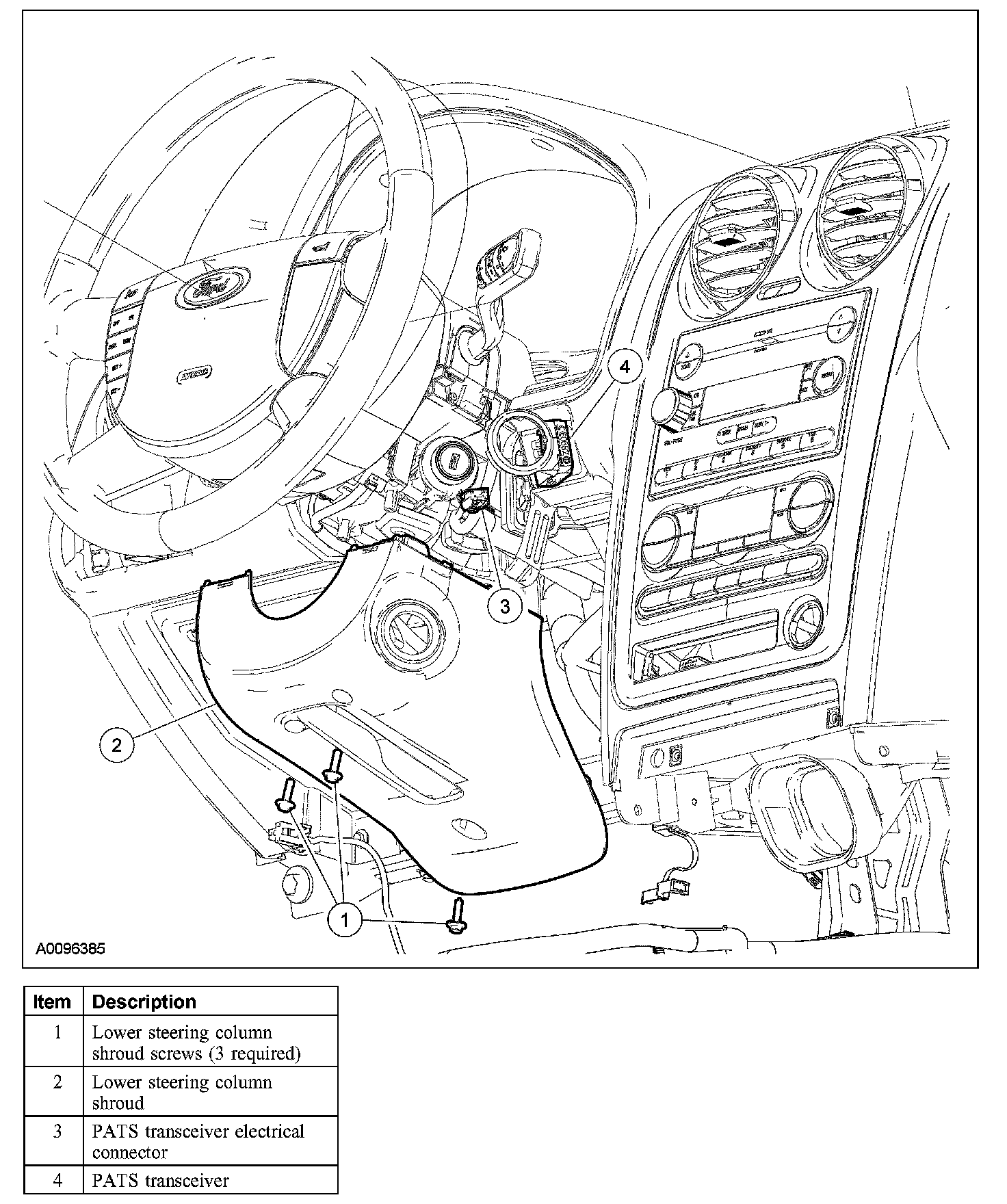

2. Remove the steering column cover.
3. Remove the 3 screws and the lower steering column shroud.
4. Disconnect the PATS transceiver electrical connector.
5. Release the tabs and remove the PATS transceiver.
6. To install, reverse the removal procedure.
