Home >> Mercury >> 2005 >> Montego 2WD V6-3.0L VIN 1 >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Electronic Manual Temperature Control (EMTC) Module C294a

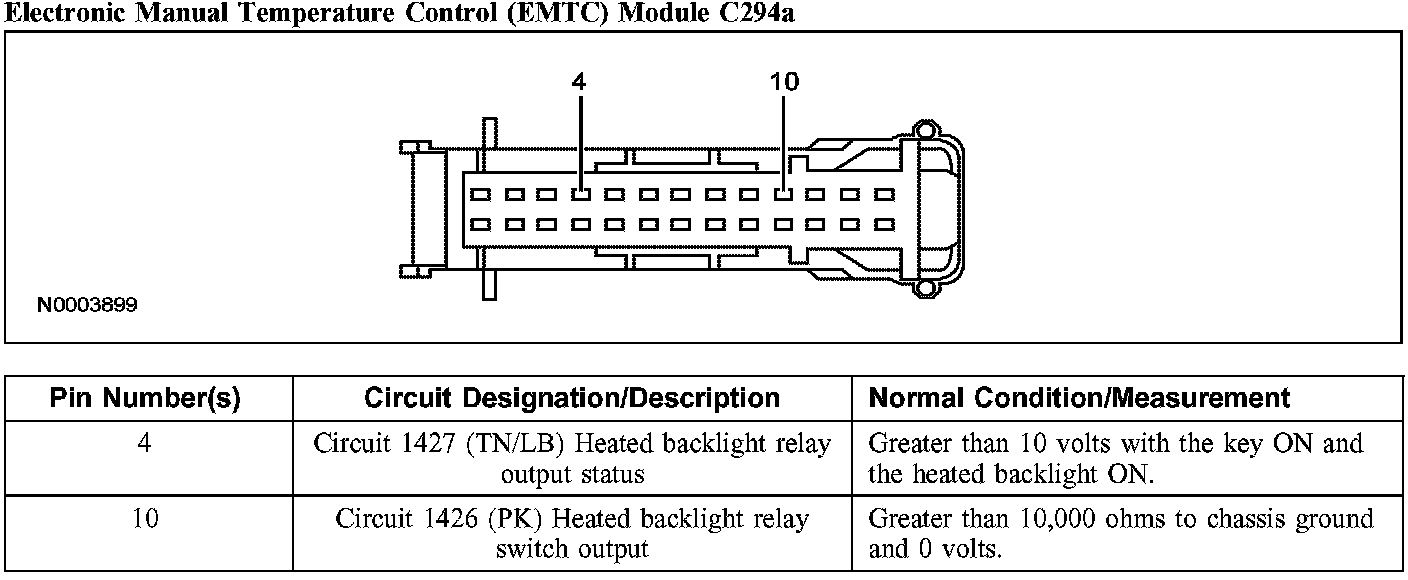

Electronic Manual Temperature Control (EMTC) Module C294a

Electronic Manual Temperature Control (EMTC) Module C294a:
