External Controls

External Controls

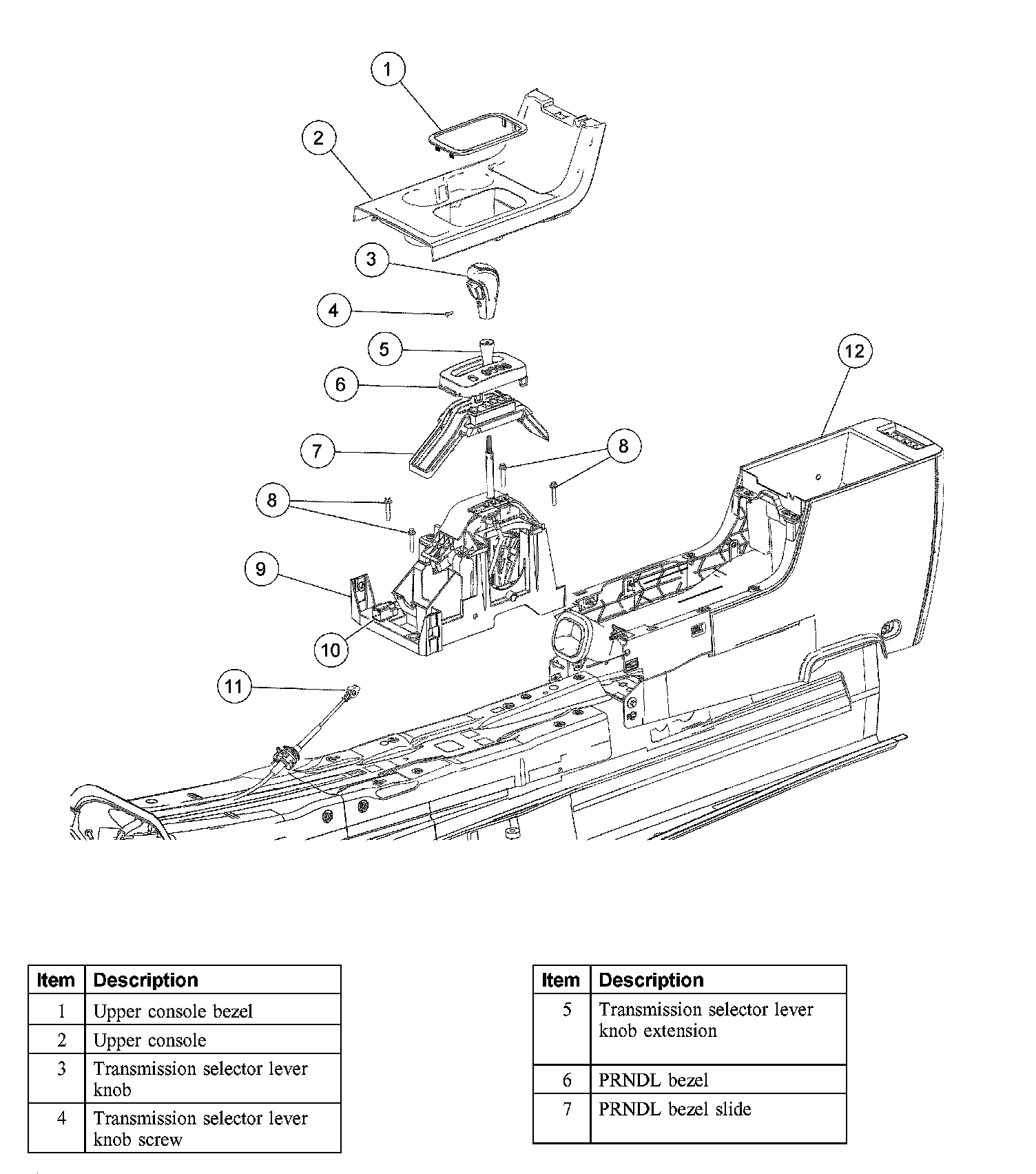

External Controls-Floor Shift

The transaxle shift control linkage consists of:
^ a shift cable that connects the transaxle range selector lever to the floor shifter assembly.
^ a brake shift interlock actuator that is integral to the floor shifter assembly.

The floor shifter assembly:
^ locks the transaxle range selector lever in the PARK position when the ignition switch is in the LOCK position.
^ requires the transaxle range selector lever to be in the PARK position to turn the ignition switch to the LOCK position.
