Home
>>
Mercury
>>
2005
>>
Montego 2WD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>

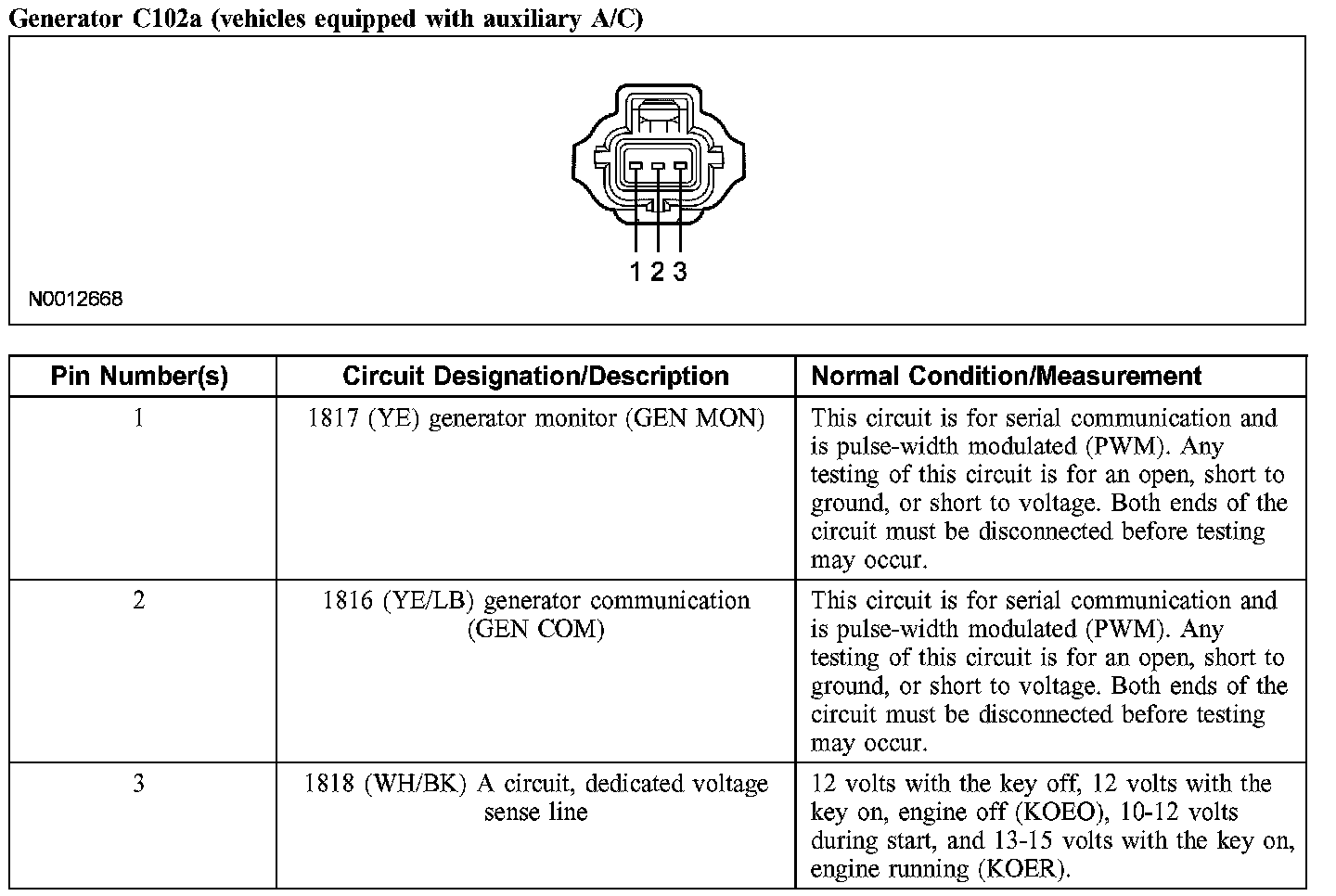

Generator C102a (Vehicles Equipped With Auxiliary A/C)
Generator C102a (Vehicles Equipped With Auxiliary A/C)
Generator C102a (vehicles Equipped With Auxiliary A/C):
