Transmission Mode Switch: Service and Repair

Selector Lever Knob

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.

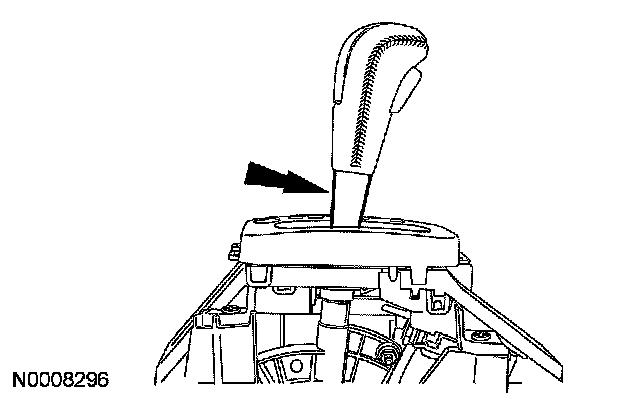

2. Slide the lower shift knob bezel downward.

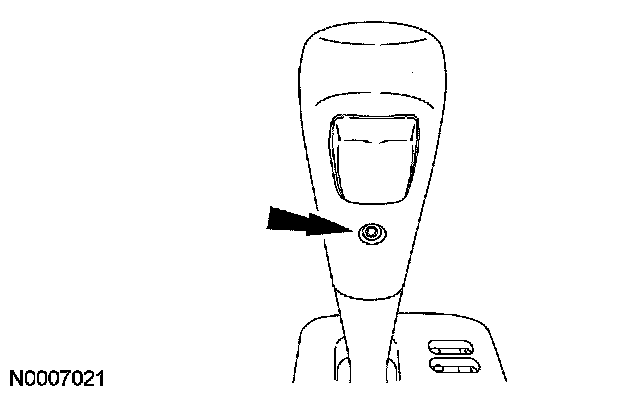

3. Remove the bolt and lift up on the shift knob to remove.

Installation





1. Install the shift knob and bolt.
^ Tighten to 10 Nm (89 inch lbs.).

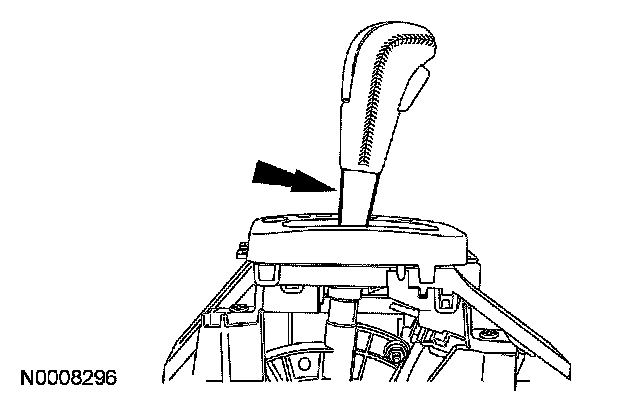

2. Slide the lower shift knob bezel up and snap it into place.
