Home >> Mercury >> 2005 >> Montego 2WD V6-3.0L VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> Connector Circuit Reference >> Dual Automatic Temperature Control (DATC) Module C228a

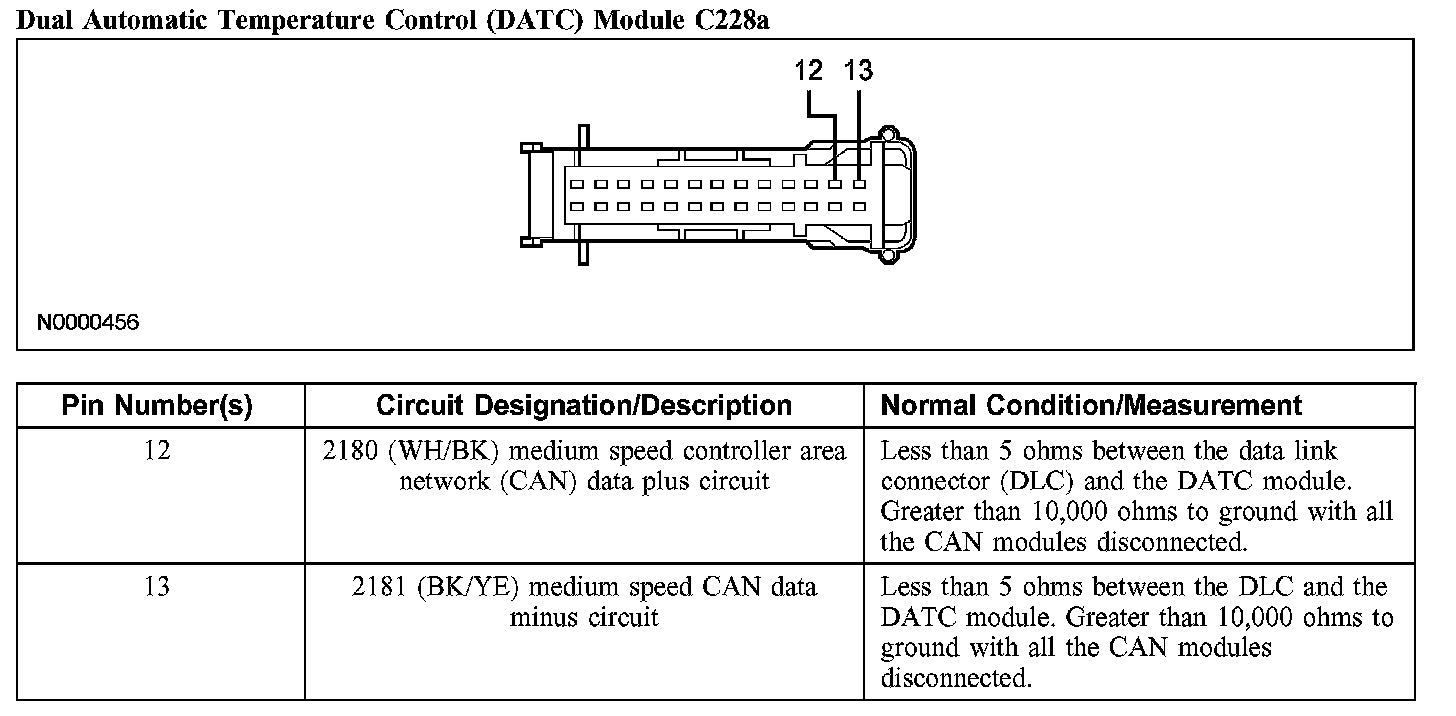

Dual Automatic Temperature Control (DATC) Module C228a

Dual Automatic Temperature Control (DATC) Module C228a:
