Home >> Mercury >> 2005 >> Montego 2WD V6-3.0L VIN 1 >> Repair and Diagnosis >> Lighting and Horns >> Parking Lamp >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> LH Front Parking/Turn Lamp C1023

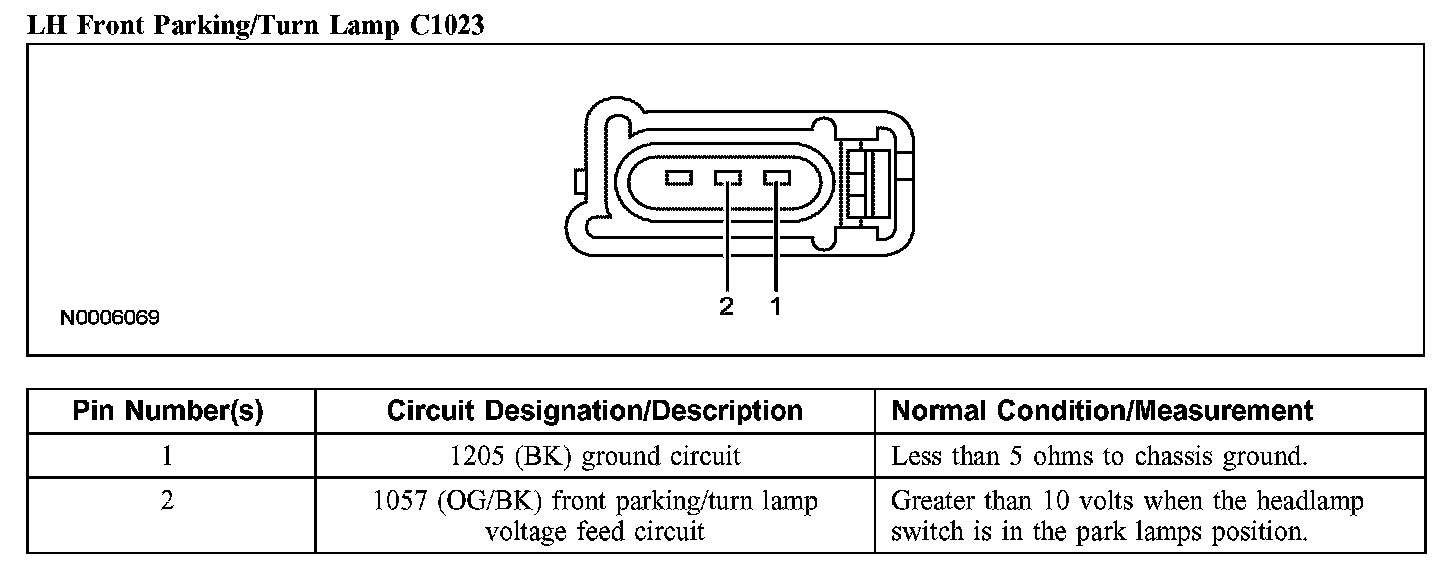

LH Front Parking/Turn Lamp C1023

LH Front Parking/Turn Lamp C1023:
