Connector Circuit Reference
>>
Adjustable Pedal Switch
>>
(Vehicles Built Before 1/2005)
(Vehicles Built Before 1/2005)

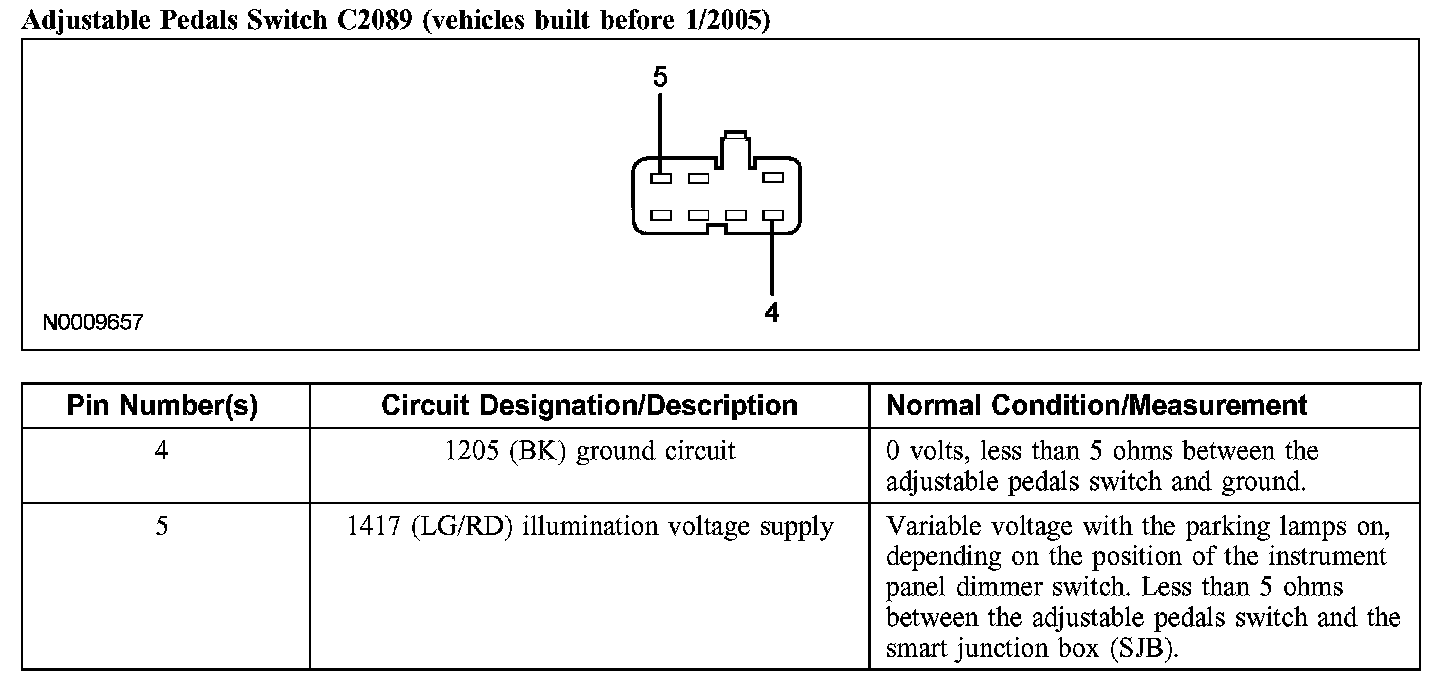

Adjustable Pedals Switch C2089 (Vehicles Built Before 1/2005):
