Home >> Mercury >> 2005 >> Montego 2WD V6-3.0L VIN 1 >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Trouble Code Diagnostic Charts - Instrument Cluster >> Instrument Cluster Diagnostic Trouble Code (DTC) Index

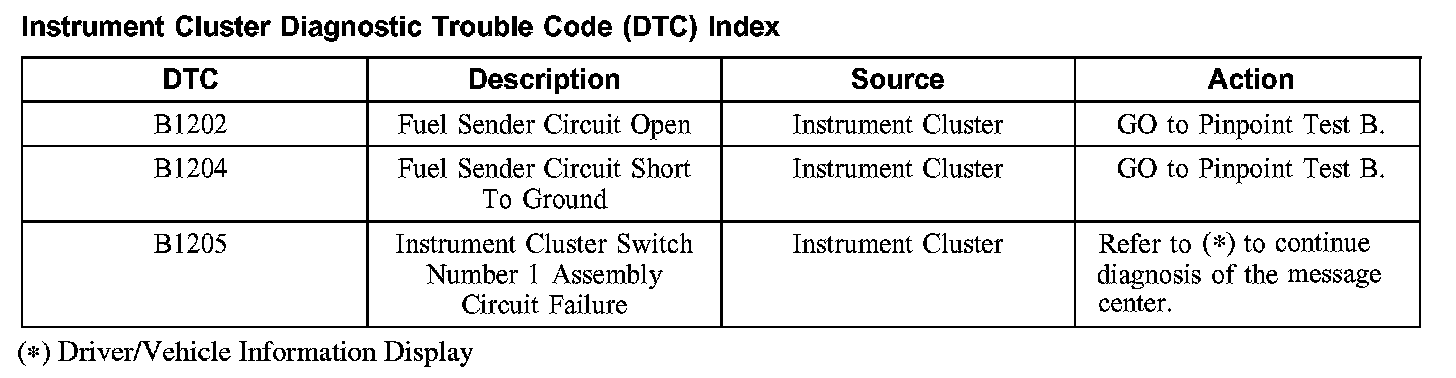

Instrument Cluster Diagnostic Trouble Code (DTC) Index

B1202-B1205:

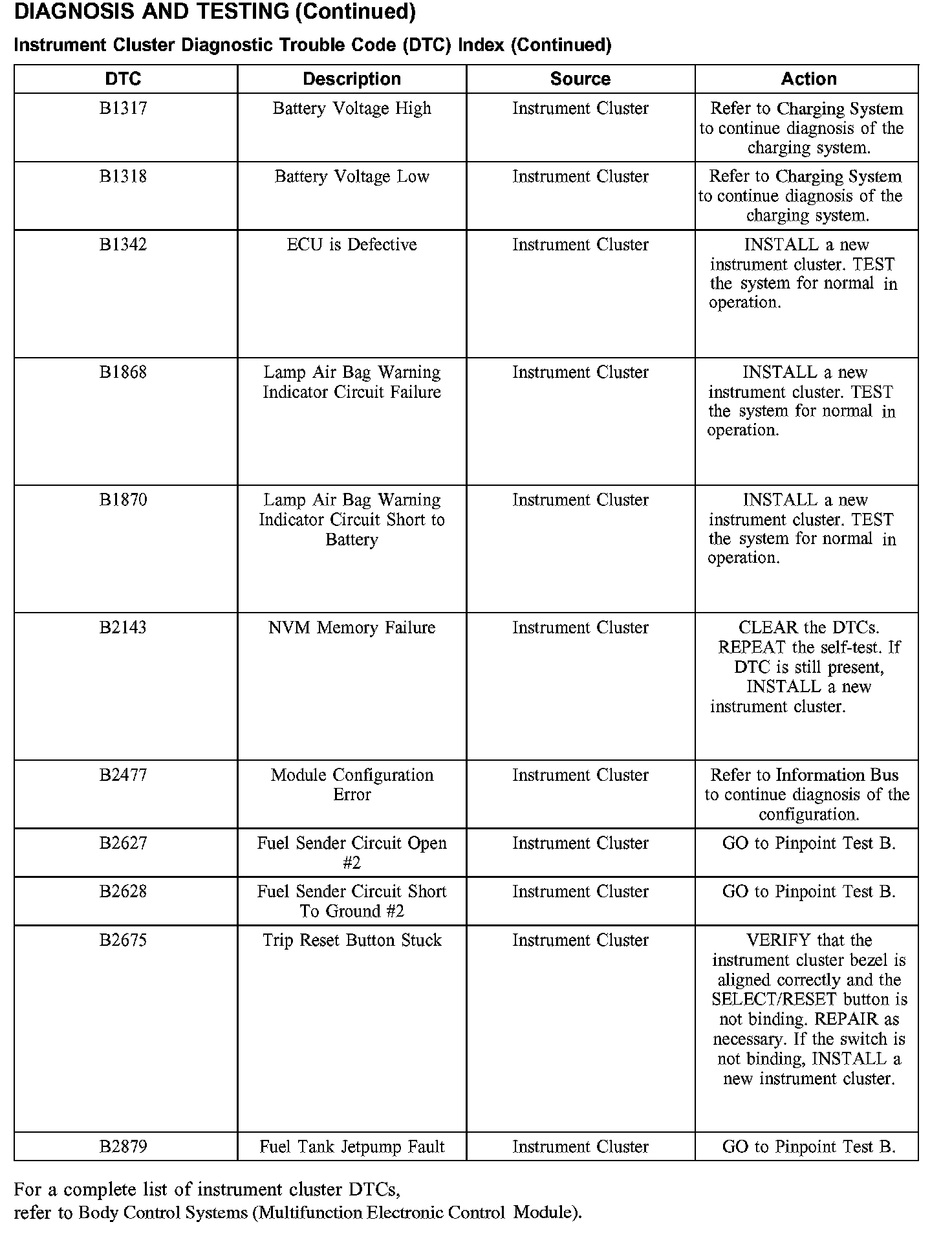

B1317-B2879:
