Conventional

INSTRUMENT CLUSTER







Removal and Installation

1. NOTE: Prior to removal of the instrument cluster, it is necessary to upload the instrument cluster configuration information to the diagnostic tool.

Depower the supplemental restraint system (SRS).

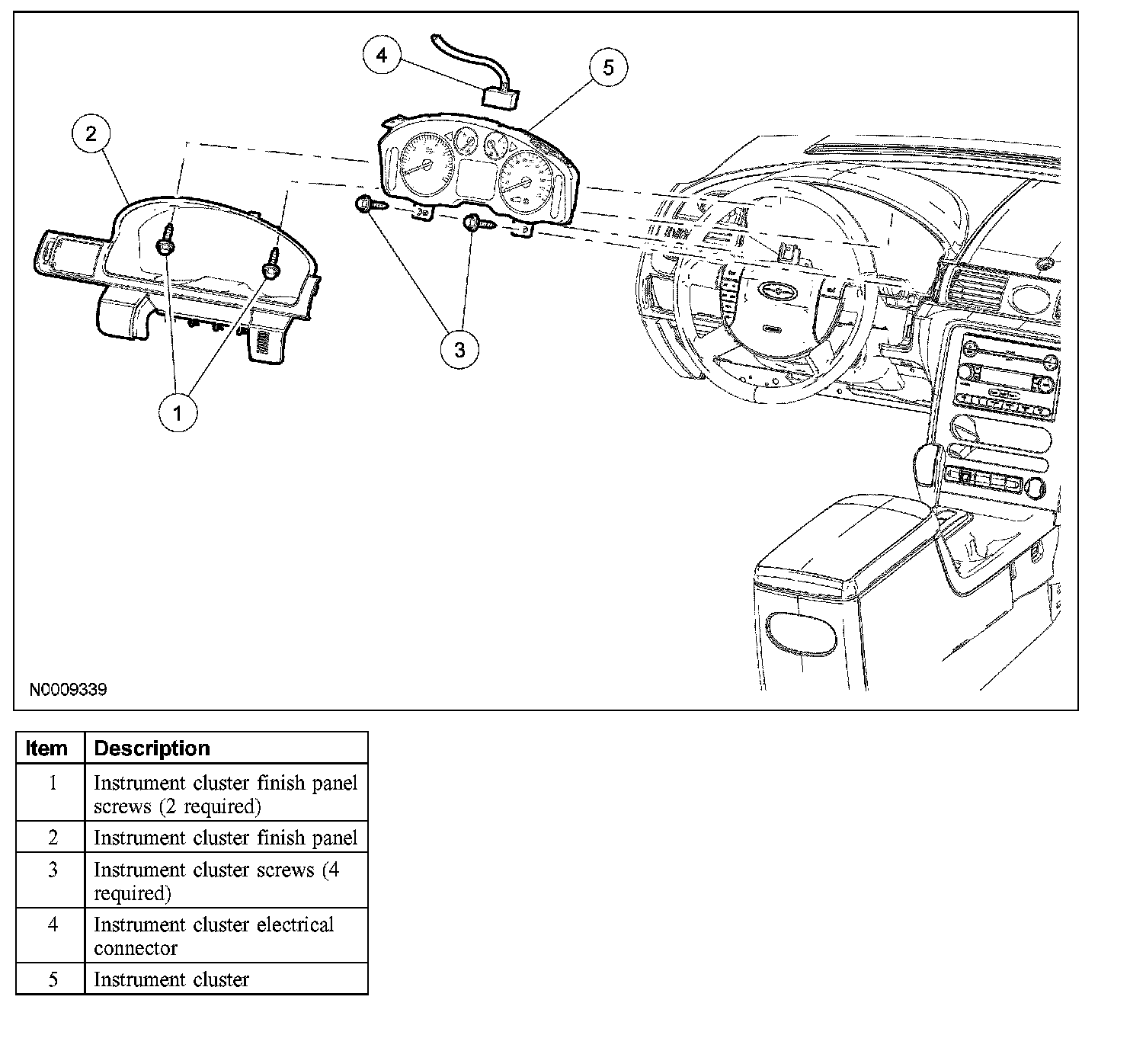

2. Remove the 2 screws and the instrument cluster finish panel.
3. Remove the 4 screws and the instrument cluster.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
- Download the instrument cluster configuration information from the diagnostic tool into the new instrument cluster.
