Home >> Mercury >> 2005 >> Montego 2WD V6-3.0L VIN 1 >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Blower Motor C2004

Blower Motor C2004

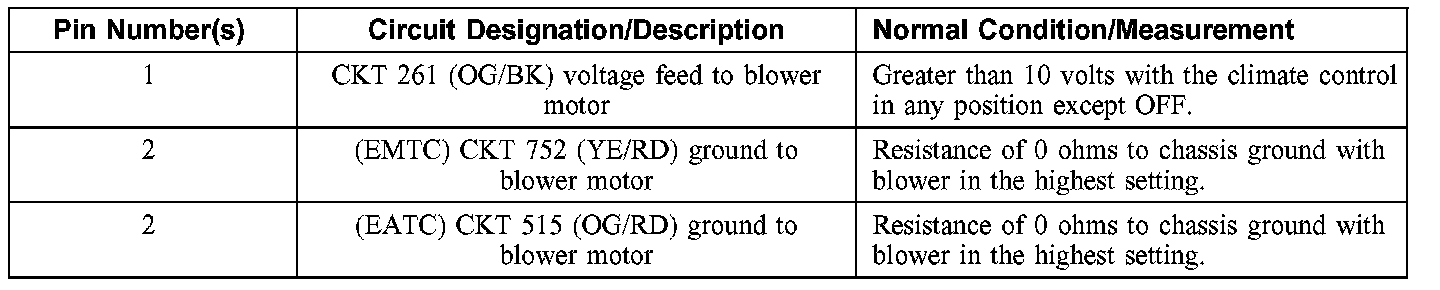

Blower Motor C2004 (Part 1):



Blower Motor C2004 (Part 2):
